1990-1993 Acura Integra / 1988-1991 Honda Civic CR-X Radium Fuel Pump Hanger

Radium Fuel Pump Hanger. Fitment: 1990-1993 Acura Integra / 1988-1991 Honda Civic CR-X. Available part numbers: 20-1792, 20-1790.

Choose Your Version

• Fits Walbro GSS342 / AEM 50-1200 (20-1790): also suits AEM 50-1000, 50-1220, 50-1230, and 50-1235
• Fits Walbro F90000267 / 274 / 285 or brushless (20-1792): also suits F90000295, Ti Automotive E5LM, Protec 11928, Fuelab 49614, Deatschwerks DW440 and DW810

Features

• Anodized aluminum, drop-in replacement for the stock pump assembly
• 8AN ORB (3/4in-16) female pump outlet with preinstalled 6AN male fitting
• 6AN ORB (9/16in-18) female return inlet with 6AN male fitting
• All fittings machined low to clear the trunk sheet metal
• Anti-rotation stainless electrical studs, hermetically sealed and high current rated
• Non-conductive anodized acorn nuts, ETFE insulated in-tank wiring
• Fuel pump filter sock included for Walbro pumps

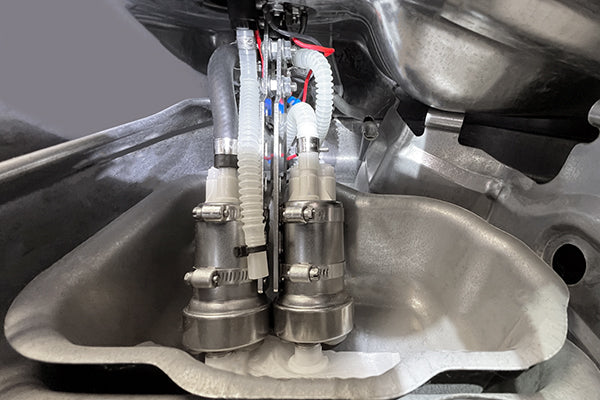

• Capable of two pumps with the matching add-on

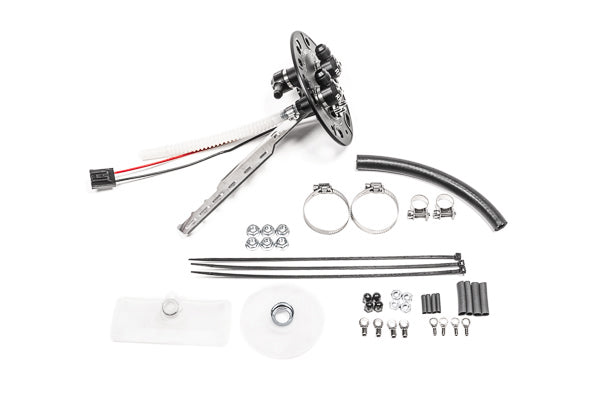

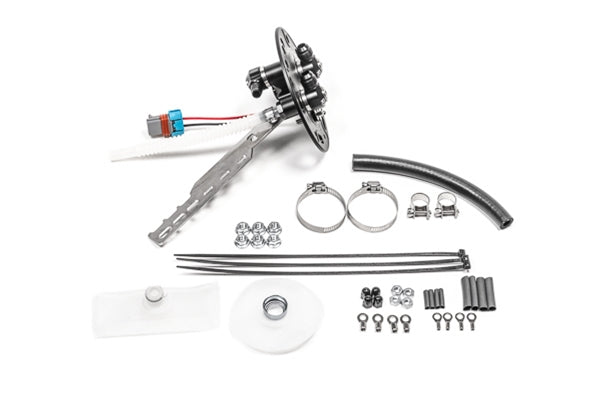

Kit Includes

• Partially assembled fuel pump hanger
• All hardware to install 1 fuel pump, including filter sock for Walbro pumps
• Electrical parts kit for external wiring at the top hat
• NOT included: fuel pump, dual pump add-on, and connection kit

Applications

• 1990-1993 Acura Integra, all models, trims, RHD and LHD
• 1988-1991 Honda Civic, all models, trims, RHD and LHD
• 1988-1991 Honda CR-X, all models, trims, RHD and LHD

Important Notes

• Brushless pump installs cannot use the dual pump add-on due to the extra controller wiring
• AEM 50-1230, AEM 50-1235, Walbro F90000295, and Ti Automotive E5LM have no integrated check valve
• Fuel pump sold separately
