1990-2005 Acura NSX Radium Fuel Pump Hanger

Radium Fuel Pump Hanger. Fitment: 1990-2005 Acura NSX. Available part numbers: 20-2790, 20-2792.

Choose Your Version

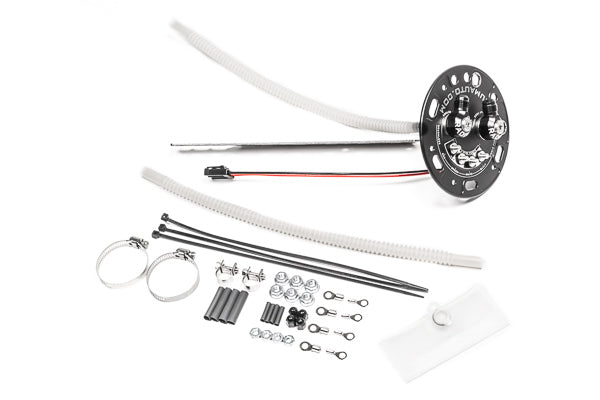

• Fits Walbro GSS342 / AEM 50-1200 (20-2790): the brushed pump package, also suiting pumps of the same physical shape and electrical connector

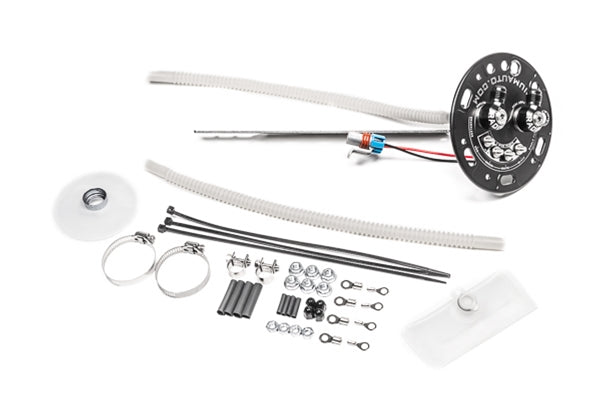

• Fits Walbro F90000267 / 274 / 285 or brushless (20-2792): the high flow and brushless package

Features

• Drop-in replacement for the stock fuel pump assembly
• Anti-rotation stainless steel electrical studs, hermetically sealed against all standard and exotic fuels
• Non-conductive anodized aluminum acorn nuts preventing accidental shorts
• ETFE insulated in-tank wiring
• Anodized aluminum construction
• Gasoline, methanol, and E85 compliant

Kit Includes

• Partially assembled fuel pump hanger
• Hardware to install one fuel pump
• Electrical parts kit for wiring at the top hat
• NOT included: fuel pump, dual pump add-on, and connection kit

Applications

• 1990-2005 Acura NSX

Important Notes

• Brushless pump installs cannot use the dual pump add-on due to the extra controller wiring
• The Walbro F90000295 and Ti Automotive E5LM do not have integrated check valves; AEM 50-1230 and 50-1235 likewise. Add a check valve if running a return style system where pressure must hold after shutdown.
• Fuel pump sold separately; some assembly required
