1993-1997 Honda Del Sol Radium Fuel Pump Hanger

Radium Fuel Pump Hanger. Fitment: 1993-1997 Honda Del Sol. Available part numbers: 20-3792, 20-3790.

Choose Your Version

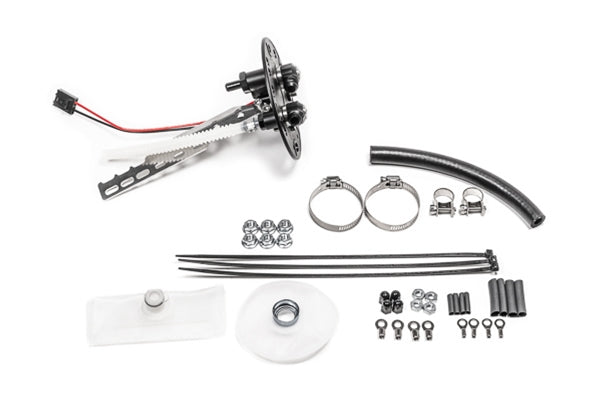

• Fits Walbro GSS342 / AEM 50-1200 (20-3790): also suits AEM 50-1000, 50-1220, 50-1230, and 50-1235

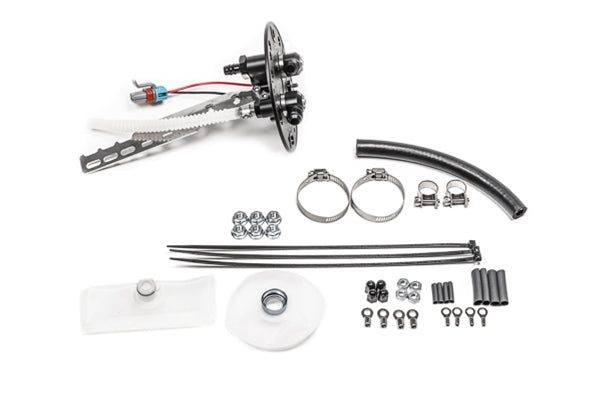

• Fits Walbro F90000267 / 274 / 285 or brushless (20-3792): also suits F90000295, Ti Automotive E5LM, Protec 11928, Fuelab 49614, Deatschwerks DW440 and DW810

Features

• Billet anodized aluminum, replacing the plastic OEM hanger entirely
• 8AN ORB (3/4in-16) female feed port with preinstalled 6AN male fitting
• 6AN ORB (9/16in-18) female return port with 6AN male fitting
• Fittings machined low enough to clear the fuel pump access cover
• Anti-rotation stainless steel electrical studs, hermetically sealed and high current rated
• Non-conductive anodized acorn nuts preventing accidental shorts
• ETFE insulated in-tank wiring, chemically resistant to gasoline, E85, and methanol
• Pump strainers, clamps, and stainless hardware included

Kit Includes

• Billet fuel pump hanger with preinstalled 6AN male fittings on both ports
• Fuel pump strainers, rubber hose, worm gear and small hose clamps
• Electrical eyelets, connection caps, heat shrink, flanged hex nuts, and zip ties
• NOT included: fuel pump, dual pump add-on, and connection kit

Applications

• 1993-1997 Honda Civic Del Sol, all trims

Important Notes

• Brushless pump installs cannot use the dual pump add-on due to the extra controller wiring
• AEM 50-1230, AEM 50-1235, Walbro F90000295, and Ti Automotive E5LM have no integrated check valve
• Fuel pump sold separately
