1993-1998 Toyota Supra Radium Fuel Hanger

Radium Engineering Fuel Hanger. Fitment: 1993-1998 Toyota Supra. Available part numbers: 20-1510, 20-1511, 20-1512.

Choose Your Version

• Fits Walbro GSS342 / AEM 50-1200 (20-1510): the brushed-pump hanger, 1 to 3 pumps
• Fits Ti Automotive E5LM Brushless (20-1511): built for the E5LM brushless pump, maximum of 2 due to pump height, and includes check valves for the pump outlets
• Fits Walbro F90000267 / 274 / 285 (20-1512): for the Walbro DCSS 39/50 pumps, 1 to 3 pumps

Features

• Drop-in fuel hanger for the 1993-1998 Toyota Supra MK4 (JZA80, all models)
• Accommodates up to 3 fuel pumps, or up to 2 Ti Automotive E5LM brushless pumps
• 10AN ORB feed port with low profile 8AN male fitting; 8AN ORB return port with low profile 6AN male fitting
• Pump outlets merge into a single 10AN billet collector
• Redesigned venturi siphon jet pump, consuming 15 to 45 LPH depending on fuel pressure
• Stainless steel triple pump mesh strainer for pump inlet filtration
• Barb fittings included to reconnect the OEM return and vent hoses
• Anodized aluminum, stainless electrical studs, ETFE insulated wiring
• Gasoline, E85, and methanol compliant; pumps NOT included

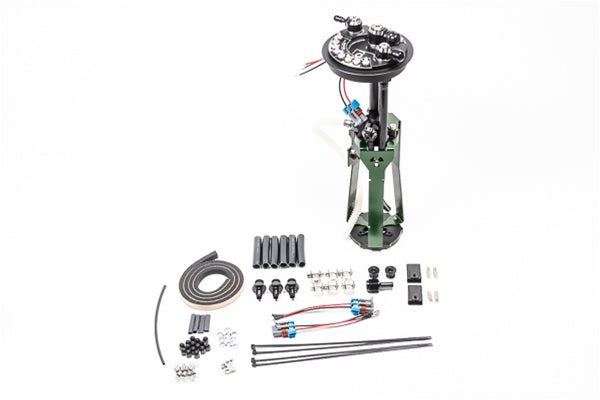

Kit Includes

• 1x MK4 Supra fuel hanger with electrical hardware
• 8AN male fitting for pump outlet and 6AN male fitting for aftermarket return
• 8.5mm barb hose end for OEM return, 6.5mm barb fitting for OEM vent
• OEM fuel sensor mount, venturi siphon jet pump, submersible tubing, stainless hardware, pump inlet filtration
• Fuel pumps NOT included

Applications

• 1993-1998 Toyota Supra MK4 (JZA80, all models)
• Pairs with the 20-0415 plumbing kits and 20-0215 2JZ rail
