1998-2005 Mazda MX-5 Miata NB Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: 1998-2005 Mazda MX-5 Miata NB. Available part numbers: 20-1338-FL, 20-1336-FL, 20-1337-FL.

Choose Your Kit

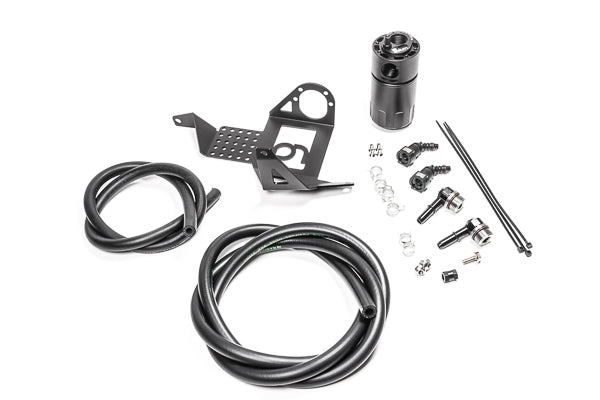

• PCV Catch Can Kit (20-1336-FL): the base kit, inline with the PCV valve, retaining factory function. Start here.

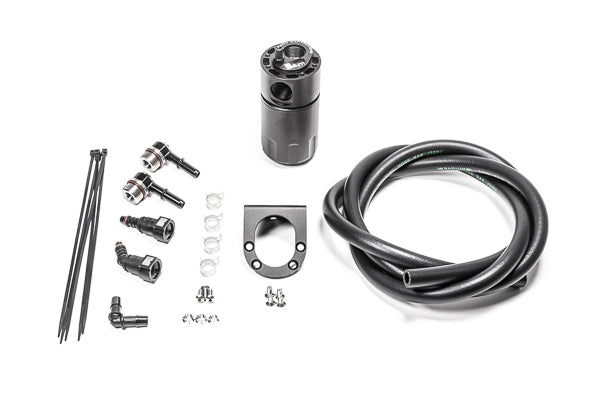

• CCV Catch Can Add-On (20-1337-FL): second can on the crankcase vent line. Requires the 20-1336-FL kit, since its bracket mounts to that kit's bracket.

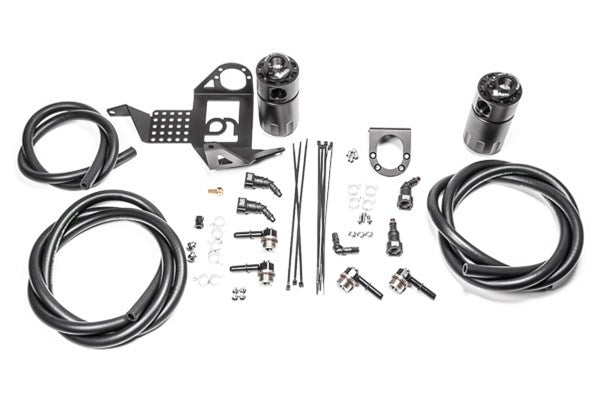

• Dual Catch Can Kit (20-1338-FL): both kits in one box, PCV and CCV together

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce baffled can with O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling with integrated condenser
• Anodized aluminum brackets mounting to OEM holes
• SAE quick connect hose ends and fittings, 3/8in PCV rubber hose, spring clamps
• LHD and RHD compatible

Kit Includes

• Baffled Fluid Lock oil catch can, or two cans on the dual kit
• Anodized aluminum mounting bracket(s)
• SAE quick connect hose ends and fittings
• 3/8in PCV rubber hose, spring clamps, and cable zip-ties
• Stainless mounting hardware

Applications

• 1998-2005 Mazda MX-5 Miata NB, LHD and RHD

Important Notes

• NOT compatible with the 1989-1997 MX-5 Miata NA or Eunos Roadster, because the flip-up headlight mechanism occupies the mounting space
• The 20-1337-FL CCV add-on cannot be installed without the 20-1336-FL PCV kit
