20-0010-01 Universal Radium Fuel Pressure Regulator W/ 4 Bar Bosch Reg

The Radium Engineering Fuel Pressure Regulator W/ 4 Bar Bosch Reg is a universal fitment component. Part number 20-0010-01.

Features

• Genuine Bosch 4.0 bar (58.2 psi) static regulator top, pre-installed; NOT adjustable
• Billet 6061 aluminum housing, laser etched and anodized; stainless snap retaining ring
• 2x 6AN ORB high pressure ports; integrated machined 6AN male return port; 1/8" NPT gauge port
• Includes 6AN male adapter fitting, 6AN ORB plug fitting, 1/8"-27 NPT port plug
• Anodized aluminum mounting bracket and stainless steel mounting hardware

Kit Includes

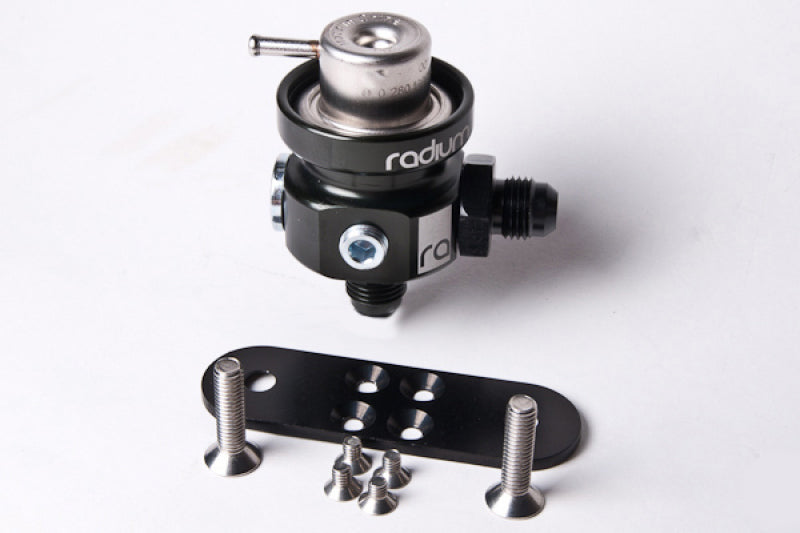

• 1x Billet aluminum FPR housing with genuine Bosch 4 bar regulator installed
• 1x 6AN male adapter fitting, 1x 6AN ORB plug fitting, 1x 1/8"-27 NPT port plug
• Anodized aluminum mounting bracket, stainless hardware, stainless snap ring

Applications

• Universal return-style fuel systems; 4 bar (58.2 psi) static base pressure
• Rated at 255lph pump flow; higher-flow pumps raise minimum pressure
• Housing-only version (20-0014) and alternate Bosch tops available separately
