20-0014 Universal Radium Fuel Pressure Regulator

$66.45
$69.95 $66.45
Save $3.50
Availability: In stock
SKU: 20-0014
Tags:
Collections:
Radium Engineering FPR housing only 20-0014 at Tuned By Shawn
$66.45
$69.95 $66.45

The Radium Engineering Fuel Pressure Regulator is a universal fitment component. Part number 20-0014.

Features

  • Billet 6061 aluminum FPR housing, laser etched and anodized; NO regulator top included
  • Accepts Bosch OEM-style regulator inserts (3.0/3.5/4.0 bar variants) and compatible aftermarket adjustable tops
  • 2x 6AN ORB high pressure ports; integrated machined 6AN male return; 1/8" NPT gauge port
  • Includes 6AN male adapter fitting, 6AN ORB plug, 1/8"-27 NPT plug, mounting bracket, stainless hardware, stainless snap ring

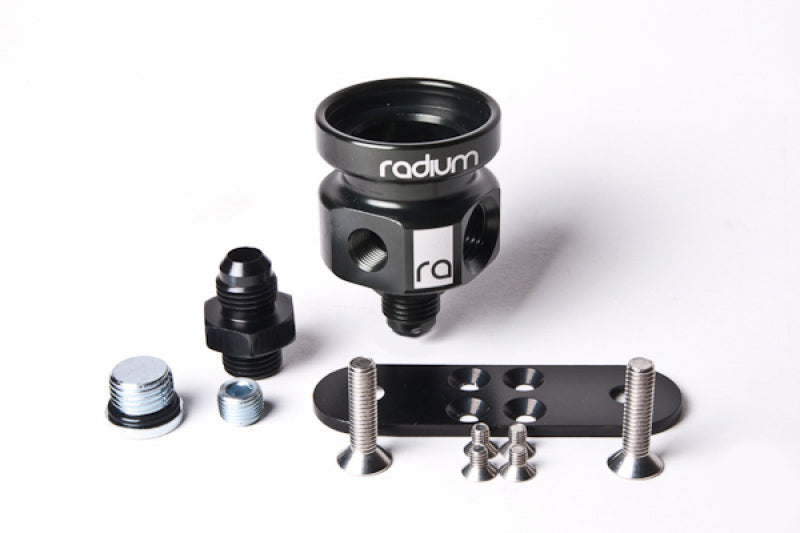

Kit Includes

  • 1x Billet aluminum FPR housing (no regulator top)
  • 1x 6AN male adapter fitting, 1x 6AN ORB plug fitting, 1x 1/8"-27 NPT port plug
  • Anodized aluminum mounting bracket, stainless hardware, stainless snap retaining ring

Applications

  • Universal return-style fuel systems; user-supplied Bosch or compatible regulator top
  • Pre-assembled versions: 20-0010-00 (3 bar), 20-0010-01 (4 bar)
