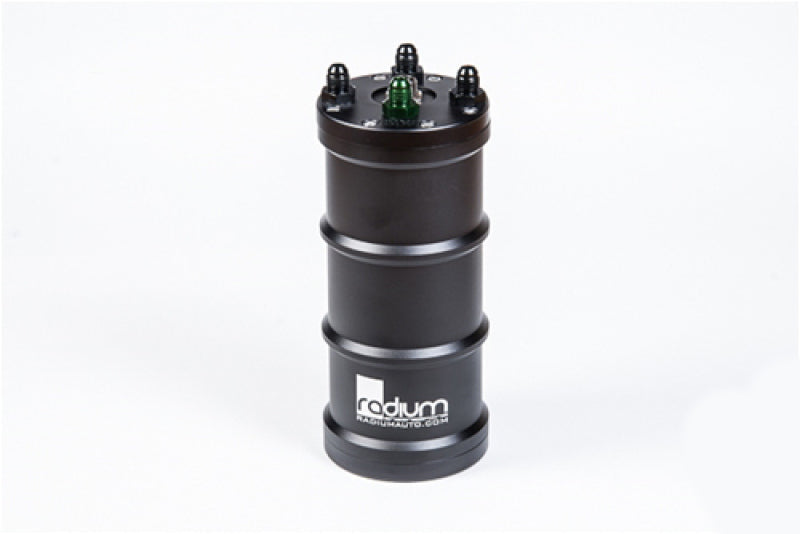

20-0081 Universal Radium Pumpless High Volume Fuel Surge Tank - 10AN Center Pick-Up

The Radium Pumpless High Volume Fuel Surge Tank - 10AN Center Pick-Up is a universal fitment component. Part number 20-0081.

Features

• Pumpless high volume FST with single 10AN center pick-up; for external pump systems
• Extruded and machined 6061 aluminum canister; removable O-ring sealed billet caps
• Anodized and laser engraved; stainless hardware; factory pressure tested before shipment
• No bulkhead wiring adapter; NOT for internal pumps
• Most effective mounted vertically, tippable up to 45 degrees; horizontal mounting not recommended as the pick-up may draw air pockets
• Lifetime warranty on all Radium components

Kit Includes

• 1x High volume pumpless FST with single 10AN center pick-up (20-0081)
• O-ring sealed billet caps, stainless hardware
• External pump and plumbing sold separately

Applications

• External fuel pump systems needing surge protection
• Vertical to 45 degree mounting only
