20-0111-02 2013-2021 Subaru BRZ / Scion FR-S Radium Fuel Rail Kit

The Radium Engineering Fuel Rail Kit fits 2013-2021 Subaru BRZ/Scion FR-S/Toyota 86. Part number 20-0111-02.

Features

• 2x identical fuel rails, 0.69" internal bore, anodized aluminum with mounting brackets
• End ports tapped 8AN ORB (3/4"-16); center port per rail tapped 6AN ORB (9/16"-18)
• Upgrade rail: OEM injectors reuse directly; upgrades must be OEM-equivalent in height and O-ring dimensions and styles
• Accepts Radium 8AN ORB direct mount regulators and fuel pulse dampers in the ports
• Rails and brackets only; fittings and adapters sold separately for custom plumbing
• All fuel types including E85

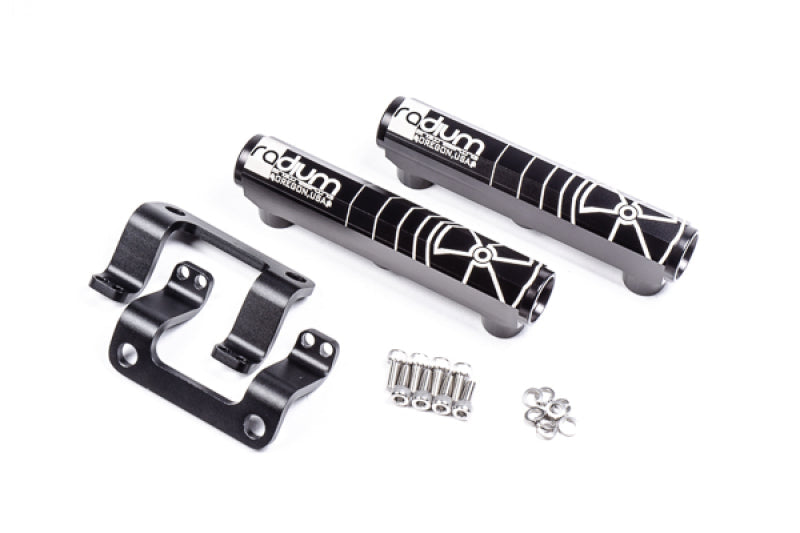

Kit Includes

• 2x Anodized aluminum fuel rails (left/right identical)
• 2x Mounting brackets
• Fittings, adapters, and plumbing kit (20-0111-PK) sold separately

Applications

• 2013-2021 Subaru BRZ, Scion FR-S, Toyota 86 (FA20)
• 2022+ Subaru BRZ and Toyota GR86 (FA24)
• OEM or OEM-equivalent injectors only; DI ECU mount applies to 12-21 cars only
