20-0199 Radium FPD-R Inline Fuel Pulse Damper Kit

The Radium FPD-R Inline Fuel Pulse Damper Kit. Part number 20-0199.

Features

• FPD-R damper: for systems with base static fuel pressure between 40 and 70 psi
• Anodized aluminum housing, 0.69" center bore, dual 3/4"-16 (8AN ORB) in-line ports
• 6AN male adapter fittings included, sealing on FKM O-rings; 8AN kit available separately
• 1/8" NPT female center port for a gauge or pressure/temperature sensor
• Vacuum/boost reference port maintains damper performance at elevated fuel pressures, essential with 1:1 rising rate regulators on boost
• Mounts at any angle via supplied M6 bolts/nuts; safe for all fuel types

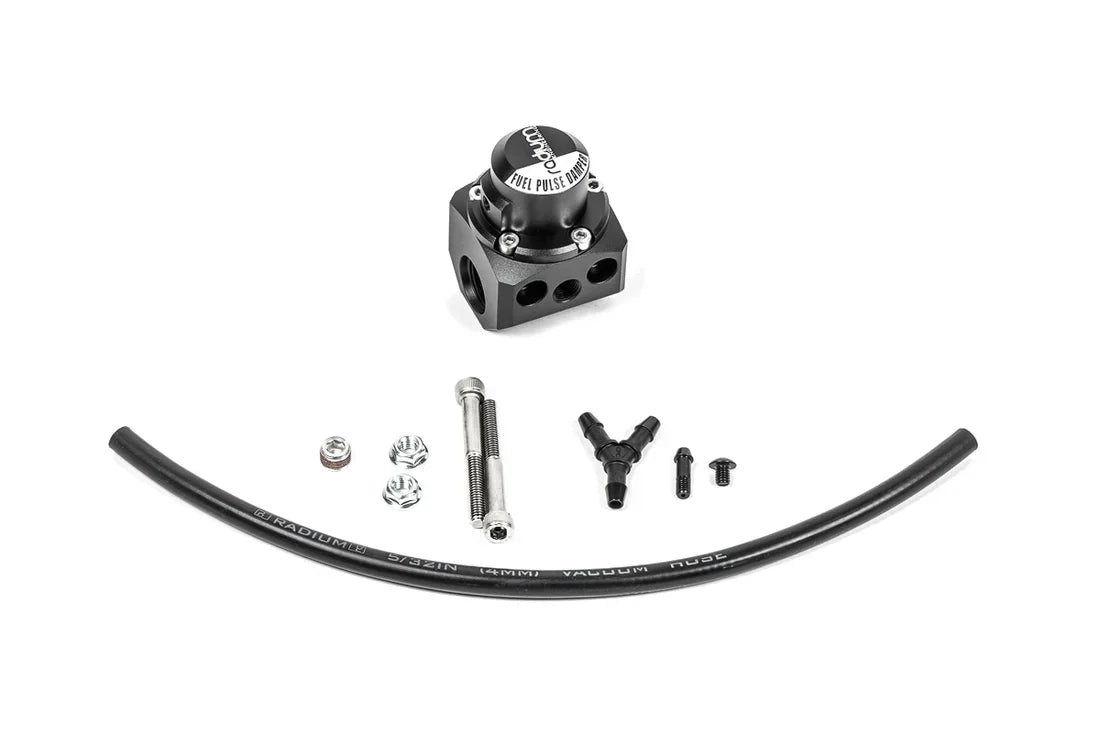

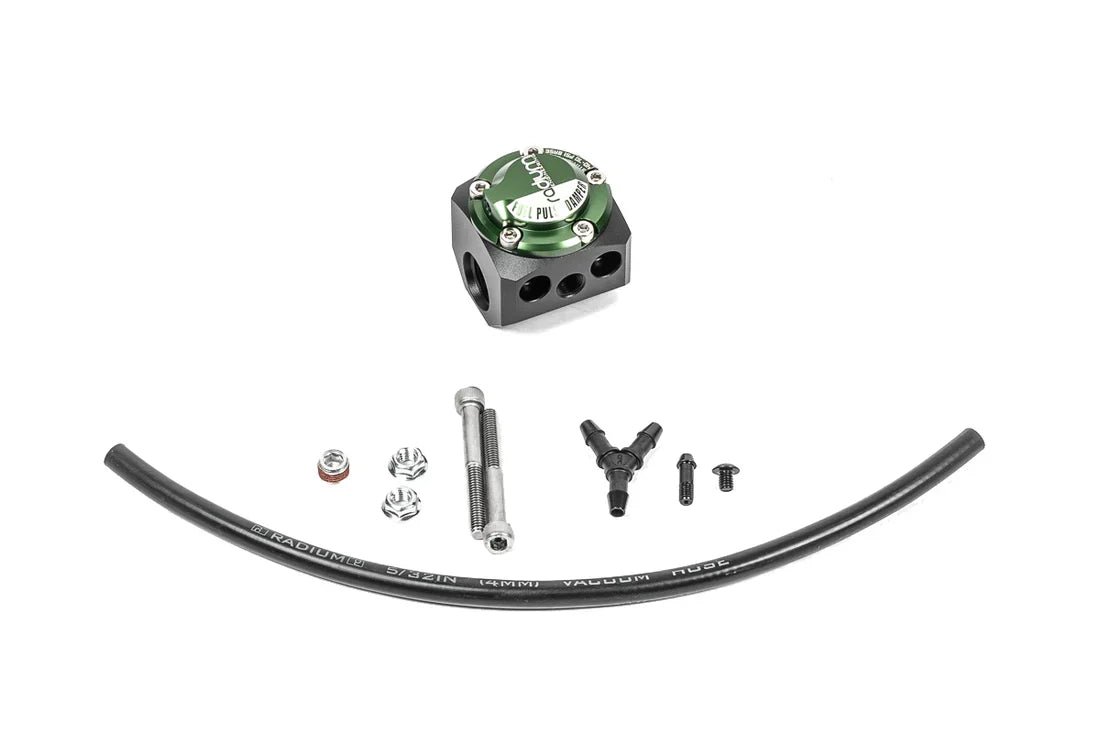

Kit Includes

• 1x FPD-R fuel pulse damper with anodized aluminum inline housing
• 2x 6AN male adapter fittings with FKM O-rings
• M6 mounting bolts and nuts

Applications

• Universal: EFI systems with 40-70 psi base static fuel pressure and 6AN feed plumbing
• Systems without a rail-mount damper option; boosted cars with 1:1 rising rate regulators (reference line required)
• All fuel types; not for mechanical pumps or direct injection high-pressure circuits
