20-0215 1992-2002 Toyota Supra Radium Top Feed Fuel Rail Kit

The Radium Engineering Top Feed Fuel Rail Kit fits 1992-2002 Toyota Supra. Part number 20-0215.

Features

• Compatible with all Toyota 2JZ-GTE engines (VVTi and non-VVTi) using the OEM intake manifold
• Converts OEM side feed injection to top feed; injectors NOT included, must have 14mm upper and lower O-rings
• 0.69" internal bore, CNC machined custom 6063 aluminum, media blasted, black anodized, laser etched
• All ports tapped 8AN ORB (3/4"-16 female)
• Two sets of black anodized mounting feet for 48mm or 34mm injector heights, reusing OEM Toyota thermal insulating spacers (90561-08009)
• 20-0216-06 press-fit billet injector seat kit included, O-ring sealed against boost leaks; all fuels including E85

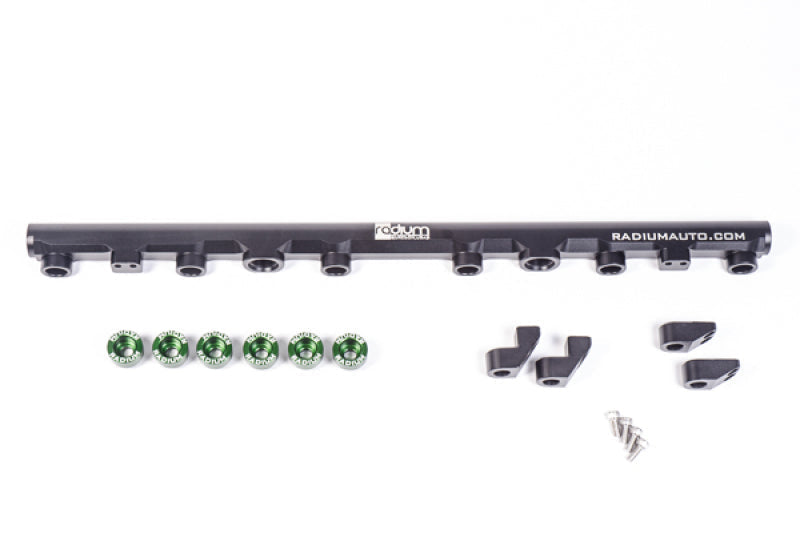

Kit Includes

• 1x Black anodized laser etched aluminum fuel rail
• Black anodized aluminum mounting feet, tall and short sets
• 4x Stainless steel mounting feet bolts
• 1x 20-0216-06 Toyota injector seat kit (6 cylinder) with O-rings
• Injectors, adapter fittings (20-0301, 14-0285), and plumbing NOT included

Applications

• 1992-2002 Toyota Supra JZA80 and all 2JZ-GTE engines (VVTi and non-VVTi) with the OEM intake manifold
• 2JZ-GTE swap applications retaining the factory manifold
• Injectors with 14mm upper and lower O-rings, 48mm or 34mm heights
