20-0220 Universal Radium High Flow Fuel Filter

The Radium High Flow Fuel Filter is a universal fitment component. Part number 20-0220.

Features

• 3-piece body CNC machined from 6061 aluminum, Type-II anodized for corrosion resistance
• Large 4.2" x 1.75" element with stainless internal core to prevent collapse at high flow
• Both removable end caps feature 10AN ORB female ports; end caps sealed with FKM O-rings
• Element options: 6 micron microglass (99.9% capture at 6 micron, replace at end of service), 10 micron stainless (cleanable, reusable), 100 micron stainless (cleanable, pre-pump duty)

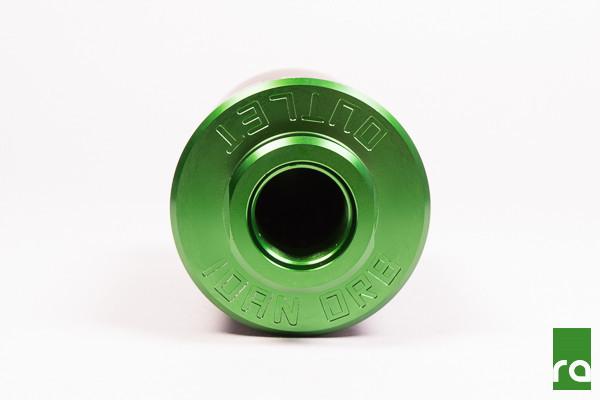

• 20-1220 check valve versions (silver outlet cap) hold system pressure after shutdown; 20-0220 versions have a green outlet cap
• Compatible with gasoline, diesel, ethanol, methanol, and E85; safe to 150 psi with negligible pressure drop

Kit Includes

• 1x Fuel filter, preassembled with selected element (6 micron microglass, 10 micron stainless, or 100 micron stainless)
• Integrated check valve on 20-1220 versions per selection

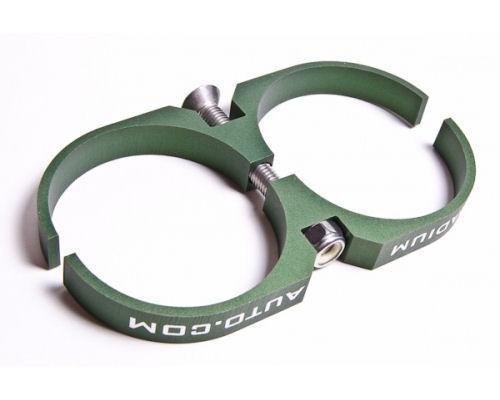

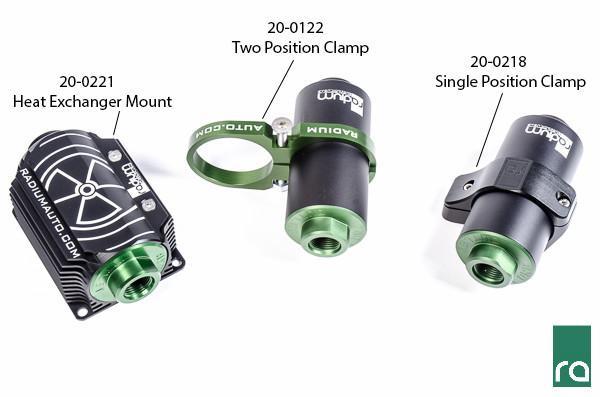

• Mounting clamps sold separately

Applications

• Universal: EFI and carbureted fuel systems up to 150 psi
• 10AN ORB ports accept Radium adapter fittings for AN, SAE, and barb connections (sold separately)
• Gasoline, diesel, ethanol, methanol, and E85 fuel systems
