20-0326 Multiple Fitments Radium Ecoboost Port Injection Kit

The Radium Ecoboost Port Injection Kit fits Multiple Fitments. Part number 20-0326.

Features

• 25mm thick CNC machined 6061 aluminum spacer plate, anodized, E85 resistant

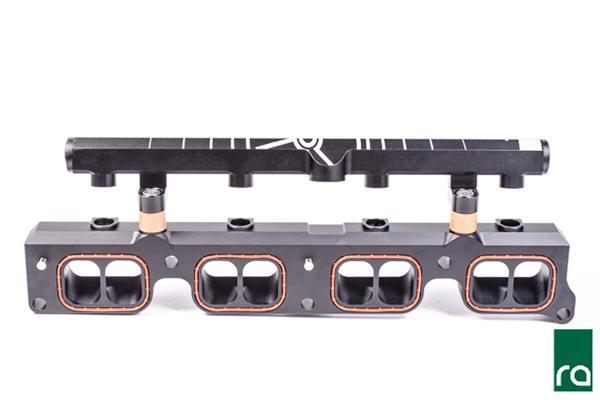

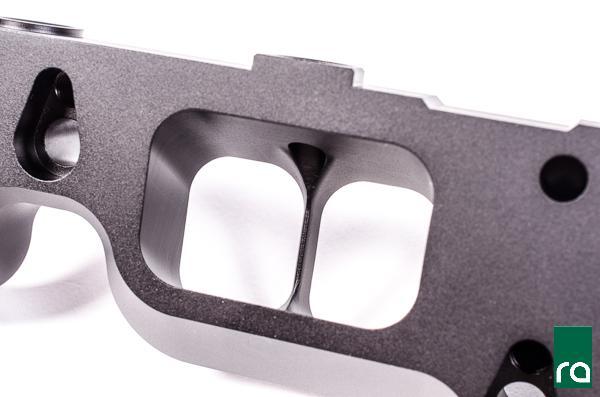

• Airflow passages CAD-matched to the intake ports and manifold; knife-edged port divider promotes laminar flow
• Injector ports strategically located and angled for optimal fuel delivery into the intake port

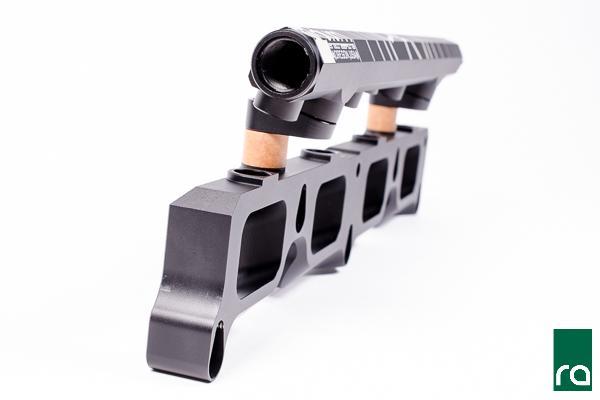

• Custom fuel rail: 0.69" internal bore, CNC machined extruded 6063 aluminum, laser etched, three 8AN ORB (3/4"-16) ports at ends and center
• Stainless steel alignment dowels pressed into the adapter plate ease installation; OEM Ford gaskets included
• Does NOT replace the OEM direct injection system; compatible with all fuels including E85

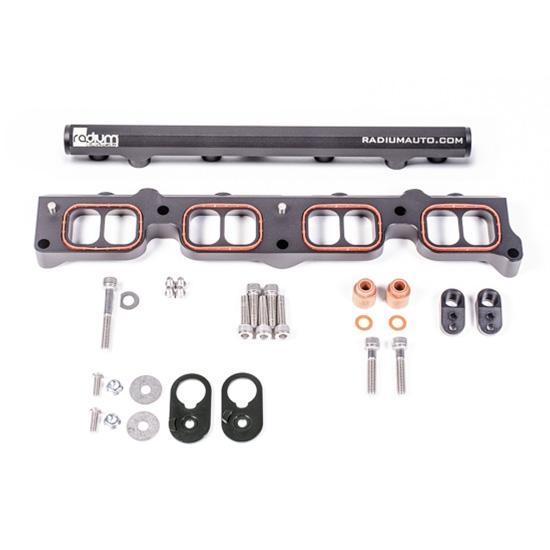

Kit Includes

• 1x PIK adapter plate with pressed stainless alignment dowels
• 1x Custom port injection fuel rail (3x 8AN ORB ports)
• Fuel rail mounting hardware
• OEM Ford gaskets
• Injectors, fittings, plumbing, and injection controller NOT included

Applications

• 2013+ Ford Focus ST (2.0L EcoBoost)
• 2016+ Ford Focus RS (2.3L EcoBoost)
• 2015+ Ford Mustang EcoBoost (2.3L)
• Supplements the OEM direct injection system; does not replace it
