By Radium Engineering
20-0359 Nissan S14/S15 SR20DET Radium Fuel Rail Kit
Regular price
$275.45
Regular price
$289.95
Sale price
$275.45
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-0359
Tags:
- 1995 Nissan 240SX,
- 1995 Nissan Silvia,
- 1996 Nissan 240SX,
- 1996 Nissan Silvia,
- 1997 Nissan 240SX,
- 1997 Nissan Silvia,
- 1998 Nissan 240SX,
- 1998 Nissan Silvia,
- 1999 Nissan Silvia,
- 2000 Nissan Silvia,
- 2001 Nissan Silvia,
- 2002 Nissan Silvia,
- flow-backfill,
- Fuel Rails,
- In Stock,
- MAP STRICT BRAND,
- Nissan,
- pp_discount,
- Radium Engineering
Collections:
Regular price
$275.45
Regular price
$289.95
Sale price
$275.45
The Radium Engineering Fuel Rail Kit fits Nissan S14/S15 SR20DET. Part number 20-0359.
Features

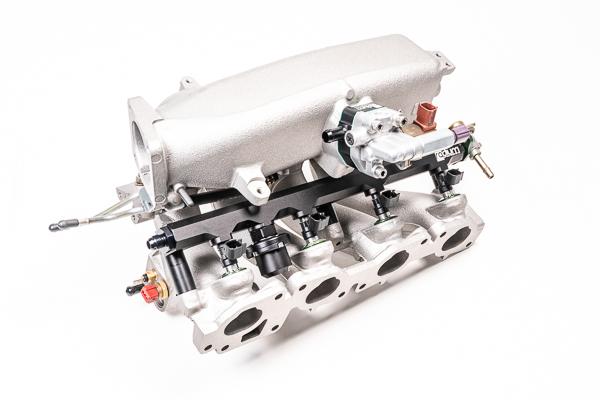

- Designed specifically for the SR20DET S14/S15 OEM intake manifold; converts side feed to top feed
- 0.69" internal bore, CNC machined solid 6061 aluminum, black anodized

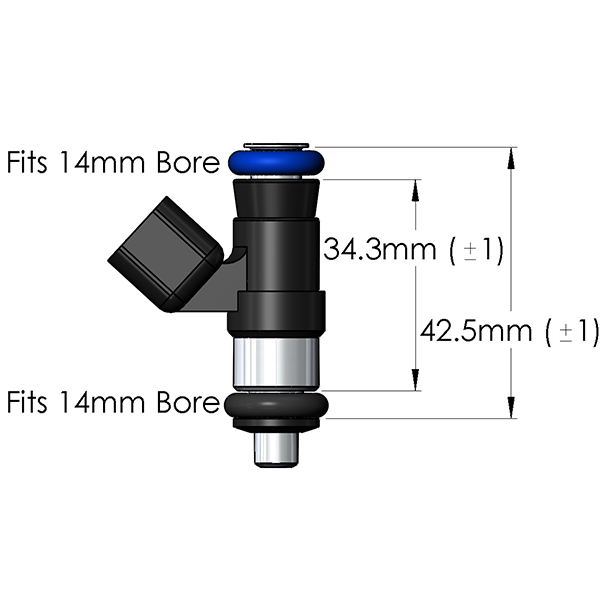

- 14mm ID injector bores; requires 34mm tall universal injectors with 14mm upper and lower O-rings (not included)
- 4x Radium 20-0161 green anodized 25mm billet injector seats, O-ring sealed, press into the manifold
- IACV solution included: 20-0162 black anodized spacer kit, 18-0014 gasket, barb adapter, hose, and OEM clamp reroute the charge pipe hose externally
- 3x phenolic spacers and washers, stainless M8x1.25 and M6x1 bolts; all fuels including E85; fittings NOT included

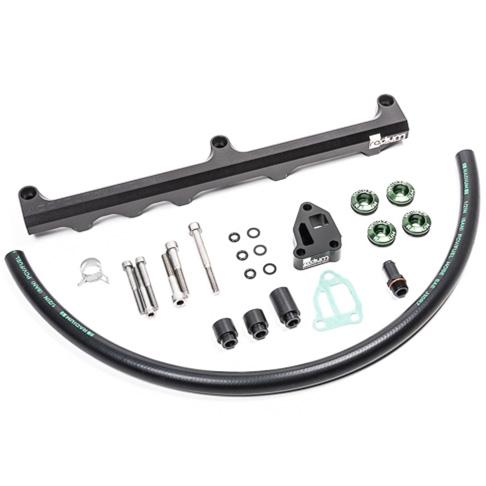

Kit Includes
- 1x Black anodized aluminum fuel rail
- 3x Phenolic mounting bolt spacers and 3x washers
- 4x Radium 20-0161 green anodized 25mm injector seats
- 1x Radium 20-0162 IACV spacer kit, 1x 18-0014 IACV gasket, IACV barb adapter, rubber hose, and OEM clamp
- 3x Stainless M8x1.25 and 3x M6x1 mounting bolts
- Injectors and port fittings NOT included
Applications
- 1995-2002 Nissan Silvia / 240SX S14 and S15 with SR20DET (OEM intake manifold)
- SR20DET swap applications using the S14/S15 manifold; S13 manifolds use Radium's separate S13 kit
- 34mm top feed injectors with 14mm upper and lower O-rings
