20-0362 2009-2015 Corvette ZR1 / Camaro ZL1 Radium Fuel Rails
Regular price
$427.45
Regular price
$449.95
Sale price
$427.45
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-0362
Tags:
- 2009 Cadillac CTS-V,
- 2009 Chevrolet Corvette,
- 2009 Chevrolet Corvette ZR1,
- 2010 Cadillac CTS-V,
- 2010 Chevrolet Corvette,
- 2010 Chevrolet Corvette ZR1,
- 2011 Cadillac CTS-V,
- 2011 Chevrolet Corvette,
- 2011 Chevrolet Corvette ZR1,
- 2012 Cadillac CTS-V,
- 2012 Chevrolet Camaro,
- 2012 Chevrolet Camaro ZL1,
- 2012 Chevrolet Corvette,
- 2012 Chevrolet Corvette ZR1,
- 2013 Cadillac CTS-V,
- 2013 Chevrolet Camaro,
- 2013 Chevrolet Camaro ZL1,
- 2013 Chevrolet Corvette,
- 2013 Chevrolet Corvette ZR1,
- 2014 Cadillac CTS-V,
- 2014 Chevrolet Camaro,
- 2014 Chevrolet Camaro ZL1,
- 2015 Cadillac CTS-V,
- 2015 Chevrolet Camaro,
- 2015 Chevrolet Camaro ZL1,
- 35kproject,
- Cadillac,
- Chevrolet,
- flow-backfill,
- Fuel Rails,
- Hidden recommendation,
- Radium Engineering
Collections:
Regular price
$427.45
Regular price
$449.95
Sale price
$427.45
The Radium Fuel Rails fits 2009-2015 Corvette ZR1/Camaro ZL1/Cadillac CTS-V. Part number 20-0362.
Features

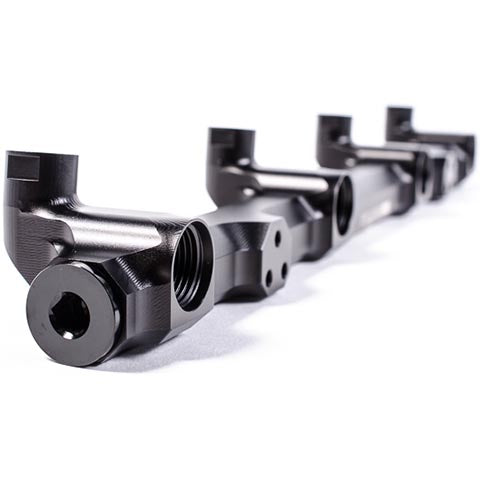

- 2x fuel rails CNC machined from 6061 aluminum, black anodized, laser etched
- Six 8AN ORB ports per rail (12 total) for optional adapters and accessories
- Polished stainless steel mounting feet attach to factory rail mounting points; no vehicle modifications
- 14mm ID injector bores compatible with factory injectors, with provisions for the factory injector clips
- Upgrade rail: OEM or OEM-equivalent injectors only (matching height and O-ring dimensions)
- 4x 8AN ORB plugs included for end ports blocked by nearby components; all fuel types including E85

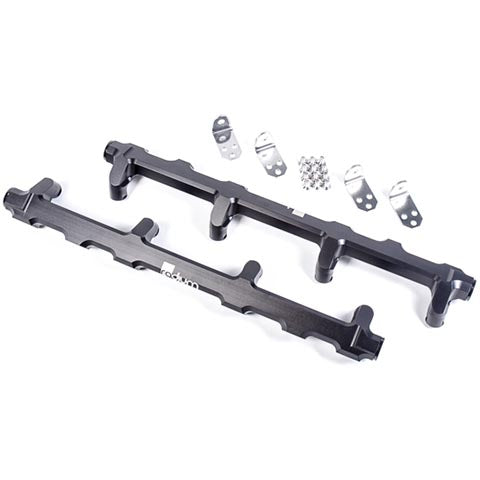

Kit Includes
- 2x Black anodized laser etched aluminum fuel rails
- 4x Fuel rail end fittings, 8AN ORB plugs
- 4x Stainless steel mounting feet
- 12x Stainless steel hardware
- Plumbing kit (20-0545) and additional adapter fittings sold separately
Applications
- 2009-2013 Chevrolet Corvette ZR1 (LS9)
- 2012-2015 Chevrolet Camaro ZL1 and 2009-2015 Cadillac CTS-V (LSA)
- 2013-2017 HSV GTS, Clubsport R8, Maloo R8, GTSR, GTSR Maloo, GTSR W1, Senator Signature; 2014+ Equus Bass 770
- Mock up rails before buying adapter fittings to verify port access
Complete the System
These rails are the engine-bay end of a full return-style conversion. Feeding them properly means addressing the tank too:
- Rail plumbing kit (20-0545): the plug and play way to feed both rails from the OEM feed line, with plugs for every unused ORB port
- Fuel hanger plumbing kit, CTS-V (20-1325-03 / 20-1325-05): converts a 2008-2015 CTS-V to a true return system feeding these rails, with the FPR on the LH rail and the feed on the RH rail. It requires these rails and the 20-0545 kit
- Fuel hanger plumbing kit, Camaro (20-1326-03 / 20-1326-05): the 2010-2015 Camaro equivalent, with feed and FPR on opposite rails from the CTS-V routing
- Fuel pump hanger, 08-17 GM cars (20-1320 / 20-1322): the in-tank half, supporting one to three aftermarket pumps
