20-0365 2013-2018 Ford Focus ST/RS Radium Fuel Surge Tank Install Kit

The Radium Fuel Surge Tank Install Kit fits 2013-2018 Ford Focus ST/RS. Part number 20-0365.

Features

• Comprehensive install kit for a Radium FST-R in the MK3 Focus (FST and pumps sold separately)

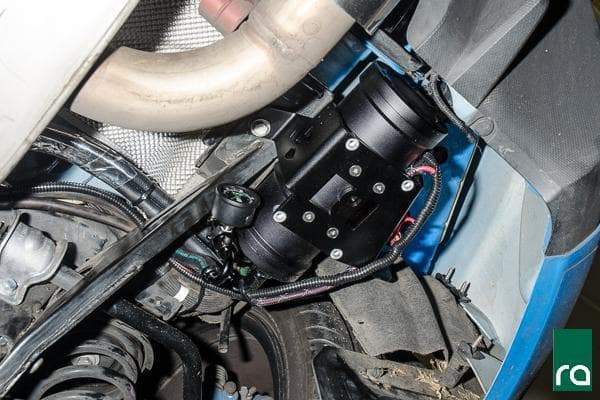

• Locates the FST under the vehicle, in front of the rear bumper support, collision-safe
• Surge pump feeds the OEM HPFP; OEM low pressure pump redirected to fill the FST

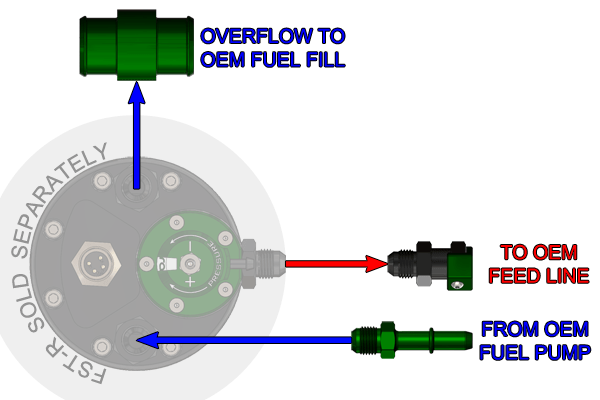

• Overflow returns into the OEM fuel filler hose via the included billet adapter
• Integrated FST-R regulator runs static or vacuum referenced (1:1)
• All installation, plumbing, and pump power components included

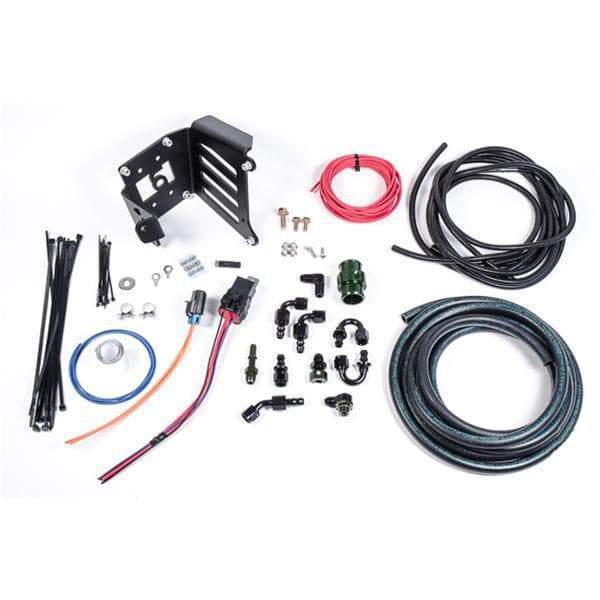

Kit Includes

• Complete mounting hardware for the under-vehicle FST-R location
• All plumbing components including the billet OEM filler hose return adapter

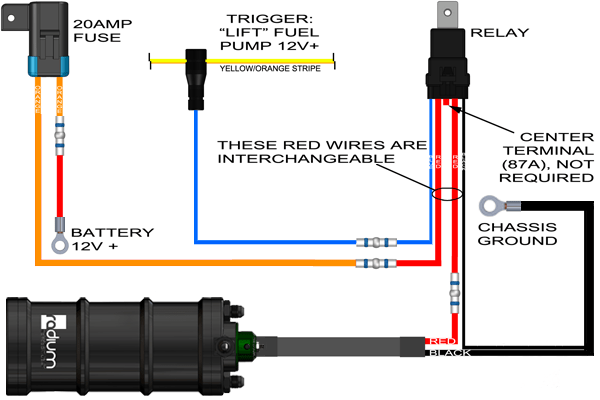

• Pump power wiring components
• Fuel surge tank and pumps NOT included, sold separately

Applications

• 2013-2018 Ford Focus ST (MK3)
• 2016-2018 Ford Focus RS (MK3)
• Pairs with Radium FST-R surge tanks; pressure adjustment via OBDII software or Radium 20-0152
