20-0376 2003-2006 Mitsubishi Evo 8/9 Radium Fuel Hanger Plumbing Kit

The Radium Fuel Hanger Plumbing Kit fits 2003-2006 Mitsubishi Evo 8/9. Part number 20-0376.

Features

• Connects the Radium Evo 7/8/9 fuel pump hanger to any fuel rail accepting an 8AN male hose and a 6AN male FPR, single or dual pump configurations
• Pre-made 8AN PTFE fuel feed hoses (x2) with in-line Radium high flow fuel filter
• Filter element options: 10 micron stainless (20-0376-03, cleanable) or 6 micron microglass (20-0376-05, replaceable)

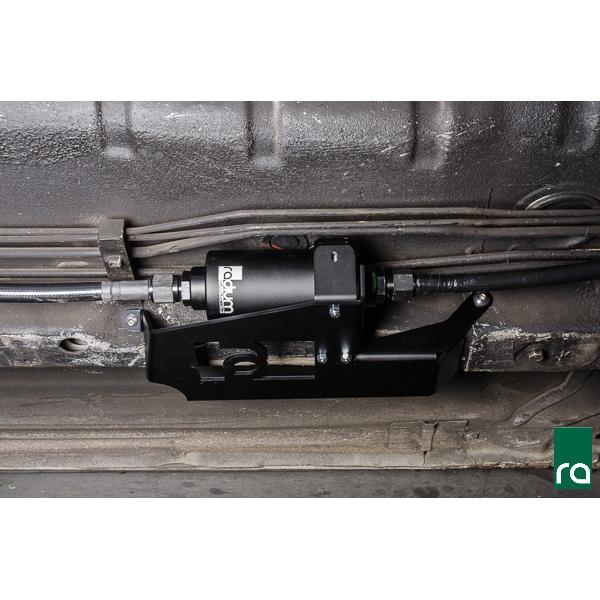

• Billet aluminum 60mm 2-piece filter clamp on an aluminum Evo 7-8-9 chassis bracket using existing mounting points
• Factory feed line re-used as the regulator return, with 6AN PTFE return replacement, EFI hose, 6AN ORB fitting, EFI clamp, and inverted flare adapter included
• Stainless steel hardware throughout; no cutting or drilling required

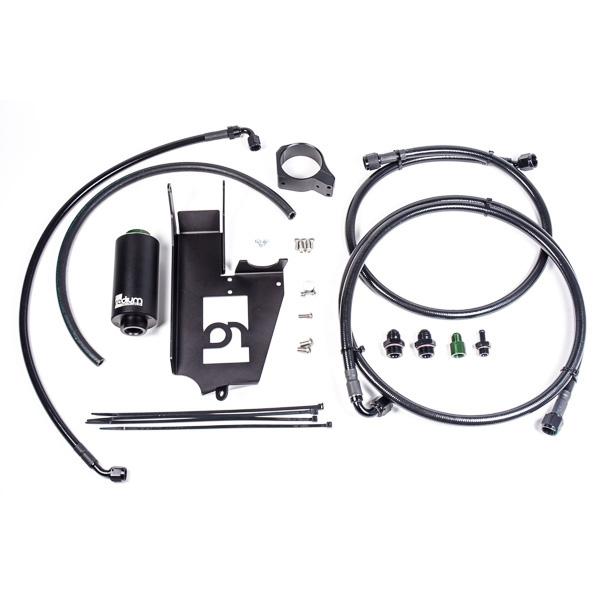

Kit Includes

• 1x Radium high flow fuel filter with selected element (stainless -03 or microglass -05)
• 2x Black 8AN male adapter fittings
• 1x Billet aluminum 60mm 2-piece filter clamp with aluminum Evo 7-8-9 filter bracket
• 2x 8AN PTFE fuel feed hose replacements
• 1x 6AN PTFE fuel return replacement
• EFI fuel hose, 6AN ORB fitting, and EFI clamp
• 1x Inverted flare to 6AN adapter fitting
• Stainless steel hardware

Applications

• 2001-2006 Mitsubishi Lancer Evolution 7, 8, and 9 with the Radium fuel pump hanger (sold separately)
• Requires a fuel rail accepting an 8AN male feed and an FPR accepting a 6AN male connection
