  3. 20-0499 2002-2014 Subaru WRX Radium Dual Port Injection Fuel Rails
By Radium Engineering

20-0499 2002-2014 Subaru WRX Radium Dual Port Injection Fuel Rails

$237.45
$249.95 $237.45
Save $12.50
Availability: In stock
SKU: 20-0499
Tags:
Collections:
Radium Engineering Subaru DPI dual port injection rails 20-0499 at Tuned By Shawn
$237.45
$249.95 $237.45

The Radium Engineering Dual Port Injection Fuel Rails fits 2002-2014 Subaru WRX. Part number 20-0499.

Features

  • DPI fuel rails for Radium 20-0489-00/-01 TGV housing kits ONLY; not compatible with other housings
  • 10AN ORB end ports; 8AN ORB top auxiliary ports; 4 injector ports per rail, 14mm O-ring machined
  • Primary lower injectors: OEM Subaru (with provided top hat over the upper O-ring) or 60mm Bosch EV14 style (with provided injector seat over the lower O-ring)
  • Secondary upper injectors: only 34mm Bosch EV14 style
  • Verified lower primaries: ID1050/1300/1700/2600-XDS-60-14-14; many owners already run ID WRX-fitment 48.11 injectors up top
  • All fuel types including E85; injectors NOT included

Kit Includes

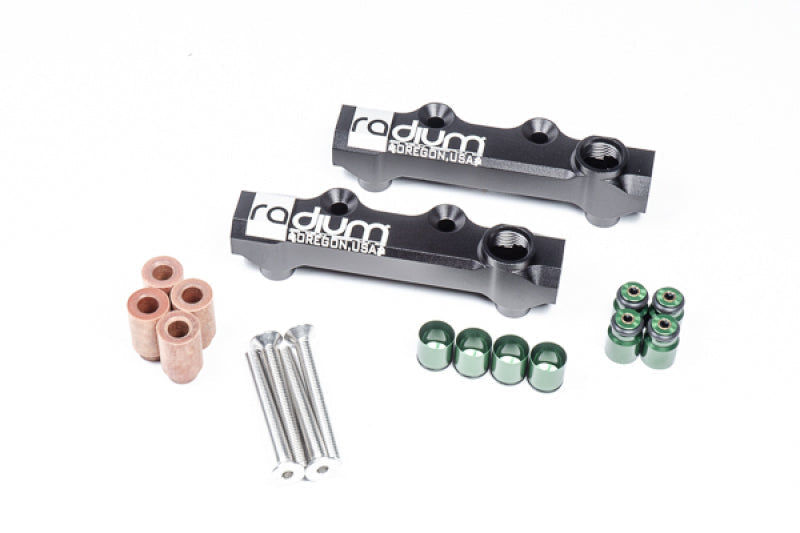

  • 2x CNC machined DPI fuel rails (4 injector ports each)
  • Injector top hats (OEM primary reuse) and injector seats (EV14 primary use)
  • Mounting hardware
  • TGV housings (20-0489-XX), injectors, and fittings NOT included

Applications

  • 2002-2014 Subaru WRX and EJ-family engines running Radium 20-0489-00/-01 TGV housings
  • Primaries: OEM Subaru or 60mm EV14; Secondaries: 34mm EV14 only
  • NOT compatible with Radium EJ series/parallel rail plumbing kits
