20-0533-02 Mitsubishi Early 4G63 Evo 1-3 / VR4 Radium Fuel Rail

The Radium Fuel Rail fits Mitsubishi Early 4G63 Evo 1-3 / VR4 / DSM. Part number 20-0533-02.

Features

• 0.69in internal bore, CNC machined 6061 aluminum, anodized and laser etched
• Four threaded ports tapped for 8AN ORB
• Eliminates the OEM 2-bolt inlet flange and its 0.22in (5.7mm) orifice
• Reuses the 3 OEM mounting spacers (Mitsubishi MD095402) for thermal insulation
• Thermal insulating washers and stainless steel mounting hardware included
• Mounting bosses mimic the factory rail for OEM cable brackets
• Compatible with all fuel types including E85

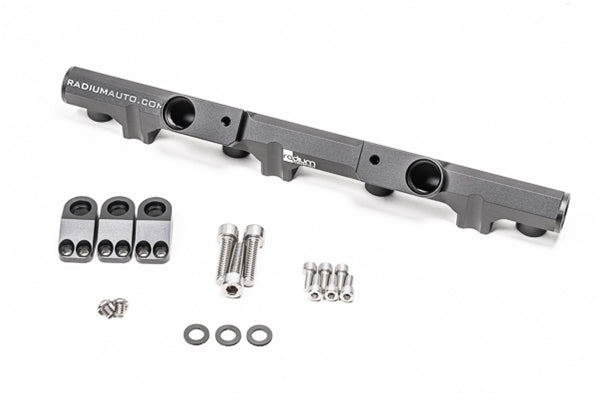

Kit Includes

• Anodized billet aluminum fuel rail
• Anodized aluminum fuel rail mounts
• Nylon thermal washers
• Stainless steel mounting hardware
• NOT included: AN fittings, fuel injectors, regulator, and gauge

Applications

• Mitsubishi Lancer Evolution I, II, and III (4G63)
• Mitsubishi Galant VR4 (4G63)
• Mitsubishi Eclipse, Plymouth Laser, and Eagle Talon DSM (4G63)

Important Notes

• Upgrade rail only; OEM or OEM equivalent injectors required, not a side feed to top feed conversion
• All fittings sold separately
