20-0565 2009-2019 Nissan R35 GT-R Radium Catch Can Kits

The Radium Engineering Catch Can Kits fits 2009-2019 Nissan R35 GT-R. Part number 20-0565.

Features

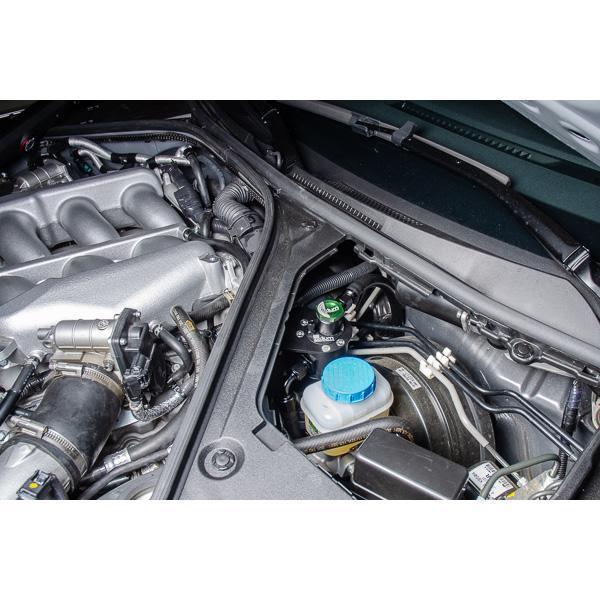

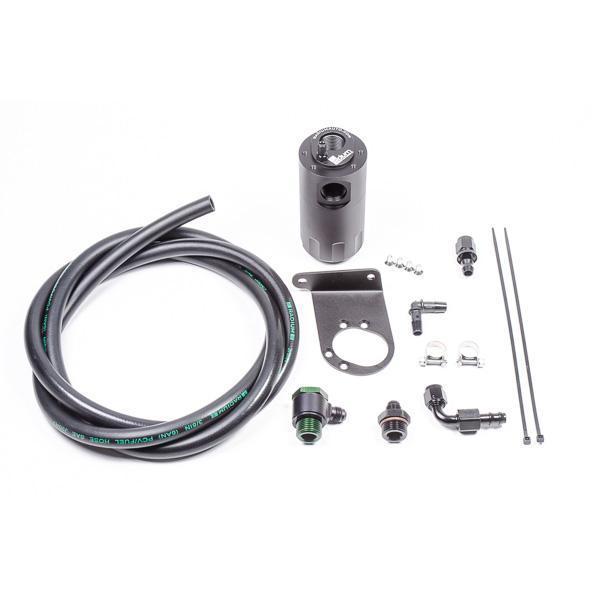

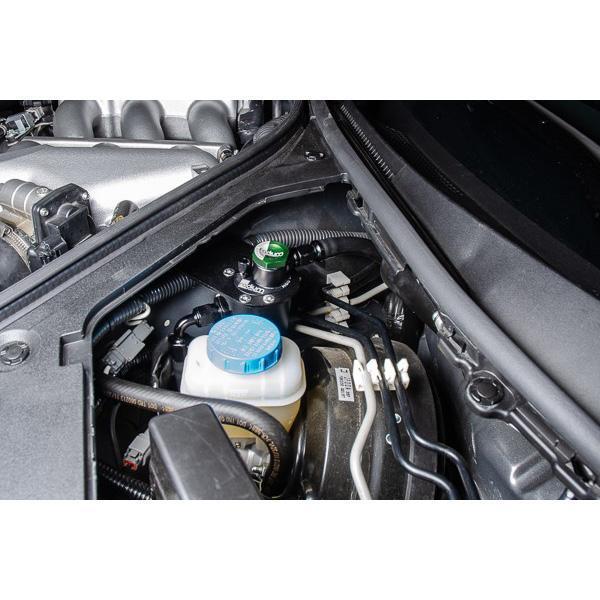

• 20-0565-FL PCV kit: single can near the brake master cylinder, inline PCV valve to intake manifold; NOT directly compatible with 08-11 GT-Rs lacking the OEM strut bar

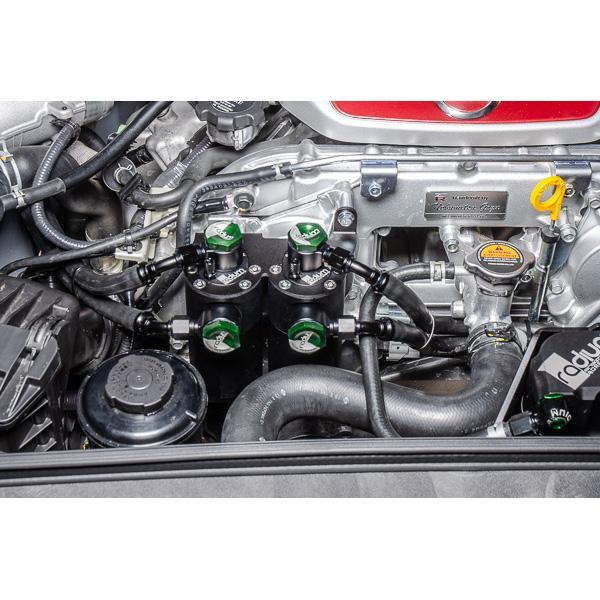

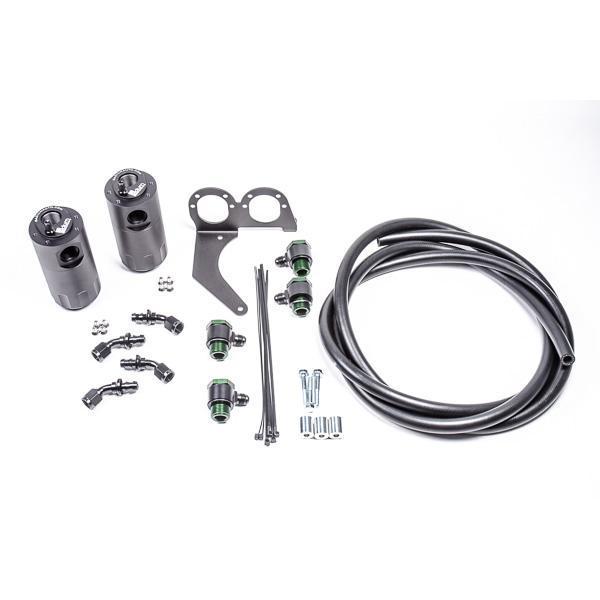

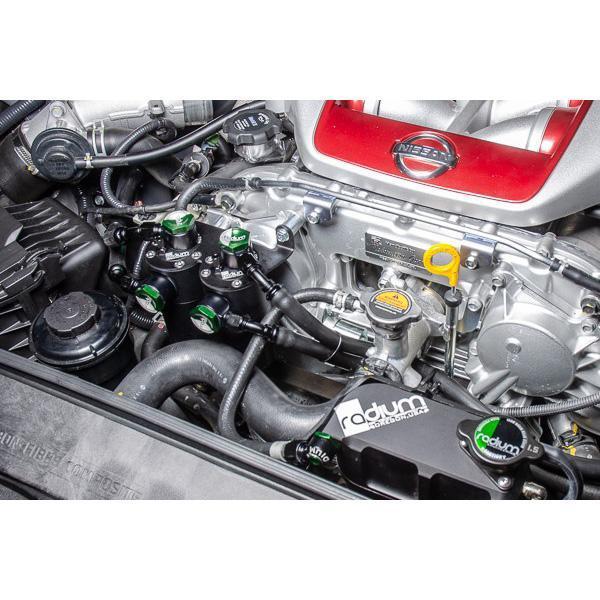

• 20-0555-FL dual CCV kit: two cans, one per head breather line, inline between crankcase vent ports and turbo inlets

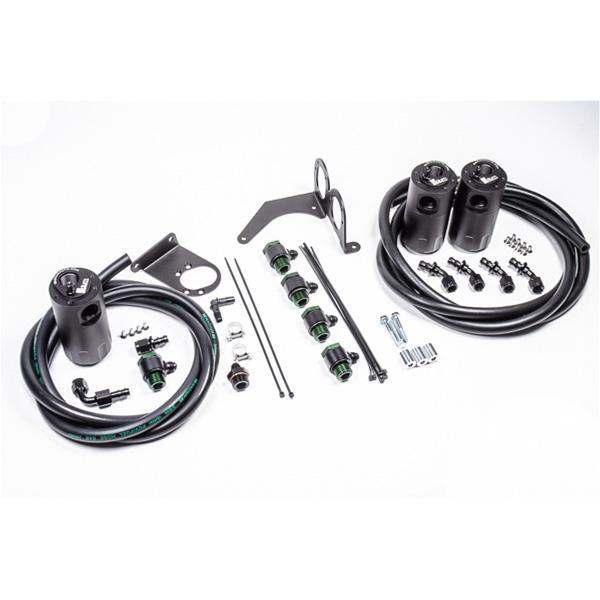

• 20-0566-FL triple kit: both kits together for maximum coverage
• Fluid Lock cans: 10AN ORB ports, 4AN ORB drain, 2-step baffling, O-ring sealed dipsticks
• Pressure sealed cans, so direct intake manifold connection is permitted with no added check valve
• Current kits use swiveling stainless steel fittings, replacing the discontinued green banjo style

Kit Includes

• Selected configuration: PCV kit (1 can), CCV kit (2 cans), or triple kit (3 cans)
• Fluid Lock catch can(s) with O-ring sealed dipsticks
• R35-specific mounting brackets, hoses, swiveling stainless fittings, and hardware

Applications

• 2009-2019 Nissan GT-R R35 (VR38DETT)
• PCV kit: requires the OEM strut bar (not directly compatible with 08-11 cars without it)
• RHD vehicles: some mounting modifications may be required
