By Radium Engineering
20-0568-02 2004-2006 Subaru WRX STI Radium Subaru EJ Top Feed Fuel Rail Conversion Kit
Regular price
$218.45
Regular price
$229.95
Sale price
$218.45
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-0568-02
Tags:
- 2004 Subaru Forester,
- 2004 Subaru Forester XT,
- 2004 Subaru WRX STI,
- 2005 Subaru Forester,
- 2005 Subaru Forester XT,
- 2005 Subaru Legacy,
- 2005 Subaru Legacy GT,
- 2005 Subaru Legacy GT Limited,
- 2005 Subaru Outback,
- 2005 Subaru Outback XT,
- 2005 Subaru WRX STI,
- 2006 Subaru Legacy,
- 2006 Subaru Legacy GT,
- 2006 Subaru Legacy GT spec B,
- 2006 Subaru Outback,
- 2006 Subaru Outback XT,
- 2006 Subaru WRX STI,
- flow-backfill,
- In Stock,
- Radium Engineering,
- Subaru
Collections:
Regular price
$218.45
Regular price
$229.95
Sale price
$218.45
The Radium Subaru EJ Top Feed Fuel Rail Conversion Kit fits 2004-2006 Subaru WRX STI. Part number 20-0568-02.
Features
- Converts the OEM side feed injector setup to top feed; high-flow injectors NOT included
- CNC machined solid 6061 aluminum rails, black anodized, laser engraved, large internal bore
- 14mm ID injector bores; 4x billet anodized, laser etched injector seats for injectors with 14mm lower O-rings
- 3x 8AN ORB threaded ports per rail (6 total)
- Press-fit phenolic spacers insulate intake manifold heat transfer; stainless hardware
- All fuel types including E85

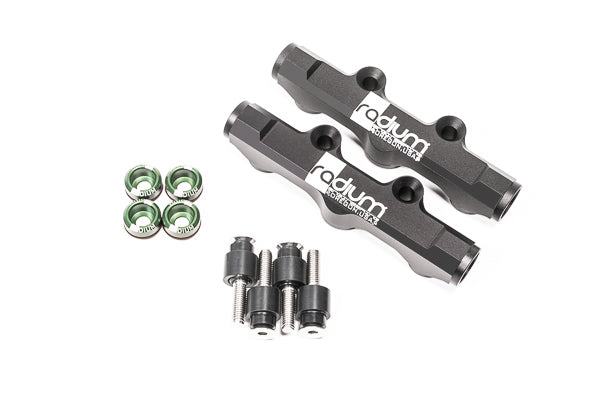

Kit Includes
- 2x Black anodized, laser engraved 6061 aluminum top feed conversion rails
- 4x Billet anodized, laser etched injector seats (14mm lower O-ring receptacles)
- Press-fit phenolic thermal spacers
- Stainless steel hardware
- Injectors and port fittings NOT included
Applications
- 2004-2006 Subaru Impreza WRX STI (USDM, side feed injector cars)
- 2005-2006 Legacy GT and Outback XT; 2004-2005 Forester XT (side feed injector cars)

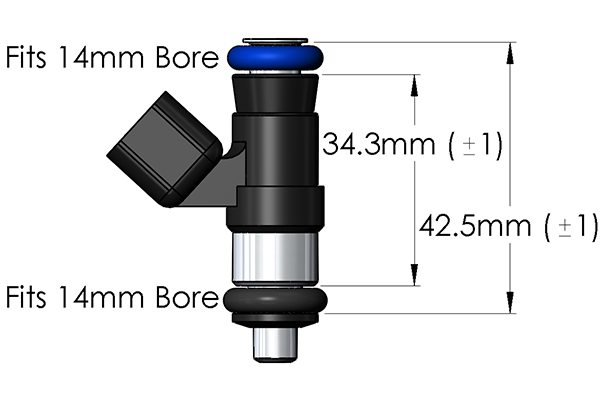

- Top feed injectors with 14mm lower O-rings; do NOT purchase "WRX fitment" injectors
