20-0632-00 1995-2002 Nissan S14 / S15 Radium Fuel Hanger For F90000267/274/285 Or E5LM - Pumps Not Included

The Radium Fuel Hanger For F90000267/274/285 Or E5LM - Pumps Not Included fits 1995-2002 Nissan S14/S15/R33/R34. Part number 20-0632-00.

Features

• Replaces the entire factory fuel pump assembly; configurable for 1 or 2 pumps
• 20-0632-00 supports: Walbro F90000267, F90000274, F90000285 (integrated check valves), plus F90000295 and Ti Automotive E5LM brushless with the 20-1534 check valve added per pump
• Pumps suspend in the tank bottom, feeding polyamide nylon tubing to the top hat
• Retains the factory Nissan level sender, low fuel switch, and fuel temperature sensor (OBD-II only)
• Adapter fittings included for all factory fuel line variations (quick connect and hose barb)
• Custom stainless steel electrical studs, hermetically sealed and serviceable, with non-conductive anodized acorn nuts preventing accidental shorts

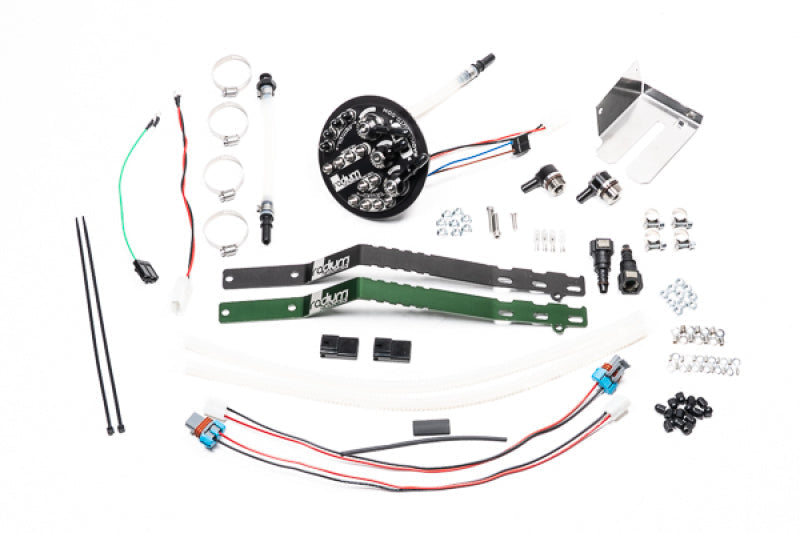

Kit Includes

• 1x Fuel pump hanger assembly (partially assembled; final assembly at install)
• Adapter fittings for all factory fuel line variations
• Polyamide nylon tubing, sealed stainless electrical studs, non-conductive acorn nuts
• Components for 1 or 2 pumps; fuel pumps NOT included

Applications

• Nissan S14 Silvia / 200SX / 240SX and S15 Silvia / 200SX (all trims, RHD/LHD)
• Nissan Skyline R33 and R34 (all trims, RHD/LHD)
• 20-0632-00: Walbro F90000267/274/285; F90000295 and Ti E5LM with 20-1534 check valve per pump
