20-0664 Universal Radium Saddle Tank Fuel Cell Conversion Kit

The Radium Saddle Tank Fuel Cell Conversion Kit is a universal fitment component. Part number 20-0664.

Features

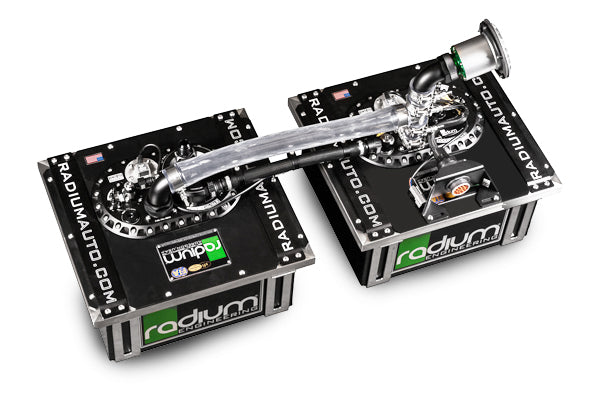

• Fuel transfer system linking a passive cell to an FCST-X equipped active cell
• 1.5in OD stainless steel TEE for fill plumbing, orientable vertically or horizontally
• Fittings and hoses for both transverse and longitudinal installations
• Compatible with standard and dry break refuelling systems
• 1.5in ID tubing included, suiting any remote filler with a 1.5in OD barb

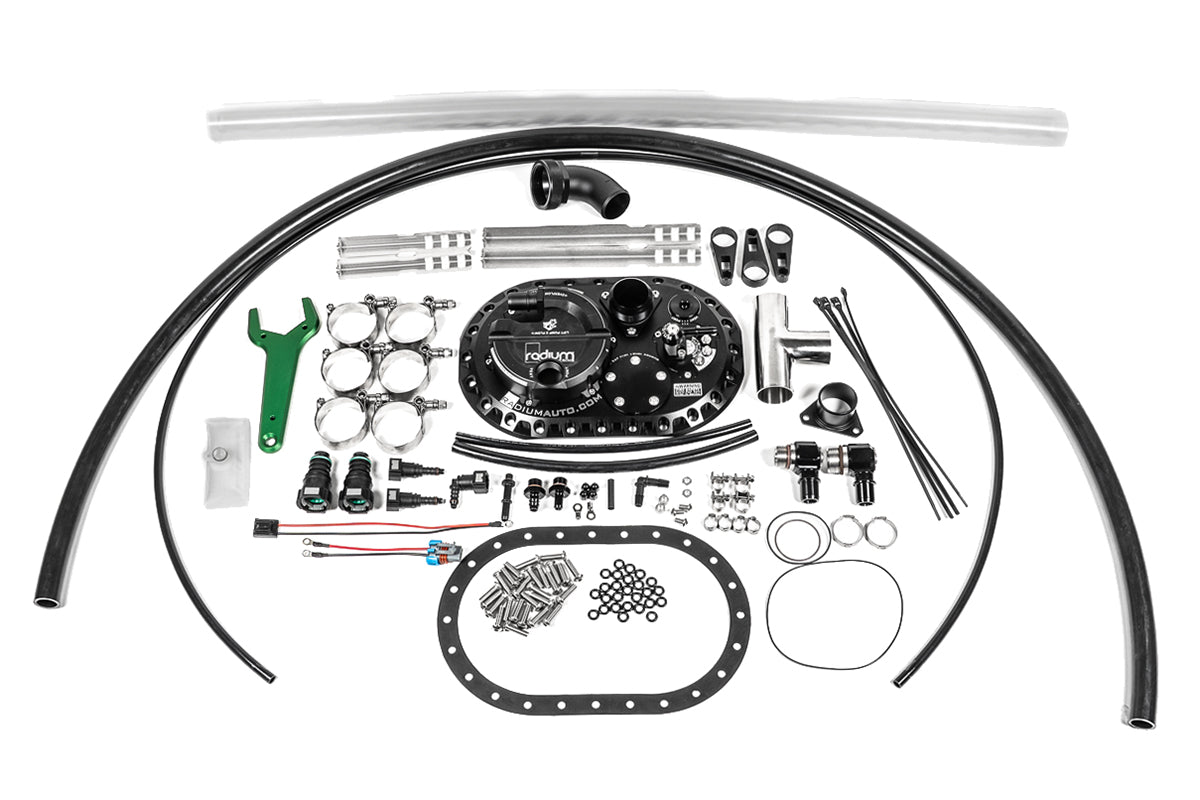

Kit Includes

• Saddle tank conversion hardware for the secondary fuel cell
• 1.5in OD stainless steel TEE and 1.5in ID tubing
• Fittings and hoses for transverse or longitudinal mounting
• Vent fitting relocation hardware
• NOT included: fuel cells, FCST-X surge tank, fuel pumps, fuel level senders, fuel level switch (20-0461), and remote filler kit

Applications

• Universal, for pairing two Radium RA-Series fuel cells where the active cell carries an FCST-X surge tank

Important Notes

• Requires an FCST-X; previous non-X FCST models are NOT compatible
• Minimum three fuel pumps required: two lift pumps and one surge tank pump
• Lift pumps must have integrated check valves or they can back-feed

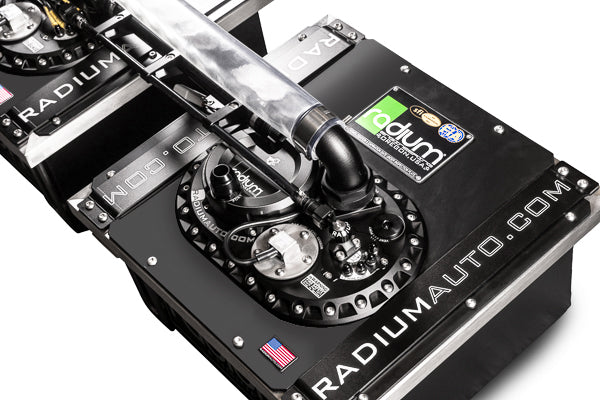

• Cell top flanges should be mounted at the same height
• Custom control logic is required for the passive cell lift pump
• Not CARB legal; not for sale or street use in California and CARB states
