20-075 2022+ Subaru WRX Radium Catch Can Kits

The Radium Catch Can Kits fits 2022+ Subaru WRX. Part number 20-075.

Features

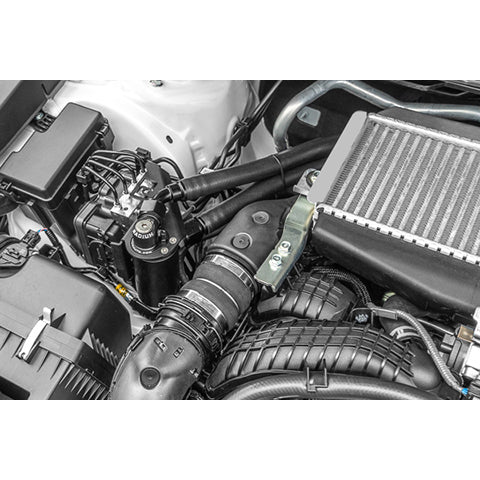

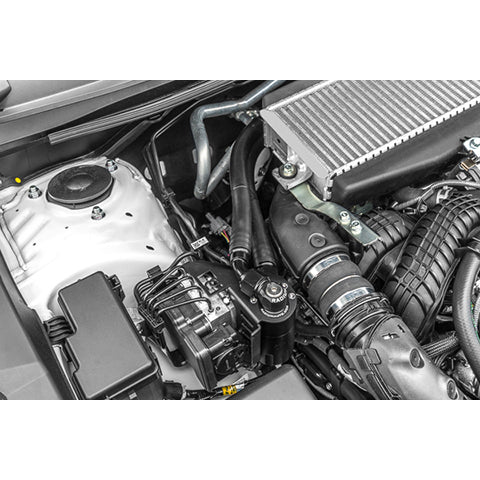

• 20-0754-FL PCV kit: mounts to existing threaded bosses on the ABS unit, inline with the PCV-to-manifold circuit

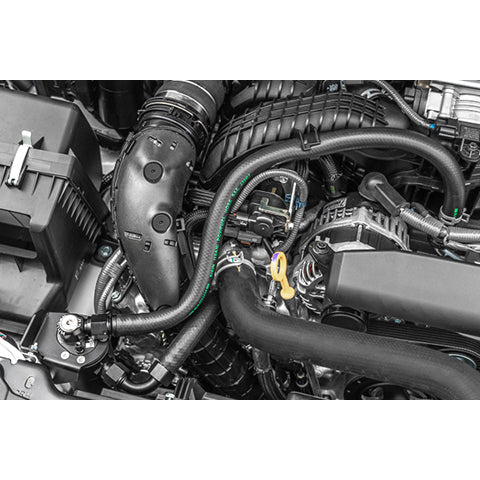

• 20-0755-FL CCV kit: mounts by the airbox, inline between the crankcase vent port and turbo inlet pipe, catching high-load blow-by

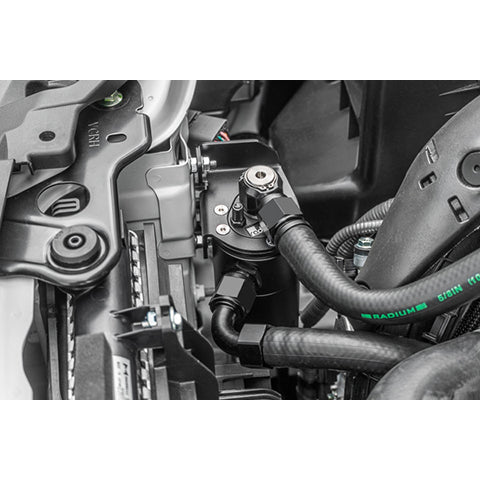

• 20-0756-FL dual kit: both cans with vehicle-specific brackets for full coverage
• Fluid Lock catch cans: large 10AN ORB ports, 4AN ORB drain port, 2-step oil separation baffling, O-ring sealed dipstick
• Pressure sealed cans, so no extra inline check valve is required
• Closed loop, does NOT vent to atmosphere; compatible with the OEM air duct

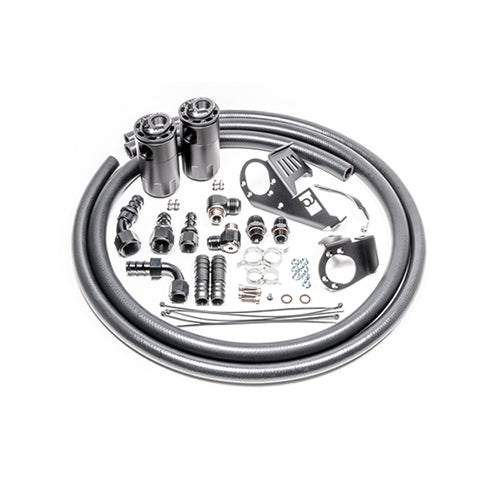

Kit Includes

• Selected configuration: PCV kit, CCV kit, or dual kit
• Fluid Lock catch can(s) with O-ring sealed dipsticks
• Vehicle-specific mounting brackets, hoses, fittings, and hardware

Applications

• 2022+ Subaru WRX (VB, 2.4L FA24)
• Compatible with the OEM air duct
• PCV and CCV kits recommended together; each addresses only its own circuit
