20-0753 2020-2026 Toyota Supra Radium Port Injection Kit

The Radium Engineering Port Injection Kit fits 2020-2026 Toyota Supra. Part number 20-0753.

Features

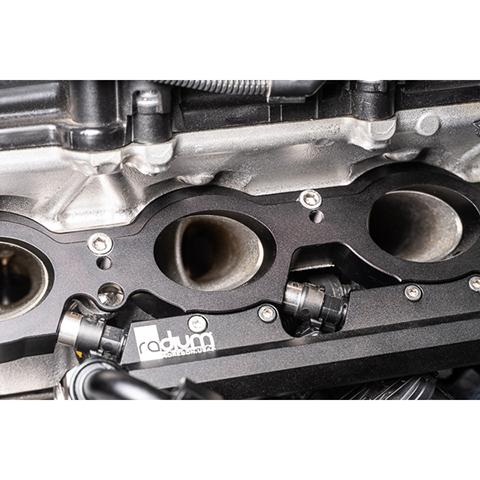

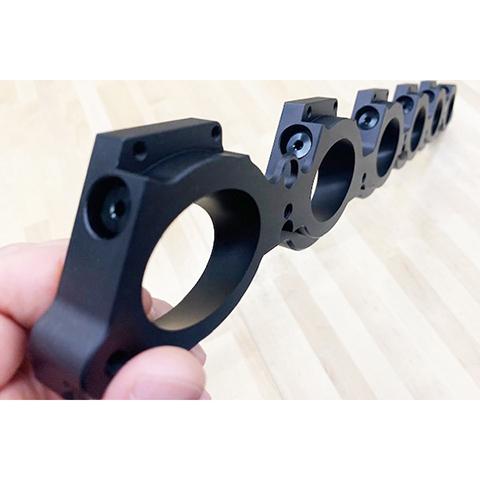

• PIK adapter plate installs between the intake manifold and cylinder head; does NOT replace OEM direct injection
• Fuel rail CNC machined from extruded 6063 aluminum, laser etched; 8AN ORB (3/4"-16) end ports
• Injectors mounted at a calculated angle for proper spray into the intake port centers
• Adapter plate usable as a simple intake manifold spacer without the rail (requires 2AN ORB plugs)

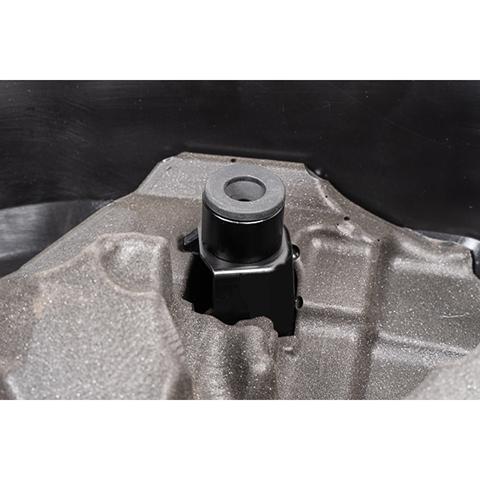

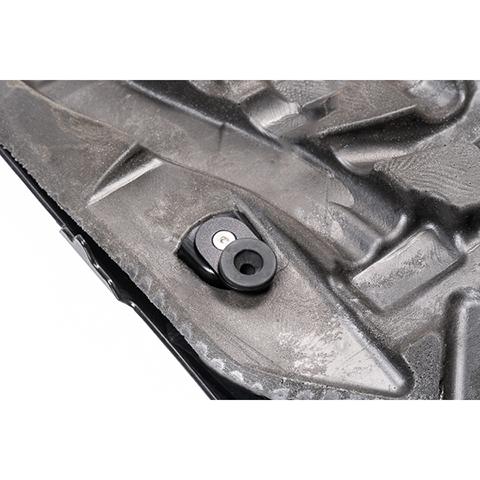

• Vanity cover relocation hardware included (4 adapters)
• All fuel types including E85; injectors NOT included

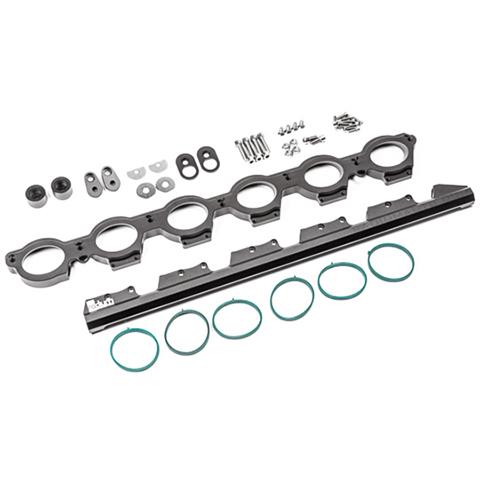

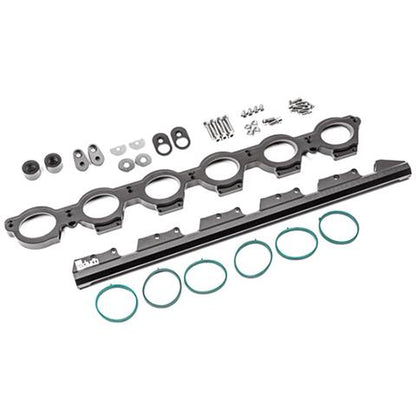

Kit Includes

• 1x PIK adapter plate
• 1x CNC machined 6063 port injection fuel rail (8AN ORB end ports)
• Vanity cover relocation hardware (4 adapters) and mounting hardware
• Injectors, plumbing kit (20-0753-PK), charge pipe, and controller NOT included

Applications

• 2020+ Toyota GR Supra 3.0 (B58TU); 2019+ BMW Z4 M40i (G29, B58TU) per Radium's platform coverage
• Aftermarket charge pipe required for the throttle body connection
• Supplements OEM direct injection; does not replace it
