20-0760 2020-2026 Toyota Supra Radium Fuel Pump Hanger

The Radium Engineering Fuel Pump Hanger fits 2020-2026 Toyota Supra. Part number 20-0760.

Features

• Drop-in hanger for the 2020+ GR Supra (A90/A91); adds one independent 39mm auxiliary pump
• OEM direct injection system fully retained; auxiliary pump serves port injection duty
• Collector basket kept full from 3 sources: the venturi jet pump scavenging the passive tank side, returned fuel from both the DI and port injection regulators, and the one-way fill valve on the OEM basket that lets fuel in but not out
• Port injection feed port: 8AN ORB female with male 8AN low profile banjo preinstalled; return port: 8AN ORB female with male 6AN low profile banjo preinstalled (both changeable via 8AN ORB fittings)
• Brushless pump provisions; NOT compatible with 39/50 DCCS pumps (Walbro F900002XX)
• Anodized aluminum, stainless hardware, fuel resistant tubing and ETFE-class wiring; pumps NOT included

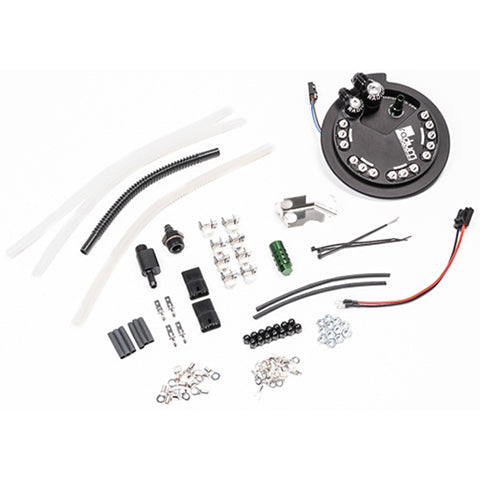

Kit Includes

• 1x MK5 Supra fuel pump hanger with preinstalled 8AN and 6AN low profile banjo fittings
• High current electrical hardware, fuel resistant tubing, stainless hardware
• Fuel pump NOT included

Applications

• 2020-2021+ Toyota GR Supra (A90/A91, B58)
• Pairs with Radium 20-0761 plumbing kits and the 20-0753 B58 port injection rail
• 39mm pumps incl. brushless; NOT Walbro F900002XX (39/50 DCCS)
