20-078X-XX Multiple Subaru Fitments Radium Fuel Pump Hanger

The Radium Engineering Fuel Pump Hanger fits Multiple Subaru Fitments. Part number 20-078X-XX.

Features

• Anodized, laser engraved billet fuel hat replacing the OEM unit; supports 1 or 2 pumps with internal outlet merging
• Collector box with two 355 lph 1-way fill valves plus a PRV venturi jet pump that scavenges the passive tank side without restricting the return
• Three external ports with pre-installed SAE quick connect male adapters: FUEL PUMP OUT (8AN ORB), FPR RETURN (6AN ORB), CROSSOVER (6AN ORB), so factory lines reconnect directly
• Configurations: 20-0780-00 (Walbro GSS342, AEM 50-1200 style), 20-0781-00 (DeatschWerks DW400), 20-0782-00 (Walbro F90000267/274/285)
• Stainless electrical terminals and hardware, SAE quick connect fittings, and submersible fuel tubing included
• Eliminates the OEM post-pump filter; a low-micron filter must be installed downstream (Radium's Subaru plumbing kits include it, sold separately)

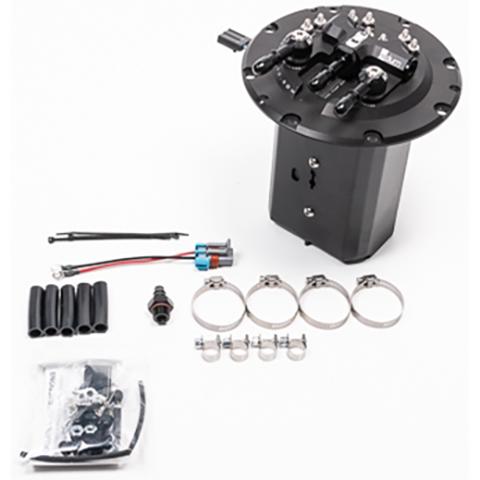

Kit Includes

• 1x Anodized billet fuel pump hanger in selected pump configuration
• Collector box with two 1-way fill valves and PRV venturi jet pump
• Pre-installed SAE quick connect fittings on all three ports
• Submersible fuel tubing, stainless electrical terminals, and stainless hardware
• Fuel pumps NOT included, sold separately

Applications

• 2008-2014 Subaru WRX and 2008-2021 Subaru STI
• 2008-2014 Subaru Impreza and Forester (all)
• 2005-2009 Subaru Legacy and Outback (all)
• 2015-2021 Subaru WRX and 2014-2018 Forester XT (require 20-0850 sender adapter and an aftermarket fuel pressure regulator, each sold separately)
