20-0847-297 Universal Radium SAE Fuel Level Sender 0-90 Ohm 11.7in Shrouded

The Radium SAE Fuel Level Sender 0-90 Ohm 11.7in Shrouded is a universal fitment component. Part number 20-0847-297.

Features

• Float-style fuel level sender, SAE 5-bolt mounting pattern, 11.7" shrouded probe (20-0847-297)
• Resistance output: 0 ohms empty to 90 ohms full (common aftermarket standard)
• FR4 conformal-coated PCB, epoxy potted terminals, anodized finish, shrouded float
• Suitable for gasoline, diesel, methanol, ethanol, E85, and all alcohol based fuels
• Gasket seal withstands over 6 psi internal tank pressure per SAE J1810 when properly mounted
• Made in Portland, USA; 1 year warranty

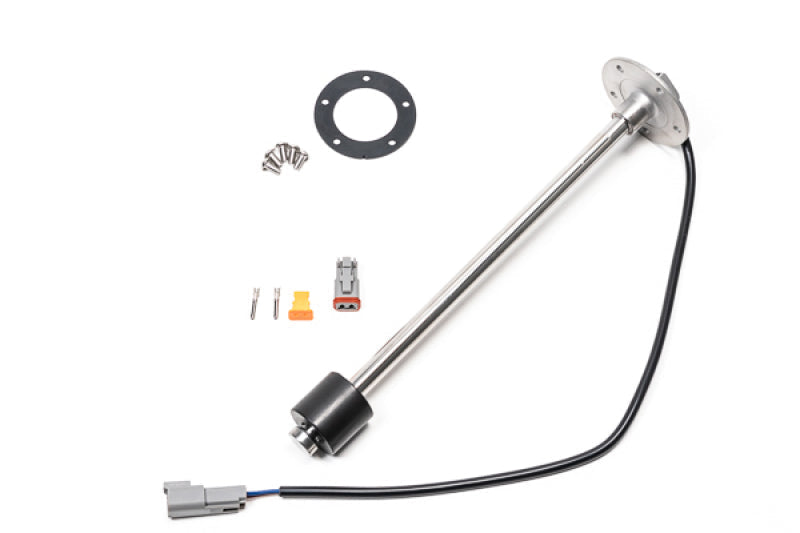

Kit Includes

• 1x Level sensing probe, 11.7", shrouded (20-0847-297)
• 1x SAE 5-bolt gasket; 5x stainless 10-32 bolts; 5x nylon sealing washers
• 1x Deutsch DT 2P connector with 2x sockets
• Fuel level gauge NOT included

Applications

• Fuel cells and tanks with the SAE 5-bolt sender pattern; Radium FCST and FCST-X
• 0-90 ohm aftermarket gauges; OEM gauges may require a resistance converter
• All fuels: gasoline, diesel, methanol, ethanol, E85
