20-090X-FL 2013+ Subaru BRZ / Scion FR-S Radium Catch Can Kit

The Radium Catch Can Kit fits 2013+ Subaru BRZ/Scion FR-S/Toyota 86. Part number 20-090X-FL.

Features

• Billet Fluid Lock catch can with 2-step oil separation baffling and O-ring sealed dipstick
• Large 10AN ORB ports and 4AN ORB drain port
• Runs inline with the PCV valve hose; kit may use 1/2" or 3/8" hose depending on manufacture date, with no functional difference

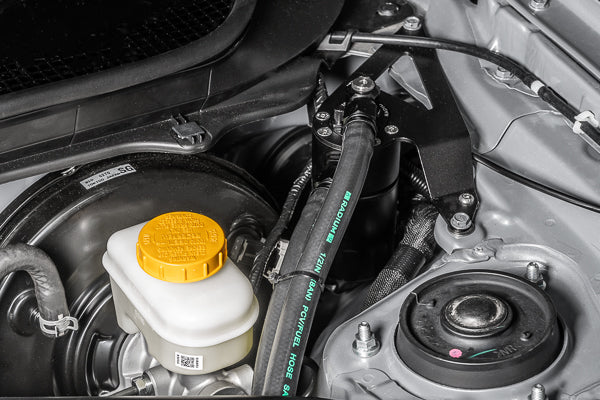

• Mounts on the RH side of the engine bay with application-specific bracket, hoses, and hardware
• Pressure sealed, retaining factory PCV valve function; suitable for boosted applications
• Fluid Lock mechanism prevents an overfull can from feeding collected fluids back into the engine

Kit Includes

• 1x Billet Fluid Lock catch can with dipstick
• Application-specific mounting bracket, hoses, fittings, and hardware

Applications

• 2013-2021 Toyota 86 / Scion FR-S (2013-2016)
• 2013-2020 Subaru BRZ
• Naturally aspirated and boosted FA20 applications; RHD installation follows a similar process
