20-0940 Toyota Chaser / Mark II Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits Toyota Chaser / Mark II / Cresta X90 X100. Part number 20-0940.

Features

• Drop-in replacement for the factory pump assembly, 1 or 2 pumps
• 10AN ORB (7/8in-14) female feed port, 6AN ORB (9/16in-18) female return port

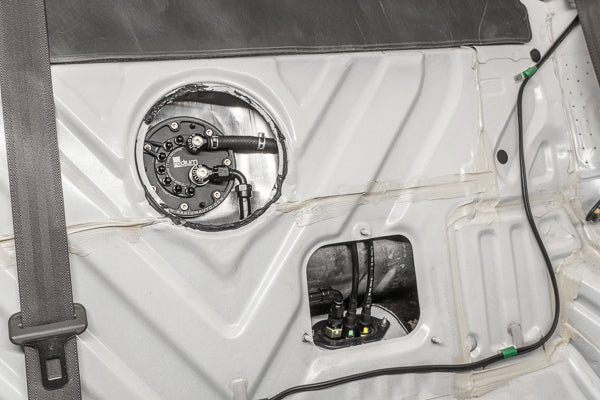

• Multiple adapter fittings for connecting back to the OEM fuel lines
• Replacement PTFE feed hose for later models using the inverted flare feed line
• SAE quick connector that snaps into the underside of the fuel hat when a second pump is fitted
• Custom stainless electrical studs, hermetically sealed and impervious to standard and exotic fuels
• Non-conductive anodized acorn nuts preventing accidental shorts
• ETFE insulated in-tank wiring, stainless steel hardware

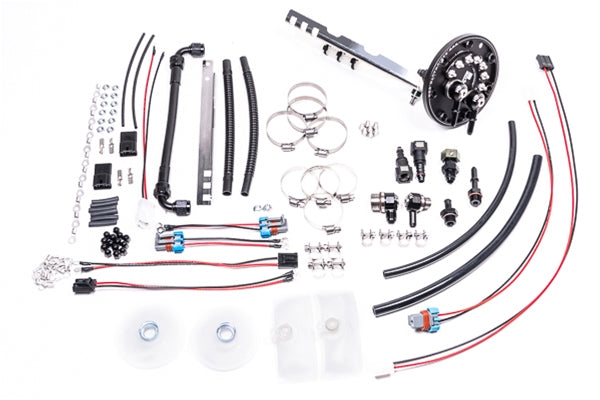

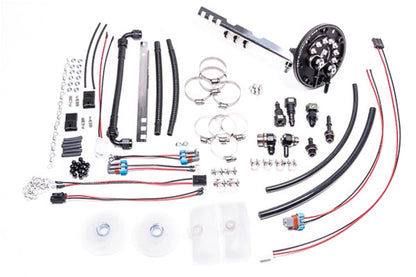

Kit Includes

• Fuel pump hanger, partially assembled
• Adapter fittings for connecting to the OEM fuel lines
• Replacement PTFE feed hose for inverted flare applications
• SAE quick connector for second pump installs
• Sock filters for compatible Walbro and AEM pumps
• Electrical hardware, ETFE wiring, and stainless steel hardware
• NOT included: fuel pumps and relay wiring kit

Applications

• Toyota Chaser X90 and X100 (JZX90, JZX100)
• Toyota Mark II X90 and X100
• Toyota Cresta X90 and X100

Important Notes

• AEM 50-1230 and 50-1235 lack a check valve; use 20-1533 if required, and note it cannot be used on the second pump
• Walbro F90000295 and Ti E5LM lack a check valve; use 20-1534, and 20-0798 for the second pump
• Fuel pumps and relay wiring kit sold separately
