20-0957 Nissan KA24DE Radium Top Feed Fuel Rail Conversion

The Radium Engineering Top Feed Fuel Rail Conversion fits Nissan KA24DE. Part number 20-0957.

Features

• Direct bolt-on for all twin cam Nissan KA24DE engines; converts side feed to top feed injection

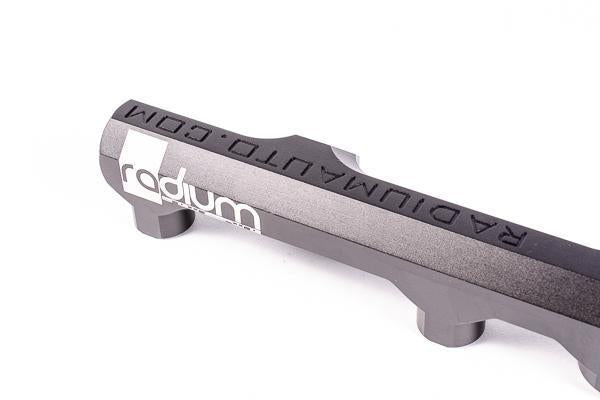

• 0.69" internal bore, CNC machined solid 6061 aluminum, black anodized
• Accepts high flow injectors with 14mm O-rings top and bottom (injectors MUST have 14mm O-rings; not included)

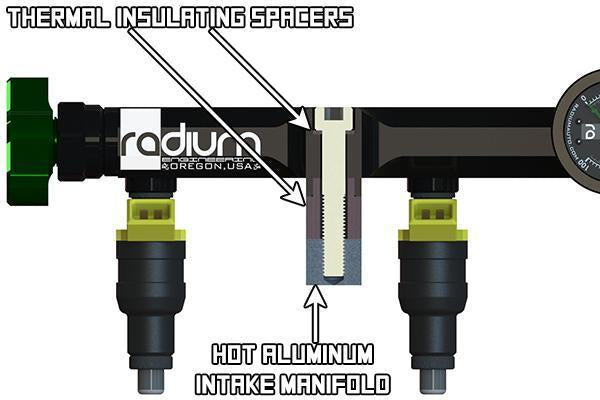

• Two phenolic spacer sets included, fitting 48mm (tall spacers, long bolts) or 34mm (short spacers) injector heights

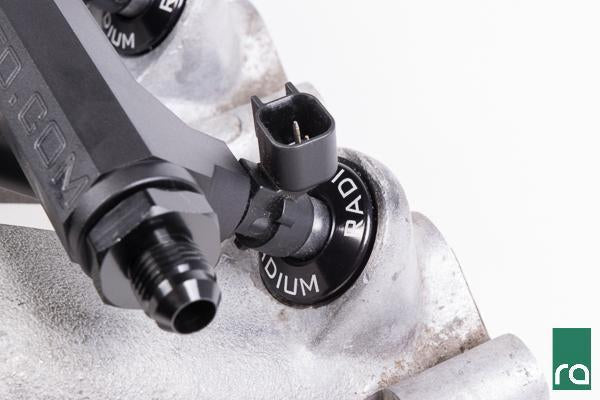

• 4x Radium 30mm injector seats (20-0160) included
• 3x 8AN ORB ports (both ends and bottom) plus 1x 1/8" NPT top port; all fuels including E85

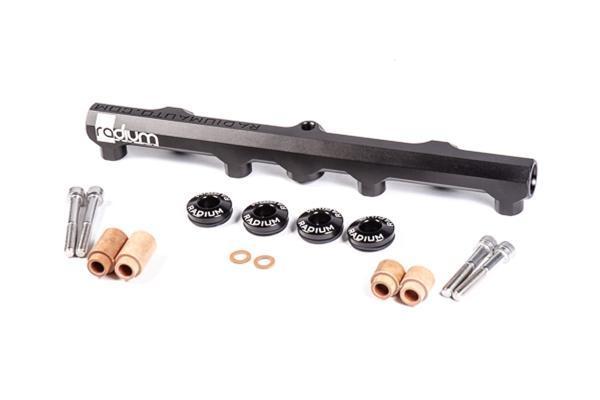

Kit Includes

• 1x Black anodized aluminum top feed fuel rail
• 2x Phenolic mounting bolt spacers short, 2x tall, 2x phenolic washers
• 4x Radium 20-0160 30mm injector seats
• 2x Stainless mounting bolts short, 2x tall
• Injectors and adapter fittings NOT included

Applications

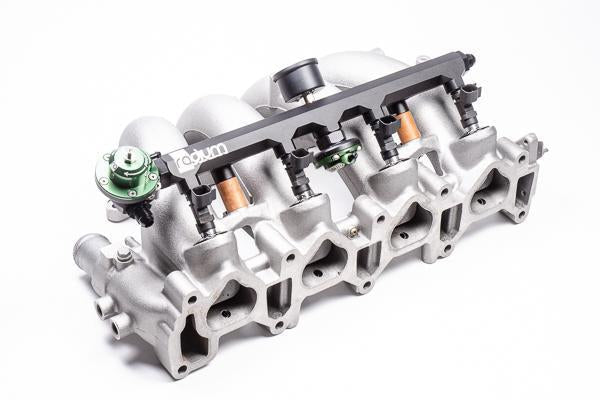

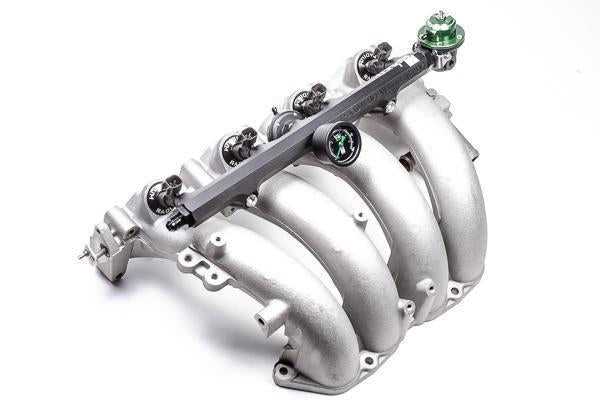

• All twin cam Nissan KA24DE engines: 1991-1998 240SX S13/S14 and KA swaps

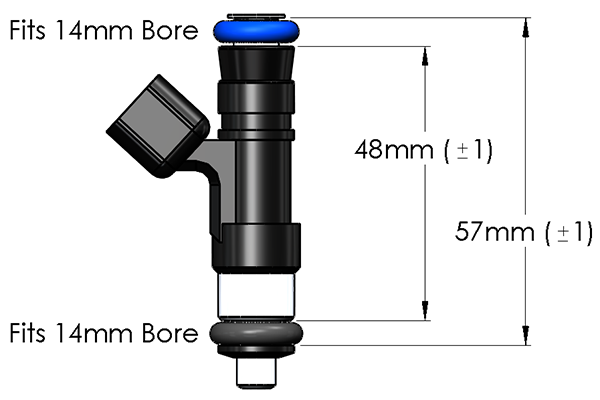

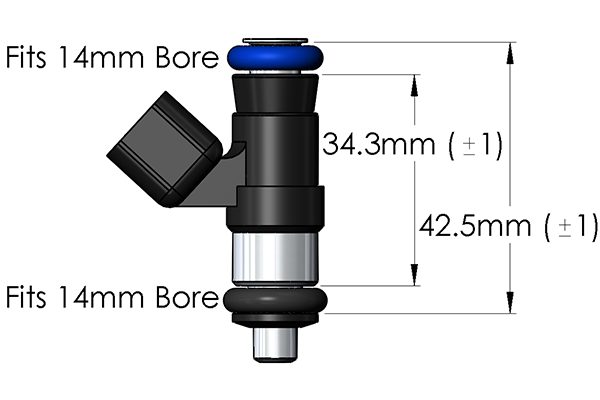

• Injectors with 14mm upper and lower O-rings, 48mm or 34mm heights (ID1050/1300/1700/2600-XDS-48-14-14 verified with tall spacers)
• Xcessive manifolds: may require shimming; included seats unused
