20-0960 Radium Single Pump Fuel Surge Tank

The Radium Engineering Single Pump Fuel Surge Tank. Part number 20-0960.

Features

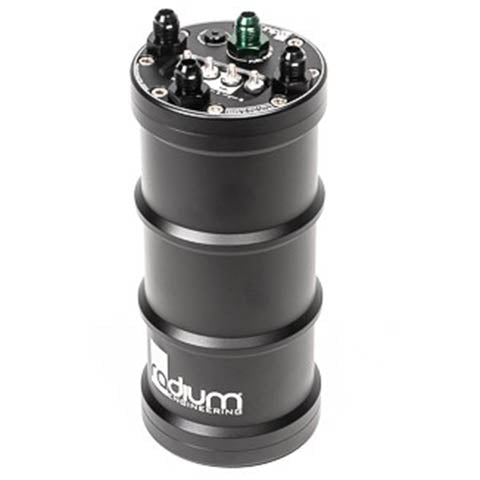

• Houses one internal fuel pump (sold separately) feeding the rails through a green 6AN male bulkhead outlet fitting
• Three interchangeable black 6AN ORB fittings handle lift pump supply in, overflow back to the main tank, and regulator return
• Internal flow deflector prevents fuel foam and aeration on all three ports

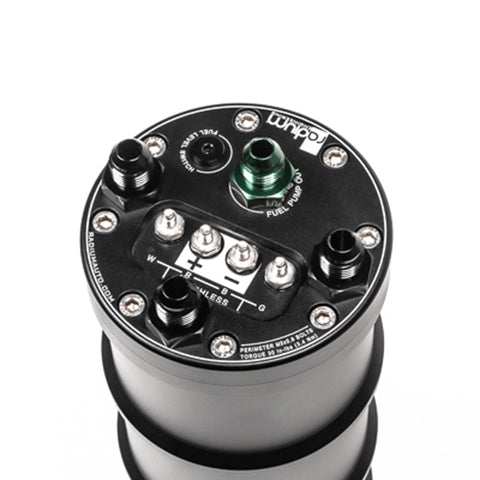

• Anti-rotation stainless electrical studs, hermetically sealed and impervious to all standard and exotic fuels, with non-conductive anodized acorn nuts to prevent shorts
• In-tank wiring insulated with chemically resistant ETFE; internal pump tubing resistant to gasoline, ethanol, and methanol
• 2AN ORB level switch port (plugged) accepts Radium's optional fuel level switch, sold separately

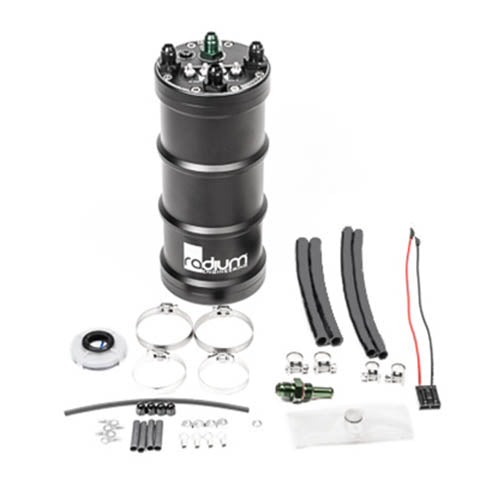

Kit Includes

• 1x Single pump fuel surge tank with green 6AN male outlet bulkhead fitting
• 3x Interchangeable black 6AN ORB fittings (supply, overflow, return)
• Internal pump mounting tubing and electrical hardware for the fuel pump
• 2AN ORB plug installed in level switch port
• Fuel pump, mounting bracket, and level switch NOT included, sold separately

Applications

• Universal: vehicles with inadequate fuel tank baffling, track and street builds
• Forced induction and high fuel demand upgrades using the stock tank as the lift stage
• Compatible with gasoline, ethanol, and methanol fuel systems
