20-0980 2003-2013 Chevrolet Corvette Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits 2003-2013 Chevrolet Corvette. Part number 20-0980.

Features

• Fuel pump outlet threaded 10AN ORB (7/8in-14) female with a low profile 8AN male adapter provided
• Fuel return inlet threaded 8AN ORB (3/4in-16) female with a 6AN male adapter provided

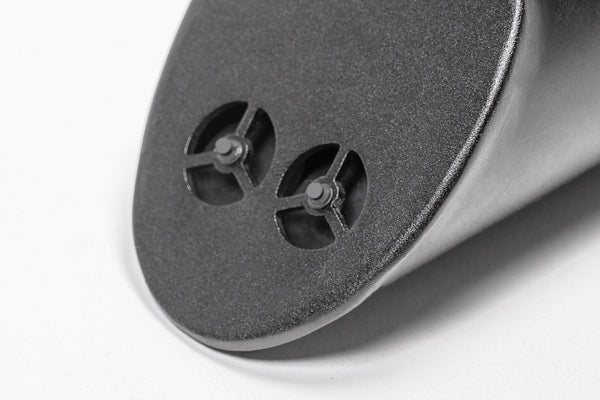

• Billet top hat, anodized collector box with 1-way fill valves, fuel pump filter socks included
• Hermetically sealed stainless electrical studs with non-conductive acorn nuts and ETFE in-tank wiring
• Hardware pack with ring terminals and heat shrink for internal and external wiring
• Compatible pumps: AEM 50-1000 and 50-1200, Walbro GSS342, F90000267/274/285, F90000295, Ti E5LM, DW440, DW810, Protec 11928, Fuelab 49614
• High flow check valve included for the F90000295 and E5LM, which lack integrated check valves

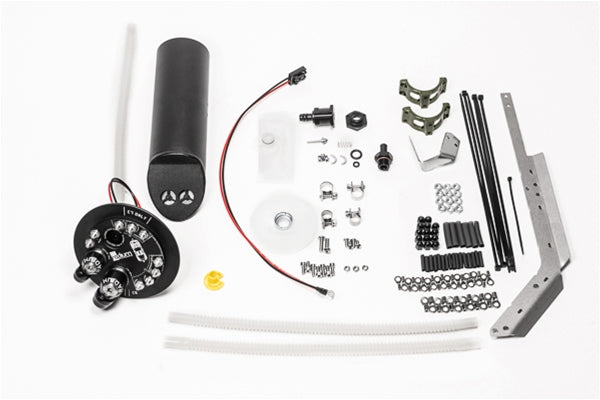

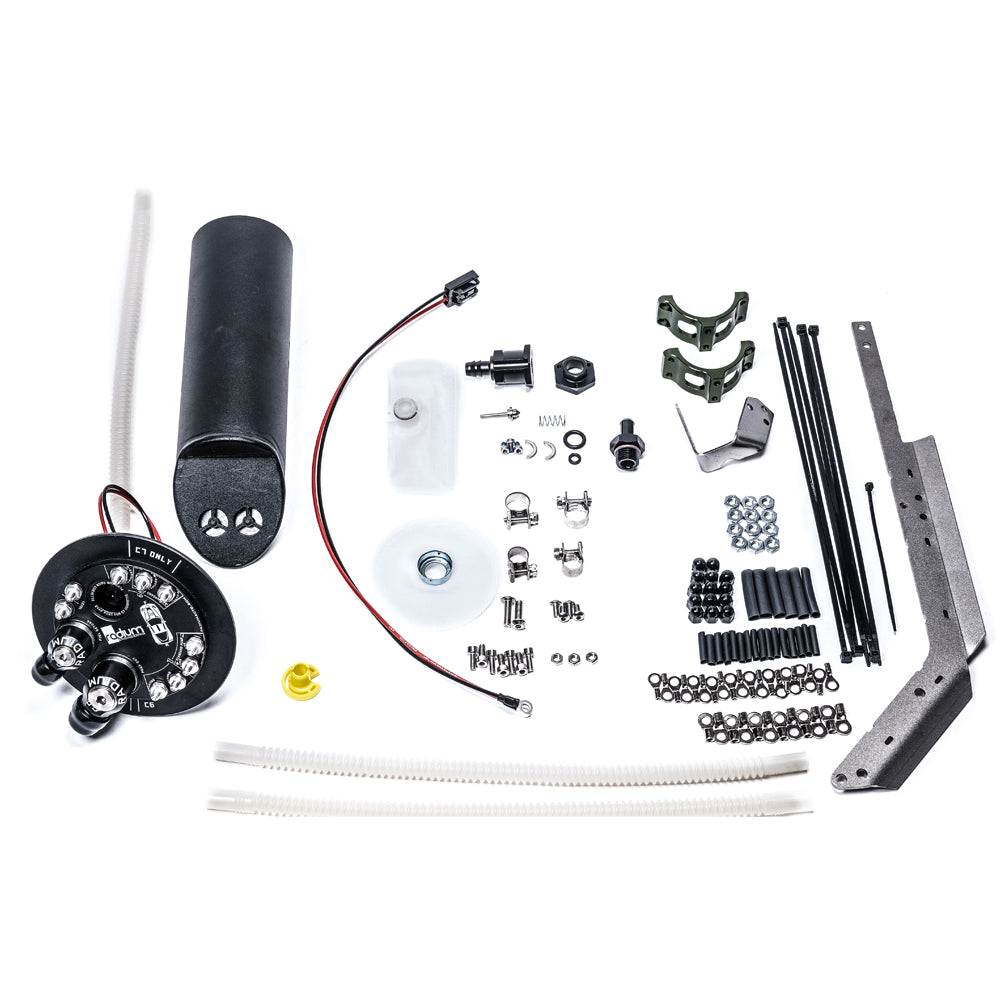

Kit Includes

• 1x fuel pump hanger with billet top hat and anodized collector box, configured for one pump
• Fuel pump filter socks and electrical hardware pack with ring terminals and heat shrink
• Low profile 8AN male outlet adapter and 6AN male return adapter
• High flow check valve for compatible pumps without integrated check valves
• NOT included: fuel pump(s), fuel pressure regulator, low micron fuel filter, the 20-0937 dual pump add-on, and the 20-0981 or 20-0983 plumbing kits

Applications

• Mid 2003 through 2013 Chevrolet Corvette, mid-mounted fuel pump assembly

Important Notes

• Compatible only with vehicles after VIN 35114930, manufactured November 2002 onward; early 2003 production cars are not compatible
• An aftermarket fuel pressure regulator and external low micron fuel filter are required on every installation; both are included in the plumbing kits
• Two-pump configurations require the Radium 20-0937 dual pump add-on, sold separately
• Brushless and 41-43mm body pumps (DW440, DW810, Protec 11928, Fuelab 49614) require the Radium 20-0441 pump clamp, sold separately
