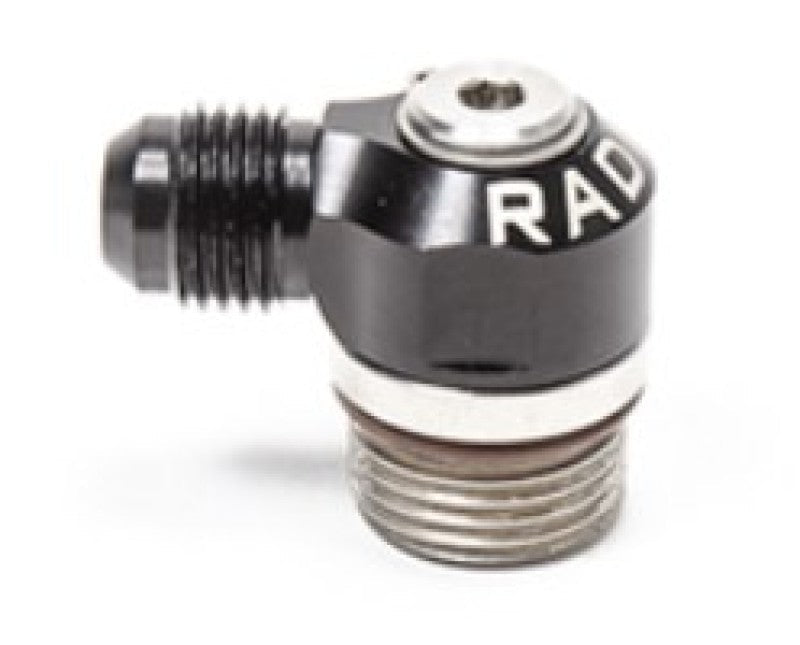

20-1000-0808 Universal Radium 8AN ORB Banjo To 8AN Male Adapter Fitting

The Radium Engineering 8AN ORB Banjo To 8AN Male Adapter Fitting is a universal fitment component. Part number 20-1000-0808.

Features

• Threads into any female 8AN ORB (3/4"-16) port and seals on an FKM O-ring
• 360-degree swivel action retained after installation and torque
• Low installed height of 1.019" from mounting surface to top
• Stainless steel lower half with anodized aluminum upper half, retained by an external snap ring
• Suitable for high pressure fuel and oil systems; do not exceed 400 psi
• Serviceable with Radium swivel fitting service kits (sold separately)

Kit Includes

• 1x 8AN ORB swivel banjo fitting (20-1000-0808)

Applications

• Universal: any component with a female 8AN ORB (3/4"-16) port, including Radium fuel rails, catch cans, surge tanks, and filters
• High pressure fuel and oil systems up to 400 psi, all fuel types
