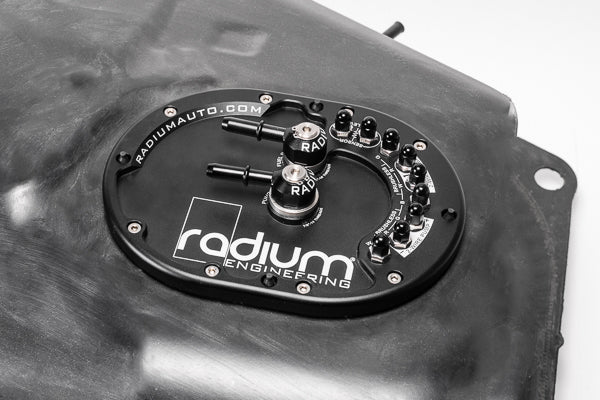

20-1020 1989-2005 Mazda MX-5 Miata Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits 1989-2005 Mazda MX-5 Miata. Part number 20-1020.

Features

• PUMP OUT port tapped 10AN ORB (7/8in-14) with both 89-97 and 99-05 style adapters provided
• FUEL RETURN port tapped 8AN ORB (3/4in-16) with both adapter styles provided
• 1-piece anodized aluminum collector box with two 355 LPH one-way fill valves
• Pre-pump filter socks included for all pumps; the OEM post-pump filter is retained in the system
• Anti-rotation stainless terminals, hermetically sealed serviceable connections, ETFE in-tank wiring, non-conductive acorn nuts
• Compatible pumps: AEM 50-1200, Walbro GSS342, Walbro F90000267/274/285, Ti Automotive E5LM, and other 39mm body pumps

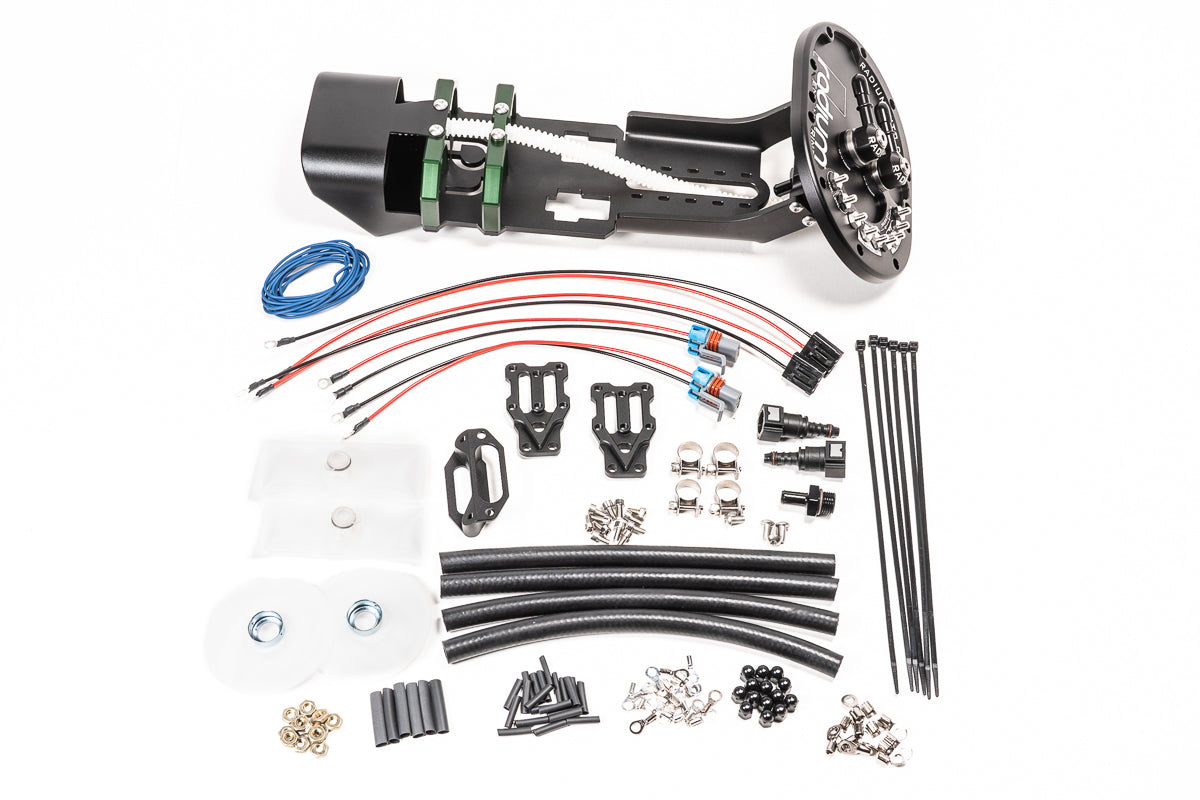

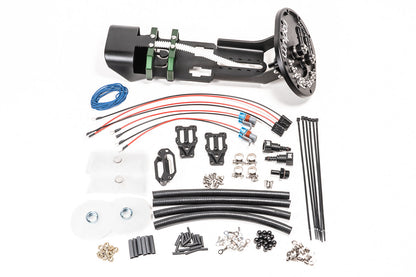

Kit Includes

• 1x fuel pump hanger with collector box, configured for one or two pumps
• Billet extension brackets for all 89-05 tank variations and fuel level sensor extension mount for deep tanks

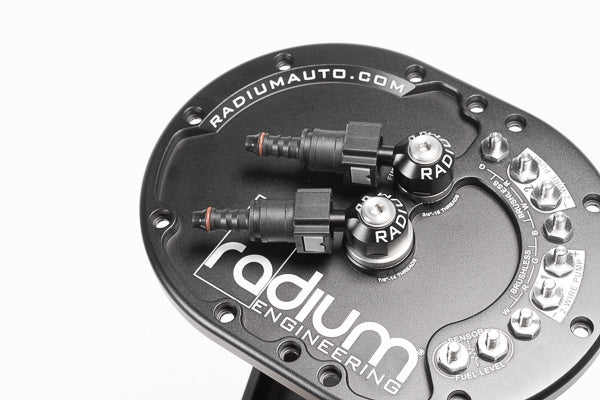

• SAE quick connect hose ends (89-97) and ORB-to-SAE quick connect banjo fittings (99-05) for both ports
• Pre-pump filter socks and electrical hardware
• NOT included: fuel pump(s), aftermarket FPR for 99-05 cars (20-1022 or the 20-1025 plumbing kit), and the 20-0798 check valve for staged E5LM pumps

Applications

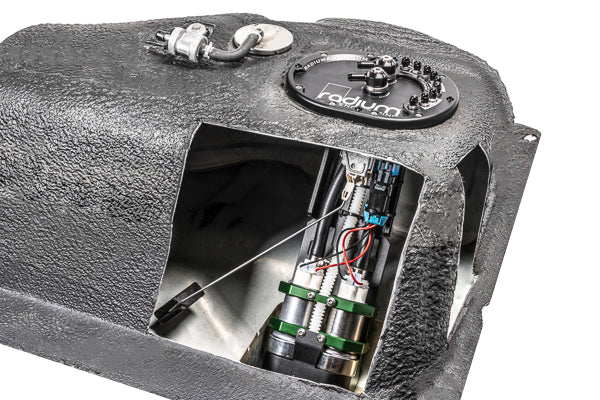

• 1989-2005 Mazda MX-5 Miata, NA and NB, all fuel tank variations

Important Notes

• On 1999-2005 cars this hanger removes the OEM fuel pressure regulator from the system; an aftermarket FPR such as the Radium 20-1022 kit is required
• Pumps must have a 39mm outer body diameter
• This system retains the OEM post-pump fuel filter; it is not eliminated
