20-1022 1999-2005 Mazda MX-5 Miata Radium FPR Kit RA-Series

The Radium FPR Kit RA-Series fits 1999-2005 Mazda MX-5 Miata. Part number 20-1022.

Features

• MPR-RA fuel pressure regulator with 360 degree swiveling vacuum reference port
• 0-100 psi fuel pressure gauge mounted on the feed line
• Four interchangeable 10-32 vacuum port fittings: 3/16 inch barb, 3AN male, push-to-connect for 1/4 inch OD tubing, and a vacuum plug for constant pressure
• Stainless steel mounting bracket, anodized aluminum fittings, SAE quick connect fittings, hose clamps and hardware
• 6AN (3/8 inch) fuel hose and a stainless SAE quick connect plug for the OEM feed line tee

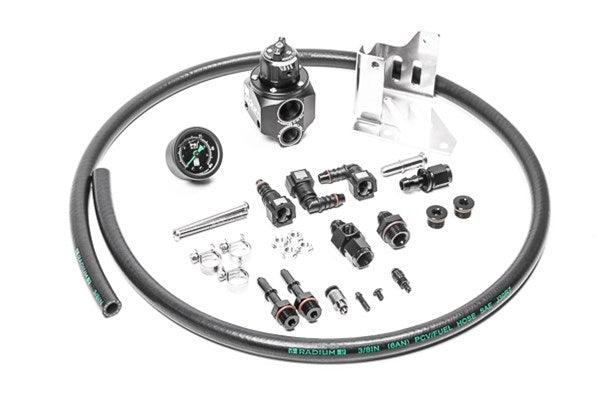

Kit Includes

• MPR-RA fuel pressure regulator and 0-100 psi fuel pressure gauge
• Stainless steel mounting bracket, anodized aluminum fittings, SAE quick connect fittings
• 6AN fuel hose, hose clamps, and hardware
• NOT included: the fuel pump hanger, fuel pumps, fuel rail, and injectors

Applications

• 1999-2005 Mazda MX-5 Miata NB, with the Radium 20-1020 fuel pump hanger or the OEM hanger

Important Notes

• A rapid fuel pressure drop after the pump shuts off is normal for aftermarket regulators of any brand and is not a defect; pressure resets immediately when the pump is activated again. Long cranking or slow pressure build while cranking points elsewhere, typically to feed hose drain-back from an internal pump module leak or a missing pump check valve
• Use a wicking medium-strength threadlocker when installing the vacuum fitting
