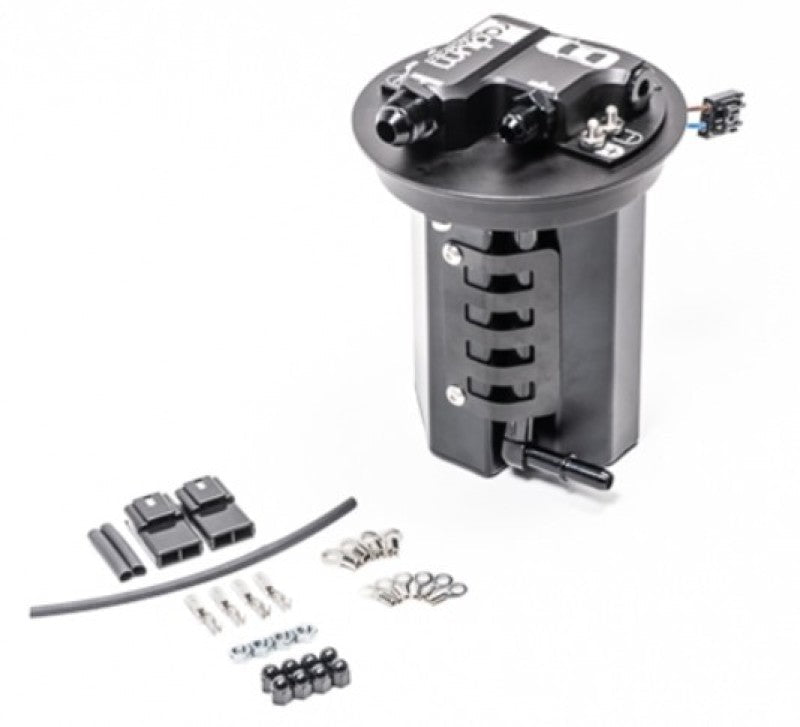

20-1073 2013-2021 BRZ / FR-S Radium Fuel Hanger For Walbro F90000267/274/285 - Pumps Not Included

The Radium Fuel Hanger For Walbro F90000267/274/285 - Pumps Not Included fits 2013-2021 BRZ/FR-S/86. Part number 20-1073.

Features

• Runs 1 or 2 pumps in the factory tank; 20-0573-00 fits Walbro F90000267/274/285 and brushless DW440, Fuelab 49614, Protec 11928
• 8AN ORB merged outlet with 8AN male pump-out fitting; 6AN ORB return with 6AN male fitting
• 1-piece anodized aluminum collector box with 1-way fill valve and venturi jet pump siphon
• High current electrical connections; anodized fuel level sender mount; stainless hardware and clamps
• Sock filters provided for the Walbro pumps; brushless pumps use their manufacturer-included socks
• Alternative fuel compatible including E85; pumps NOT included

Kit Includes

• 1x Fuel pump hanger assembly with collector box and venturi siphon
• 8AN pump-out and 6AN return fittings, sock filters (Walbro), electrical hardware
• Components for 1 or 2 pumps; fuel pumps NOT included

Applications

• 2013-2021 Subaru BRZ, Scion FR-S, Toyota 86 (FA20); GR86 per Radium's platform coverage
• 20-0573-00: Walbro F90000267/274/285; DW440, Fuelab 49614, Protec 11928 brushless (controllers required)
• Companion 20-0306 plumbing kit sold separately (manual transmissions only)
