20-1074 2022+ Subaru BRZ / Toyota GR86 Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits 2022+ Subaru BRZ / Toyota GR86. Part number 20-1074.

Features

• 1-piece anodized aluminum collector box with a 355 LPH 1-way fill valve that admits fuel but does not let it back out
• Venturi jet pump siphon
• 8AN ORB to 8AN male pump-out fitting
• 6AN ORB to 6AN male return fitting
• Single merged fuel pump outlet
• High current electrical connections
• Anodized fuel level sender mount
• Twin pump and brushless pump compatible
• Stainless hardware and clamps
• Alternative fuel compatible

Kit Includes

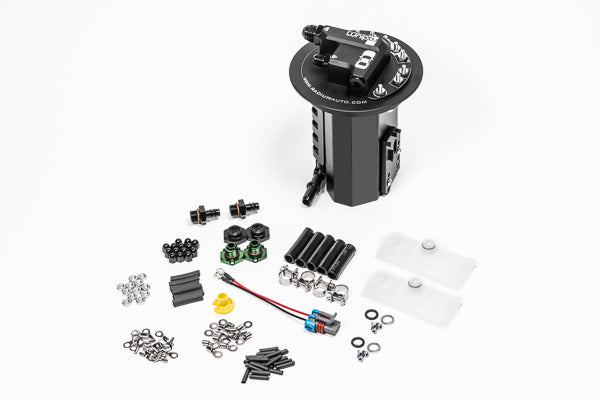

• Fuel pump hanger assembly with 1-piece collector box and 1-way fill valve
• 8AN ORB pump-out and 6AN ORB return fittings
• Electrical connections and anodized level sender mount
• Stainless hardware and clamps
• Components for one or two pump configurations
• NOT included: fuel pumps

Applications

• 2022 and newer Subaru BRZ
• 2022 and newer Toyota GR86

Important Notes

• Fuel pumps sold separately
• The 20-1074 is specific to 2022+ tanks; 12-21 GT86, 12-20 BRZ, and 12-16 FR-S require the 20-1073
