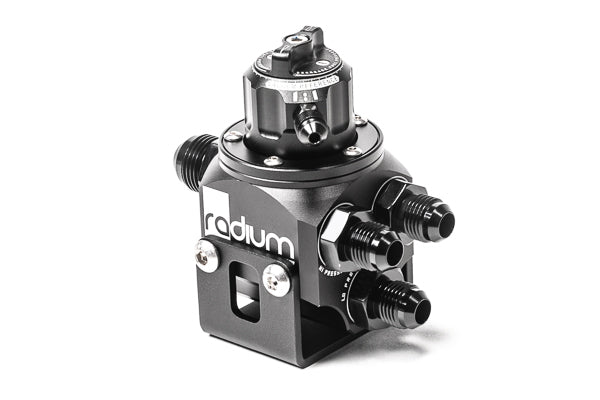

20-1100-00 Universal Radium Multi-Port Regulator

The Radium Engineering Multi-Port Regulator is a universal fitment component. Part number 20-1100-00.

Features

• Unique port configuration: merges dual pumps to one feed, splits one feed to dual rails, or runs single pump/single rail with ports plugged
• Two lower opposing return ports flowing parallel to the pressure ports; use either, plug the other

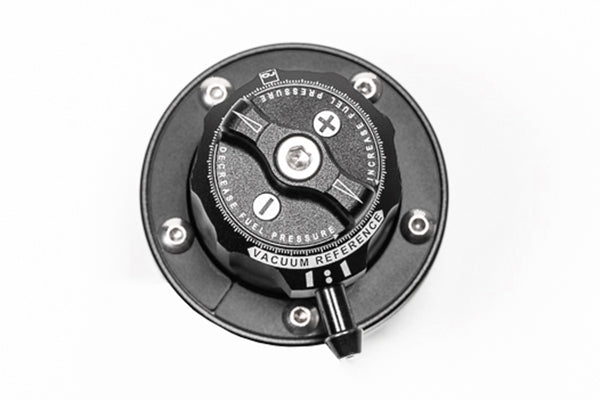

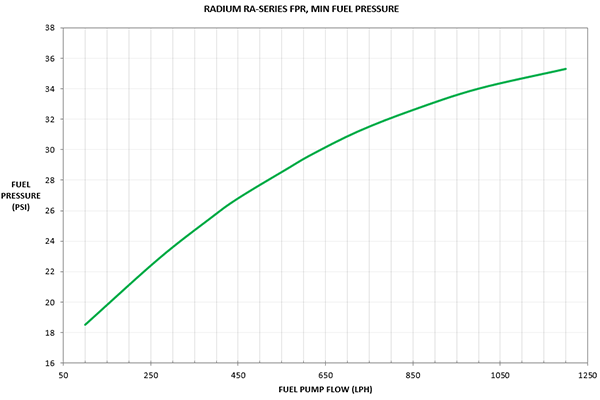

• RA-series tool-less pressure adjustment with 1 psi haptic detents; minimum pressure 18.5 psi (1.3 Bar), maximum limited only by pump relief or controller
• Single stainless steel return orifice generates laminar flow for enhanced stability
• 1:1 rising rate with 360 degree swiveling vacuum reference port; flow-through and dead-head plumbing supported
• M6 through-body mounting holes plus included floor bracket with M6x1mm hardware

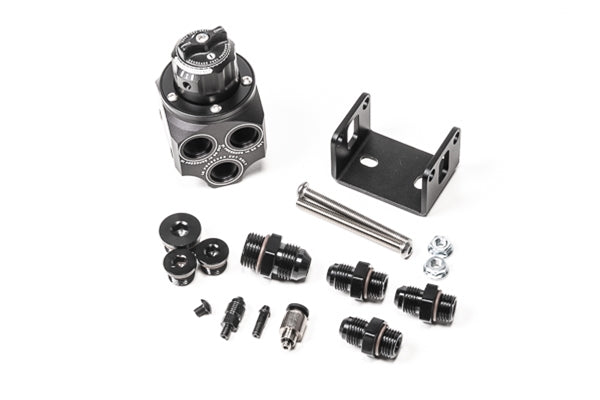

Kit Includes

• 1x MPR-RA main rotating assembly
• 1x Mounting bracket with M6x1mm hardware

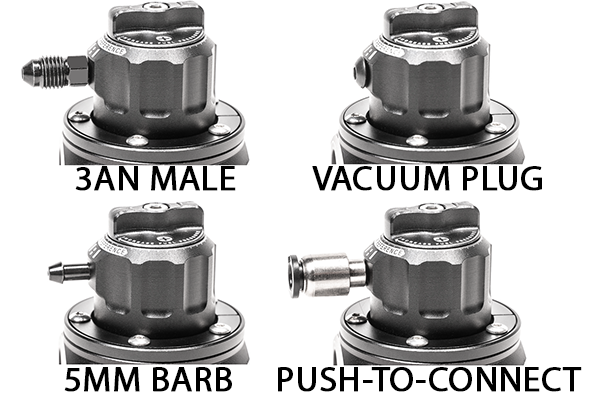

• Vacuum fittings: 5mm barb, 1/4" push-to-connect, 3AN male, and vacuum plug (returnless)
• 2x 6AN ORB plugs, 1x 8AN ORB plug
• 3x 6AN ORB to 6AN male adapters, 1x 8AN ORB to 8AN male adapter

Applications

• Universal: single pump, dual pump, single rail, and dual bank fuel systems
• Radium MPFST, FST, and multi-pump hanger systems; flow-through and dead-head architectures
• Minimum regulated pressure 18.5 psi; gasoline and ethanol fuels
