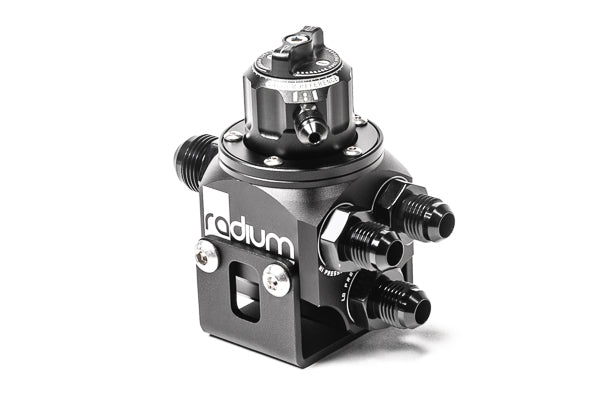

20-1100-01 Universal Radium MPR Multi-Port Fuel Pressure Regulator

The Radium MPR Multi-Port Fuel Pressure Regulator is a universal fitment component. Part number 20-1100-01.

Features

• RA-series tool-less pressure adjustment by knob
• 360 degree swiveling vacuum reference port, double O-ring sealed, with four interchangeable vacuum fittings
• 1:1 rising rate vacuum reference
• Lower opposing return ports flowing parallel with the pressure ports
• Minimum pressure 18.5psi (1.3bar); maximum depends on your pump setup
• Wall or floor mounting via M6 through-holes or the included bracket
• Compatible with all popular gasolines and ethanol blends

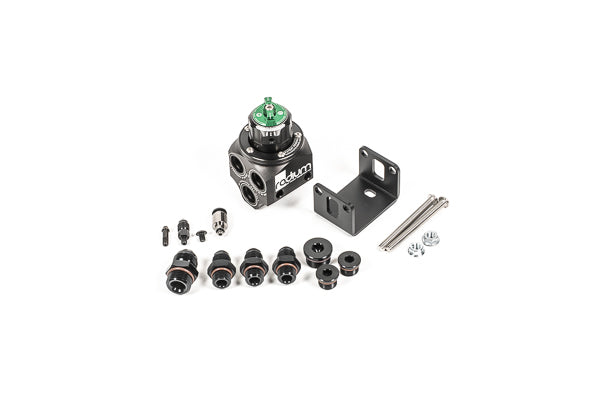

Kit Includes

• Main rotating assembly
• Mounting bracket with M6x1mm hardware
• Four vacuum fittings: 5mm barbed, vacuum plug (returnless), 1/4in push-to-connect, and 3AN male
• 6AN ORB plugs (x2) and 8AN ORB plug (x1)
• 6AN ORB to 6AN male adapters (x3) and 8AN ORB to 8AN male adapter (x1)

Applications

• Universal, any port injection EFI fuel system operating between 20 and 150psi
• Single and multi-pump systems, flow-through or dead-head
• Pairs with Radium vehicle specific FPR mounts

Important Notes

• For port injection EFI systems operating between 20 and 150psi
• Fuel lines sold separately
