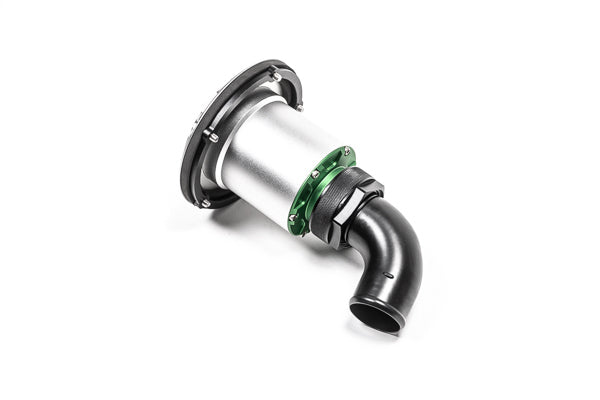

20-1104-V Universal Radium Remote Mount Vented Female Dry Break 1.5in Elbow

The Radium Remote Mount Vented Female Dry Break 1.5in Elbow is a universal fitment component. Part number 20-1104-V.

Features

• 1.5in female dry break receptacle in an aluminum remote housing
• 75 degree 24AN hose end with 1.5in barb, plus a 24AN b-nut and 1-7/8in wrench
• Vented fuel cap with roll-over protection
• Flange outer diameter 4.75in, bolt circle 4.25in PCD, requires a 77mm (3.03in) hole
• Threaded mounting ring, gasket, and stainless steel hardware

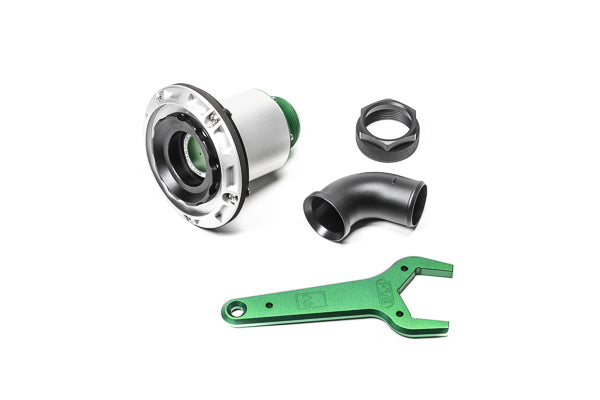

Kit Includes

• Remote mount housing and dry break receptacle
• 24AN adapter, 24AN wrench, 24AN b-nut, and 75 degree 1.5in barb
• Threaded mounting ring, gasket, and stainless steel hardware
• NOT included: male dry break probe, filler hose, and dust cap

Applications

• Universal remote mounting to an external panel such as a fender
• Connects to 1.5in ID or 24AN filler hose

Important Notes

• Requires a 77mm (3.03in) hole to be fabricated in the mounting surface
