20-1170 1990-1999 BMW E36 Including M3 Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits 1990-1999 BMW E36 Including M3. Part number 20-1170.

Features

• Drop-in replacement for both RH and LH fuel hat assemblies

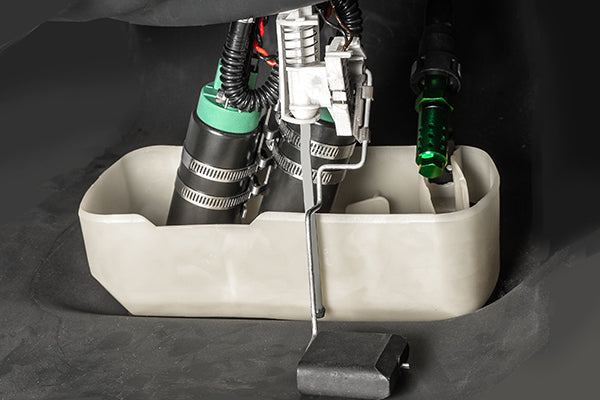

• Runs 1 or 2 aftermarket pumps, 2-wire brushed or 3-4 wire brushless

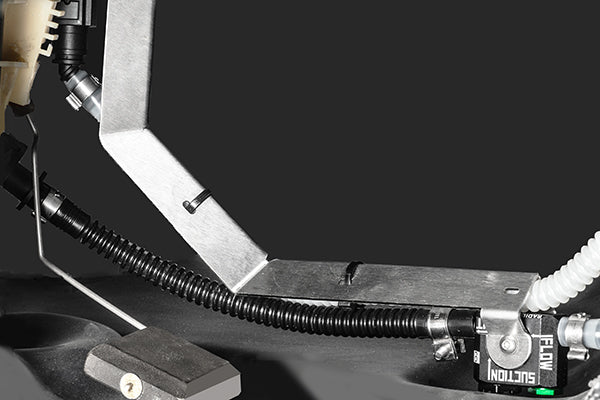

• PRV venturi jet pump siphon with built-in pressure relief valve
• Merged 10AN ORB (7/8in-14) female pump outlet with SAE quick connect barb for the OEM feed line
• 10AN ORB female return inlet with 8.5mm barbed adapter for the OEM return line
• Fittings machined low to clear the surrounding area
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring, fuel pump filter socks included
• Gas, methanol, and E85 compliant

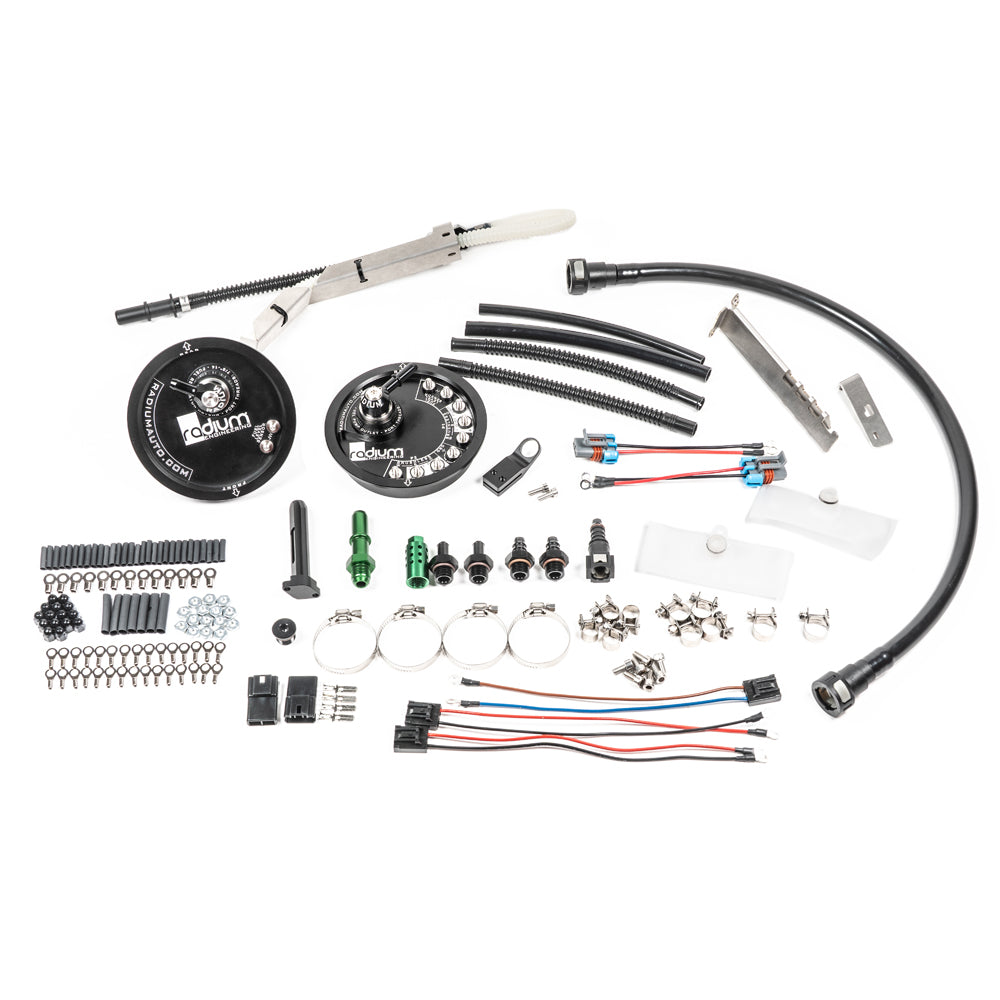

Kit Includes

• Hanger tops for both feed and return sides, partially assembled
• Complete new jet pump system
• All parts to install 1 or 2 compatible pumps, including filter socks
• Electrical parts kit for external wiring at the hanger top
• NOT included: fuel pumps and plumbing kit

Applications

• 90-99 BMW E36 316i, 90-98 318i, 92-98 318is, 91-98 320i, 95-98 323i, 91-95 325i, 95-98 328i
• 92-99 BMW E36 M3

Important Notes

• Compatible with OEM BMW (VDO) senders only; NOT compatible with aftermarket Bosch senders
• A second pump requires its own dedicated relay and fuse
