20-1180 1998-2006 BMW E46 Including M3 Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits 1998-2006 BMW E46 Including M3. Part number 20-1180.

Features

• Drop-in replacement for both RH and LH fuel hat assemblies
• Runs 1 or 2 aftermarket pumps, 2-wire brushed or 3-4 wire brushless

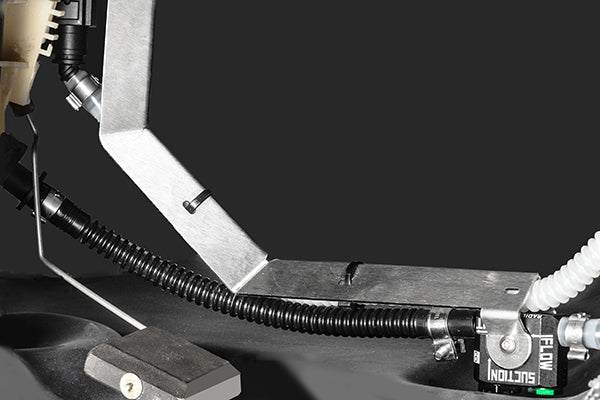

• PRV venturi jet pump siphon with built-in pressure relief valve
• Merged 10AN ORB (7/8in-14) female pump outlet with SAE quick connect barb for the OEM feed line
• 10AN ORB female return inlet with 8.5mm barbed adapter for the OEM return line
• Fittings machined low to clear the surrounding area
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring, fuel pump filter socks included
• Gas, methanol, and E85 compliant

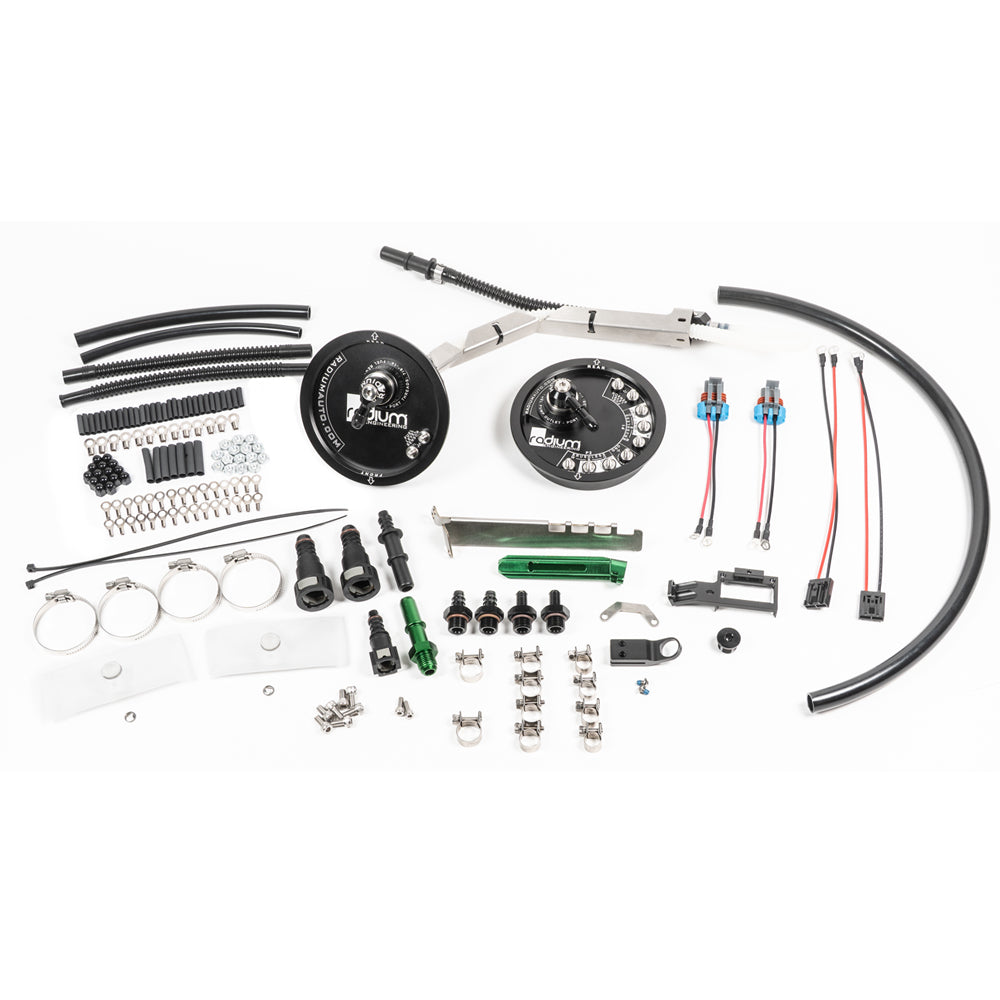

Kit Includes

• Hanger tops for both feed and return sides, partially assembled
• Complete new jet pump system
• All parts to install 1 or 2 compatible pumps, including filter socks
• Electrical parts kit for external wiring at the hanger top
• NOT included: fuel pumps and plumbing kit

Applications

• 99-05 BMW E46 316i, 98-06 318i, 98-06 320i, 98-00 323i, 01-06 325i, 98-00 328i, 00-06 330i, 03-06 330i ZHP
• 00-06 BMW E46 M3 and 03-04 M3 CSL

Important Notes

• Compatible with OEM BMW (VDO) senders only; NOT compatible with aftermarket Bosch senders
• A second pump requires its own dedicated relay and fuse
