20-1330 Mitsubishi Evo 1-6 Radium Fuel Pump Hanger

The Radium Fuel Pump Hanger fits Mitsubishi Evo 1-6. Part number 20-1330.

Features

• Single pump drop-in hanger for Evo 1 through 6
• Brushed and brushless pump capable, 2-wire, 3-wire, and 4-wire

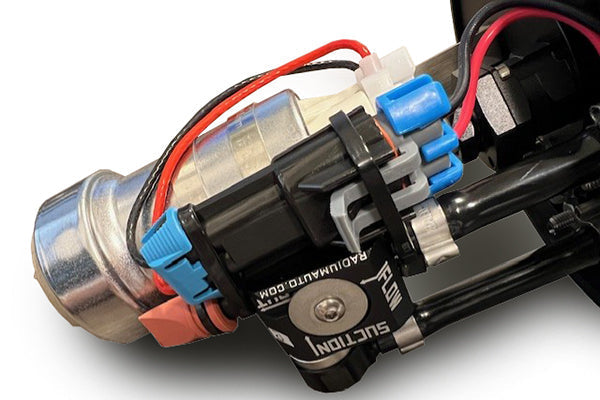

• High flow PRV venturi jet pump with built-in pressure relief valve
• 8AN ORB (3/4in-16) female pump outlet with low profile 8AN male fitting provided
• 6AN ORB (9/16in-18) female return inlet with low profile 6AN male adapter provided
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring
• Gasoline, methanol, and E85 compliant

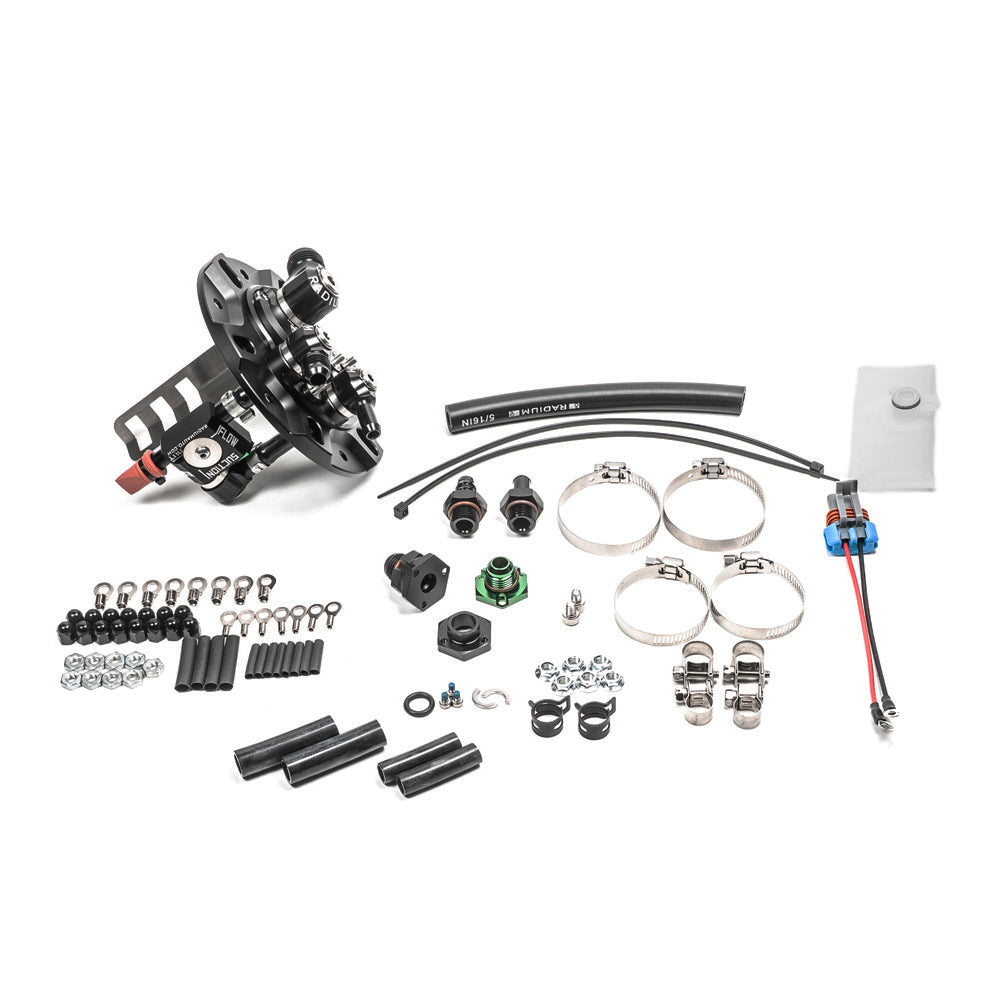

Kit Includes

• Partially assembled fuel pump hanger
• All components to install 1 compatible fuel pump
• Electrical hardware kit for external wiring atop the hanger
• Low profile 8AN and 6AN fittings
• NOT included: fuel pump, connection kit, and plumbing kit

Applications

• Mitsubishi Lancer Evolution I, II, III, IV, V, and VI

Important Notes

• A fuel hanger connection kit is required to reach the OEM hard lines: 20-1331 for Evo 1-5, or 20-1332 for Evo 6
• Verified pumps include AEM 50-1220, Walbro F90000267/274/285/295, Protec 11928, Fuelab 49614, and Deatschwerks DW400, DW440, and DW810
