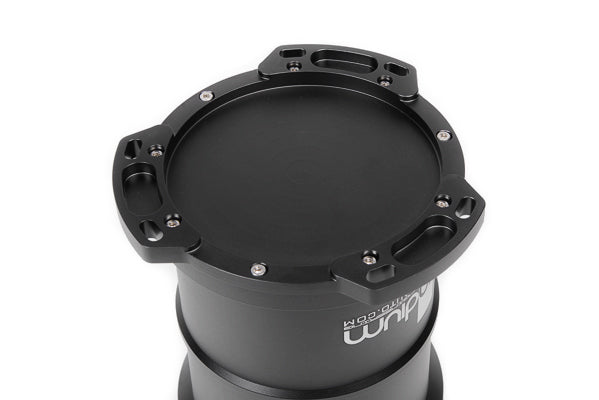

20-144X Universal Radium Multi-Pump Fuel Surge Tank - MPFST

The Radium Multi-Pump Fuel Surge Tank - MPFST is a universal fitment component. Part number 20-144X.

Features

• Houses 1, 2, or 3 fuel pumps per configuration: 20-1440 (Walbro GSS342, AEM 50-1200, DW440), 20-1441 (Bosch BR540, DW400), 20-1442 (Walbro F90000267/274/285), 20-0443-00 (up to 2 Ti Automotive E5LM brushless)

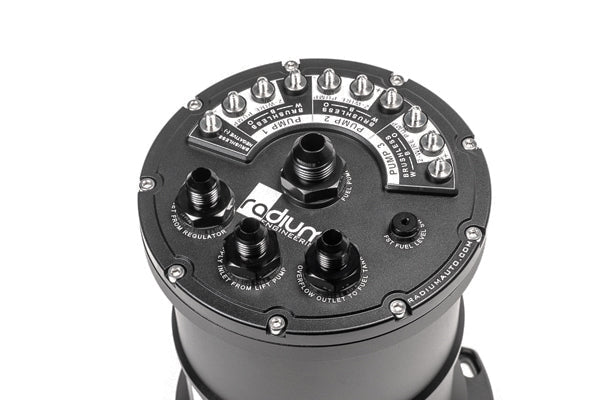

• FUEL PUMP OUTLET port is 10AN ORB with pre-installed 8AN male adapter; OVERFLOW, SUPPLY, and RETURN ports are 8AN ORB with pre-installed 6AN male adapters (interchangeable, alternatives sold separately)
• Tangential SUPPLY/RETURN flow creates a swirl pot that eliminates air bubbles and fuel foam

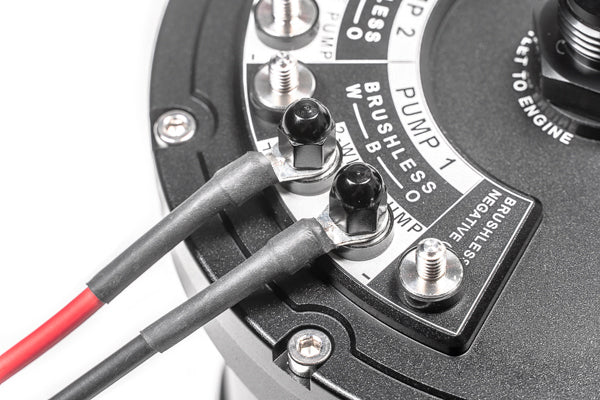

• Anti-rotation high-current electrical studs with dedicated power wiring per pump; ring terminals, heat shrink, and hardware included

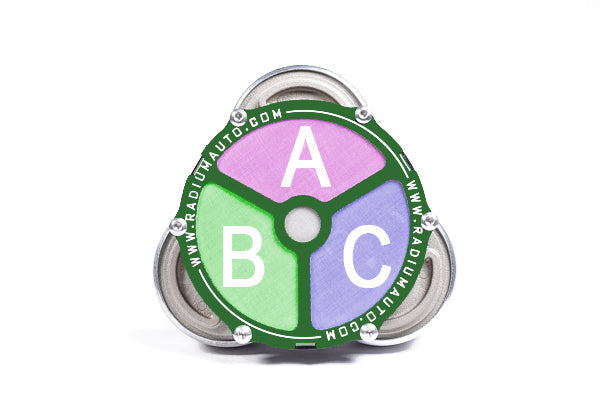

• Internal wiring compliant with gasoline, ethanol, and methanol; stainless mesh inlet screen (E5LM version uses a press-in filter sock)
• Optional fuel level switch port (2AN ORB, plugged) signals when level drops 20% or more; switch sold separately

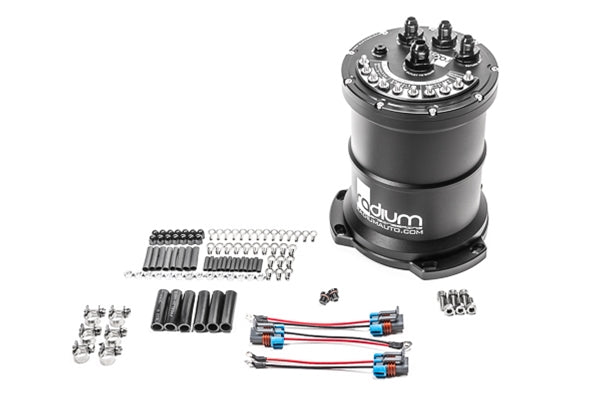

Kit Includes

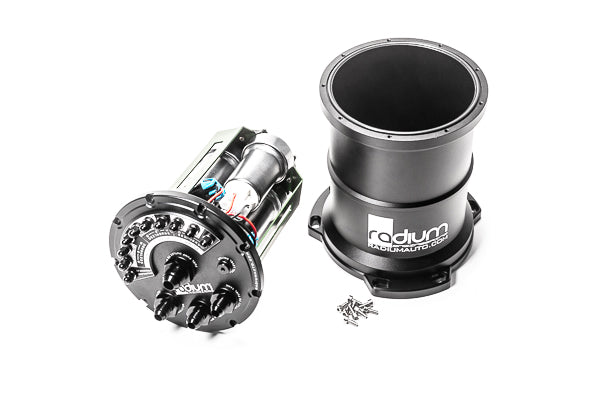

• 1x MPFST canister assembly in selected pump configuration
• Pre-installed adapter fittings: 8AN male on outlet, 6AN male on overflow, supply, and return

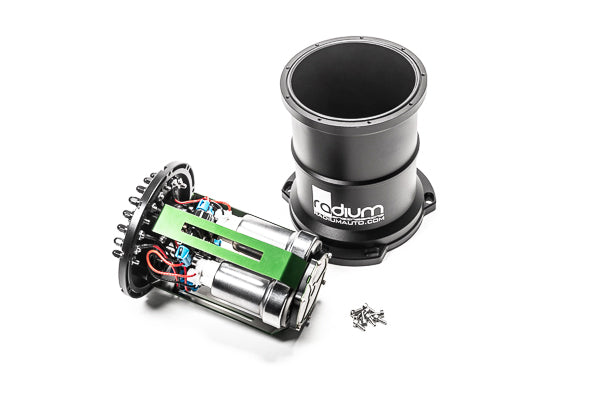

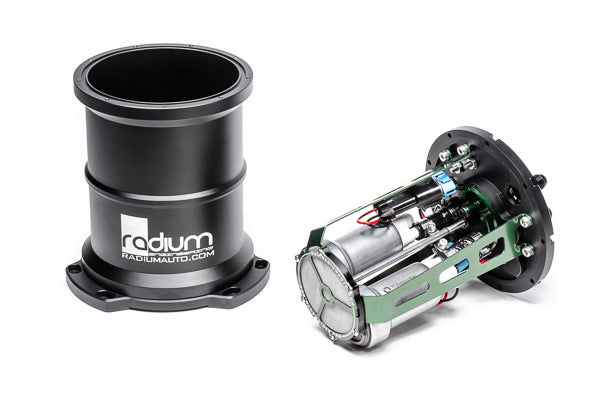

• Anodized aluminum pump mounting bracket and stainless mesh inlet screen (or press-in sock, E5LM version)

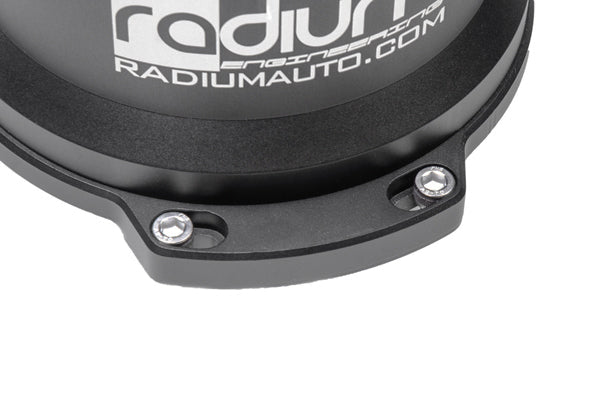

• Ring terminals, heat shrink, and stainless M6x1.0mm mounting bolts
• Fuel pumps NOT included, sold separately

Applications

• Universal: vehicles with inadequate tank baffling, track cars, and high-power builds needing multi-pump fueling
• 20-1440: Walbro GSS342, AEM 50-1200, DeatschWerks DW440 (1-3 pumps)
• 20-1441: Bosch BR540, DeatschWerks DW400 (1-3 pumps)
• 20-1442: Walbro F90000267, F90000274, F90000285 (1-3 pumps)
• 20-0443-00: Ti Automotive E5LM brushless (1-2 pumps)
