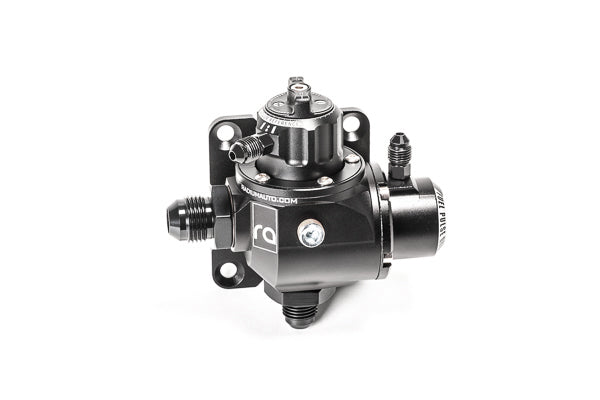

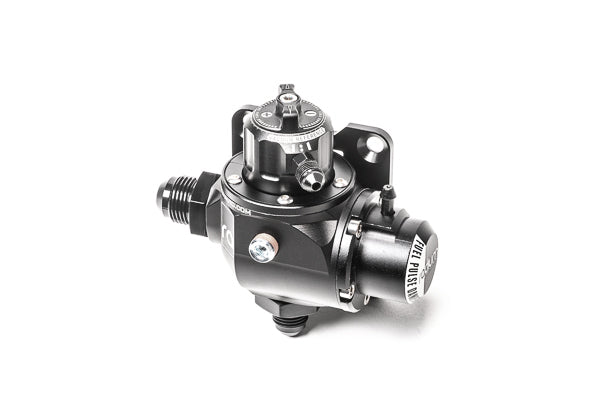

20-1528-01 Universal Radium FPR-D Fuel Pressure Regulator Damper

The Radium FPR-D Fuel Pressure Regulator Damper is a universal fitment component. Part number 20-1528-01.

Features

• RA-series adjustable regulator with integrated pulse damper
• Single stainless steel return orifice generating laminar flow for stability control
• 10AN ORB (7/8in-14) inlet (side) and outlet (bottom) ports
• 1/8in NPT auxiliary port for a pressure gauge, with plug included
• Two M6x1mm threaded mounting holes plus laser cut anodized mounting plate
• 360 degree swiveling vacuum reference port, double O-ring sealed
• Minimum pressure 18.5psi (1.3bar); maximum limited by your pump's relief valve or controller
• Green anodized adjustment knob
• Suits all gasoline types plus methanol, ethanol, and E85

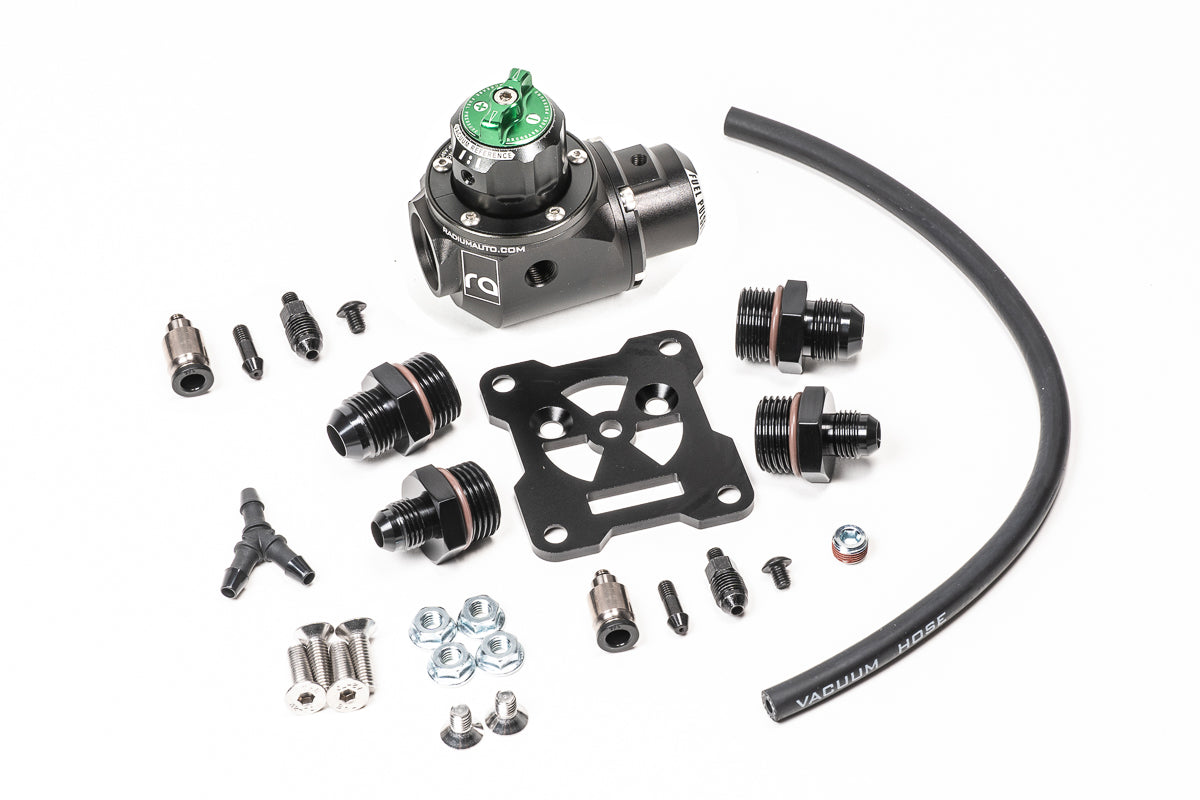

Kit Includes

• Main rotating assembly with damper
• Mounting bracket with M6x1mm hardware
• 5mm barbed vacuum fittings (x2), vacuum plug fittings (x2), 1/4in push-to-connect fittings (x2), 3AN male vacuum fittings (x2)
• 6AN male adapters (x2) and 8AN male adapters (x2)
• 1/8in NPT port plug
• Vacuum hose Y-adapter and 5/32in ID vacuum hose

Applications

• Universal, any EFI fuel system with a return line

Important Notes

• Cannot be used in a dead-head fuel system; must be plumbed after the fuel rail. Use the MPR for dead-head plumbing.
• Dampers CANNOT be used with mechanical fuel pumps or direct injection. Those create pressure pulses too strong for the diaphragm and will rupture it in short order.
• Damper base static pressure requirement: 40 to 105psi
• Use a wicking medium-strength thread locker on the vacuum fitting
