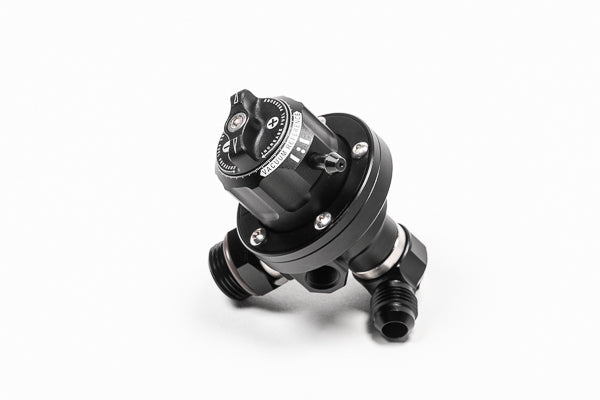

20-1623-00 Universal Radium Direct Mount Regulator DMR-RA

The Radium Engineering Direct Mount Regulator DMR-RA is a universal fitment component. Part number 20-1623-00.

Features

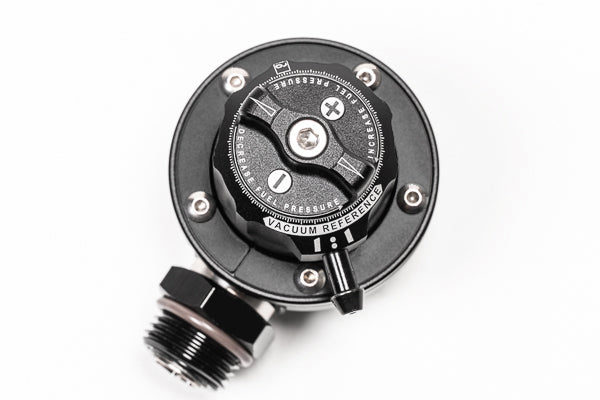

• Compact adjustable EFI regulator with tool-less detent knob adjustment, approximately 1 psi (+/- 0.5 psi) per detent
• Included 360-degree swiveling adapter mounts the regulator to any compatible 8AN ORB rail port; remote mounting available with kit 20-0624 (sold separately)
• 6AN ORB female main inlet port and 6AN ORB bottom return port with included 360-degree swiveling 90-degree 6AN male return fitting
• Two 1/8" NPT side ports for a gauge, transducer, or temperature probe, with two PTFE-impregnated plugs provided
• Single stainless steel return orifice generates laminar flow for enhanced pressure stability
• Compatible with all gasoline types plus methanol, ethanol, and E85

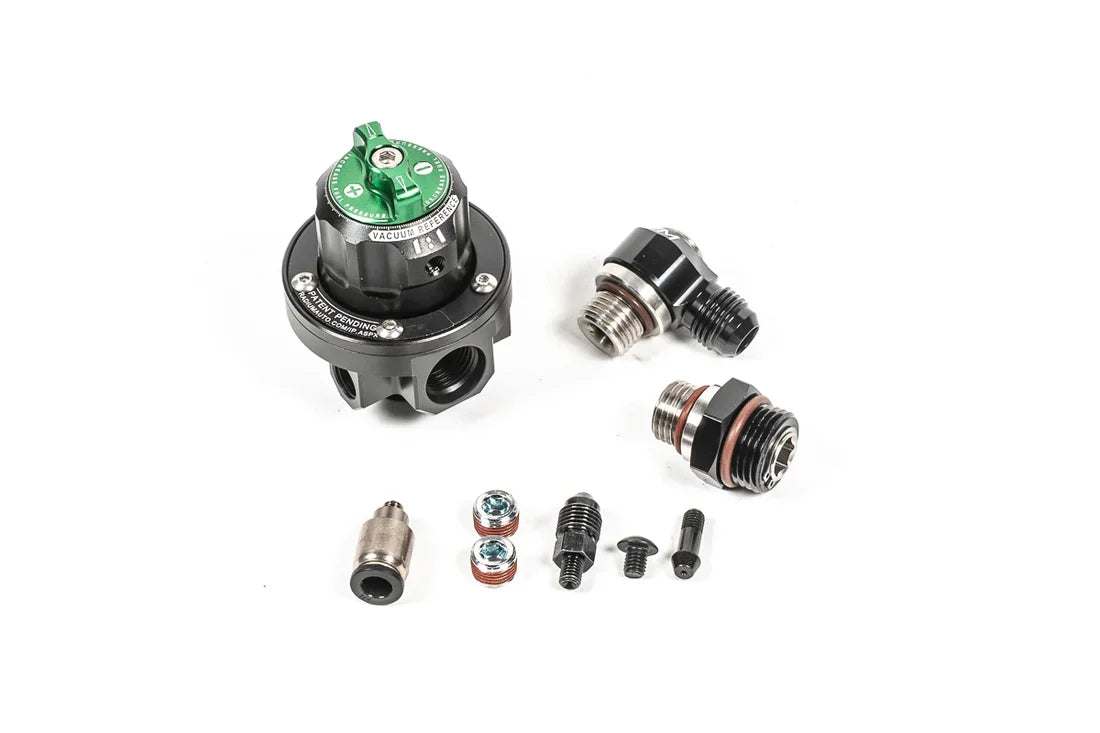

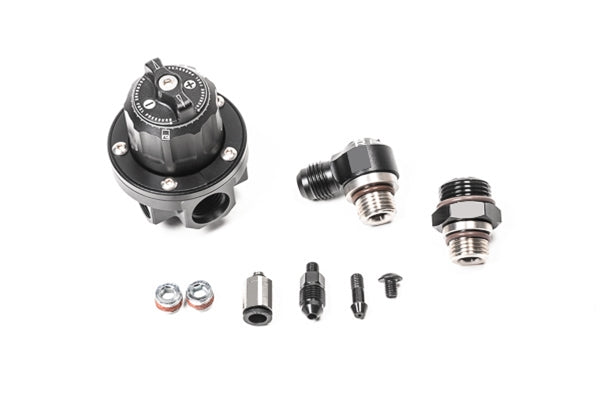

Kit Includes

• 1x Main rotating assembly regulator (black or green per selection)
• 1x Swiveling inlet fitting for 8AN ORB fuel rails
• 1x 6AN male swivel return fitting

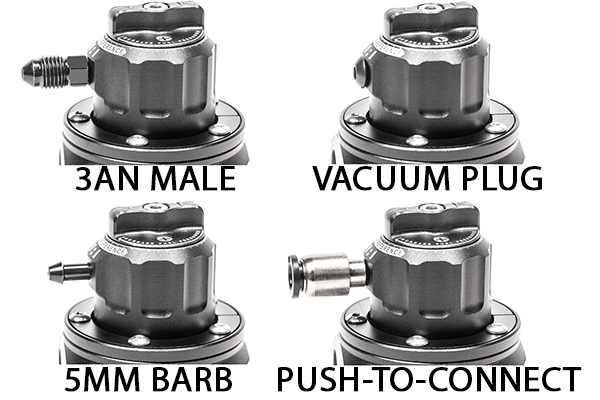

• 1x 5mm barbed vacuum fitting, 1x 1/4" push-to-connect vacuum fitting, 1x 3AN male vacuum fitting, 1x vacuum plug (returnless)
• 2x PTFE-impregnated 1/8" NPT plugs

Applications

• Universal: EFI fuel systems, single or multiple pumps

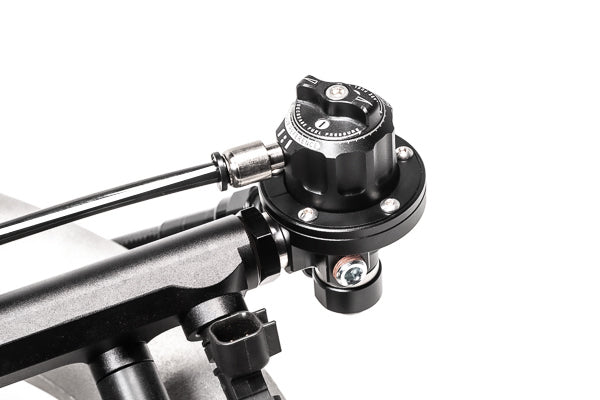

• Direct mount on any compatible 8AN ORB fuel rail port, including all Radium fuel rails
• 6AN ORB and 10AN ORB rails via port adapters, remote mounting via kit 20-0624 (each sold separately)
