20-1820 2009-2020 Nissan 370Z Radium Fuel Hanger Surge Tank

The Radium Fuel Hanger Surge Tank fits 2009-2020 Nissan 370Z. Part number 20-1820.

Features

• Fully functional surge tank integrated into the OEM fuel tank, working with the factory hanger as the lift stage
• Supports 1 or 2 surge pumps with 1:1 regulated fuel supply to the engine
• Configurations: 20-1820 (Walbro GSS342, AEM 50-1200), 20-1821 (Ti Automotive brushless, with two bolt-on check valves for staging and pressure hold), 20-1822 (Walbro F90000267/274/285)
• Optional FPR block-off (20-0806, sold separately) converts the built-in regulator dead-head system to return style with an external regulator, using the return port in the hanger top plate
• Comprehensive kit: pressure gauge, external fuel hose, fittings, electrical fuse, and relay included
• No grinding, bending, or modification of vehicle sheet metal

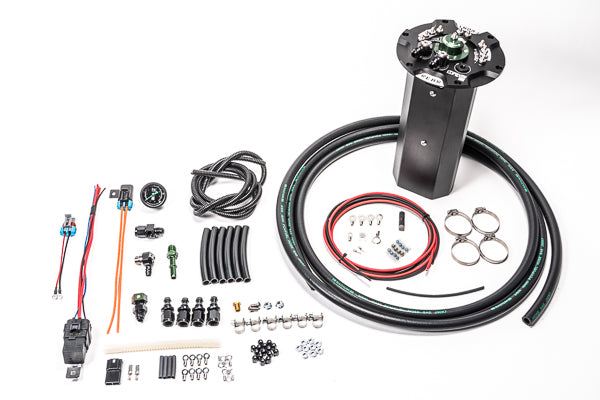

Kit Includes

• 1x Partially assembled FHST in selected pump configuration
• Plumbing components for 1 or 2 surge tank pumps
• Fuel pressure gauge, external fuel hose, and fittings
• Electrical fuse, relay, and configuration-matched connectors
• 2x Bolt-on check valves (20-1821 brushless version)
• Fuel pumps NOT included, sold separately

Applications

• 2009-2020 Nissan 370Z (Z34, right or left hand drive)
• 20-1820: Walbro GSS342 or AEM 50-1200 surge pumps
• 20-1821: Ti Automotive brushless surge pumps
• 20-1822: Walbro F90000267, F90000274, or F90000285 surge pumps
