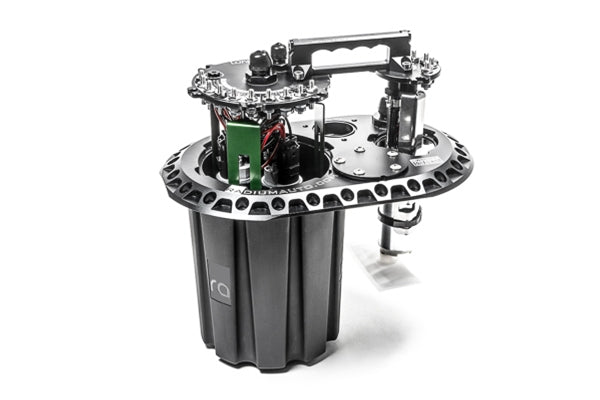

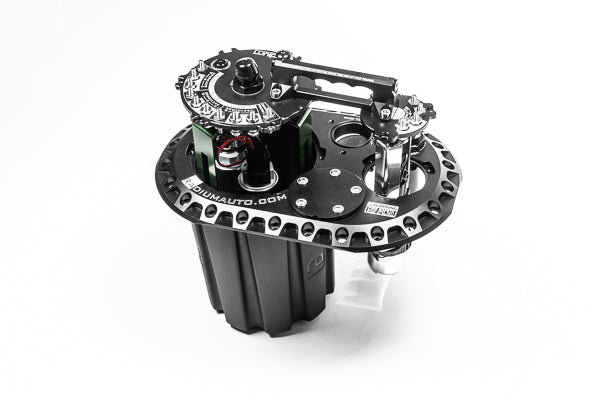

20-199X Universal Radium Fuel Cell Surge Tank X - FCST-X

The Radium Engineering Fuel Cell Surge Tank X - FCST-X is a universal fitment component. Part number 20-199X.

Choose Your Version

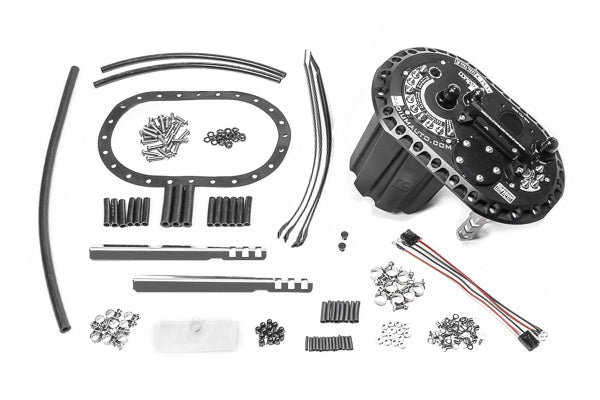

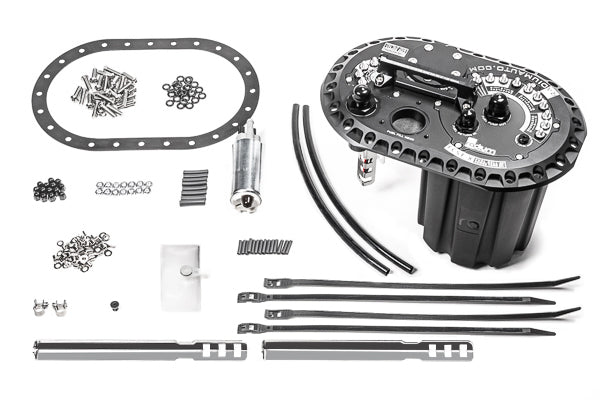

• Walbro GSS342 / AEM 50-1200 / DW440 family: bare unit 20-1990-00 (no pumps), or preassembled with Walbro GSS342 pumps as 20-1990-01 (1 surge + 1 lift), 20-1990-02 (2 surge + 1 lift), 20-1990-03 (3 surge + 1 lift)

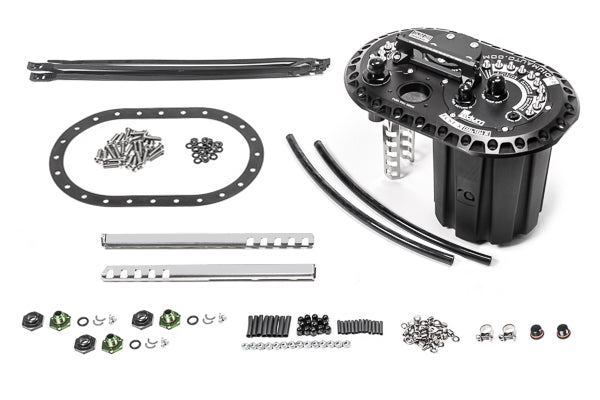

• Bosch BR540 / DW400 family: bare unit 20-1991-00 (no pumps)

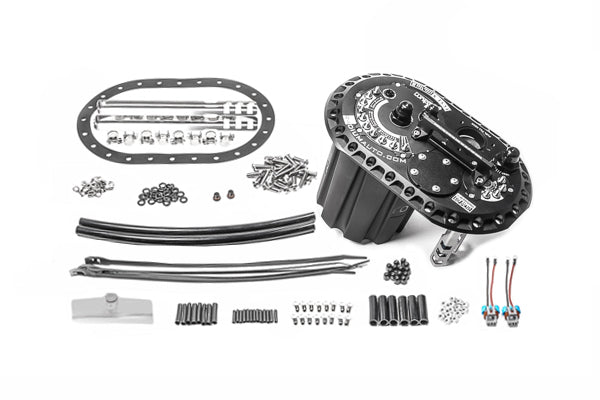

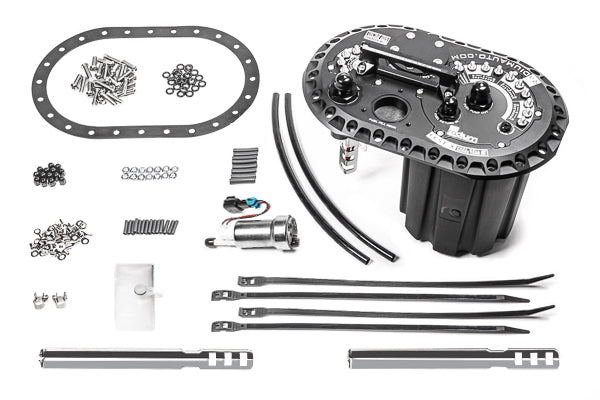

• Walbro F90000267/274/285 family: bare unit 20-1992-00 (no pumps), or preassembled with Walbro F90000274 pumps as 20-1992-01 (1 surge + 1 lift), 20-1992-02 (2 surge + 1 lift), 20-1992-03 (3 surge + 1 lift)
• Brushless Ti Automotive E5LM: bare unit 20-1993-00 (no pumps)

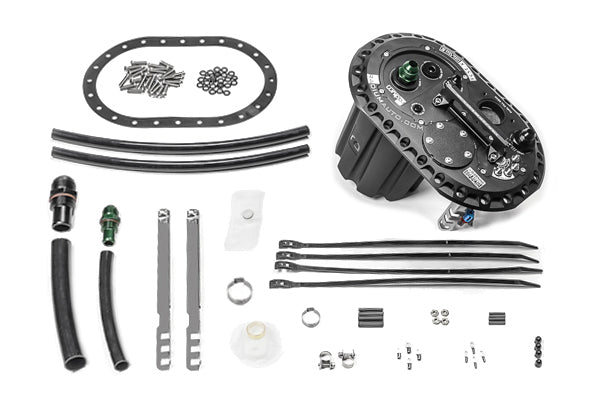

• External pump builds: 20-1995-00, with filtered 10AN and 16AN surge tank pickups feeding inline electric or mechanical pumps; internal lift pump still required, sold separately

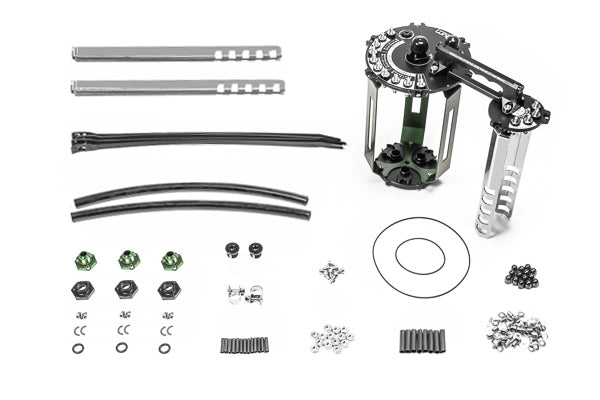

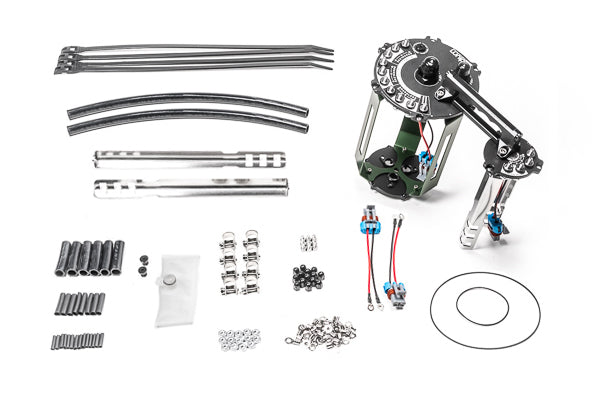

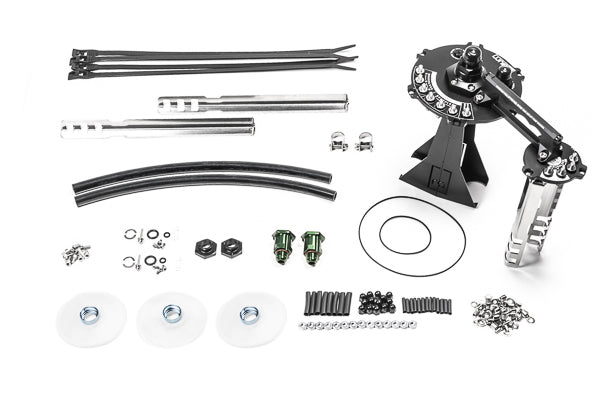

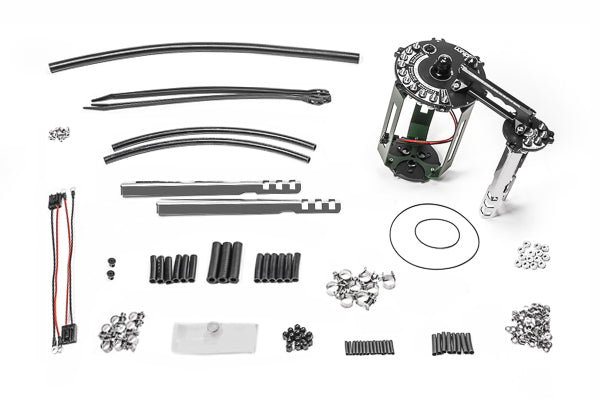

• Spare drop-in pump modules for pit stop swaps: 20-1996 (GSS342 / AEM / DW440), 20-1997 (BR540 / DW400), 20-1998 (Walbro F9000 series), 20-1999 (Ti E5LM brushless); pumps not included

Features

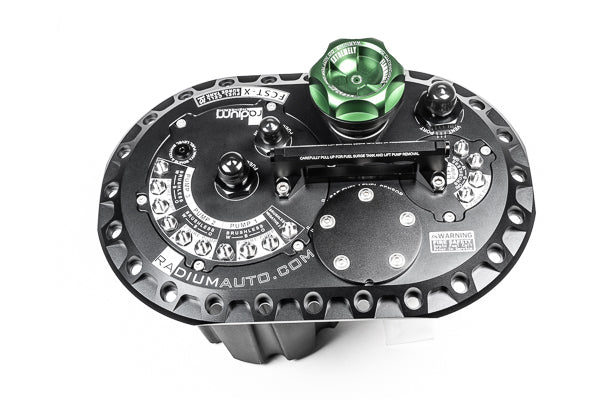

• 2.6L lightweight surge tank (up from 2.2L) with anti-rotation pump provisions and easily swappable pump modules (sold separately)
• Fast lift and surge pump access via 9 total bolts, with integrated lift handle
• Pump support by version: up to 4 Bosch BR540/DW400, up to 4 brushless DW440, up to 3 Ti E5LM (check valves included on E5LM surge version), up to 3 surge + 1 lift GSS342/AEM 50-1200 or Walbro 450-series
• Compatible with 16AN inlet mechanical pumps and shrouded level sensors
• Fuel level sender block-off standard (SAE senders sold separately); 2AN ORB level switch port preinstalled with plug
• Preassembled variants include new pumps and filters installed; bare variants include components for up to 3 surge pumps

Kit Includes

• 1x FCST-X fuel cell surge tank assembly in the selected pump-compatibility version
• Preassembled variants: 1, 2, or 3 new surge pumps plus matched lift pump with filters installed
• Bare variants: pump provisions and components for up to 3 surge pumps; pumps sold separately
• Fuel level sender block-off plate and 2AN ORB level switch plug preinstalled
• Spare module variants (20-1996 through 20-1999): lift and surge pump module assembly only; pumps and the FCST-X itself sold separately

Applications

• Universal: Radium fuel cells and compatible fuel cell installations for competition and high-performance use
• 20-1990: Walbro GSS342 / AEM 50-1200 / DW440; 20-1991: Bosch BR540 / DW400; 20-1992: Walbro F90000267/274/285; 20-1993: brushless Ti E5LM
• 20-1995-00: external inline electric or mechanical pump builds; 20-1996 through 20-1999: spare drop-in modules matching each pump family
• Pairs with Radium SAE level senders and the fuel level switch/indicator, sold separately

Important Notes

• Bosch BR540 and DW400 pumps have no built-in check valves, so multiple surge pumps must run together rather than staged
• Ti Automotive E5LM pumps require brushless controllers, typically bundled with the pump (see Ti BKS1001)
• The 16AN pickup on 20-1995-00 requires an external filter; the included 80 micron filters cover the 10AN pickups only
• Fuel cell must have the industry standard 6x10 inch 24-bolt top flange with at least 7.7 inches (196mm) internal depth; cells deeper than 12.7 inches (323mm) need Radium lift pump mounts, sold separately
