By Radium Engineering
2002-2007 Subaru WRX/STI & 1994-1999 Legacy Radium Fuel Pump Hanger
Regular price
$598.45
Regular price
$629.95
Sale price
$598.45
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-0340-00
Tags:
- 1989 Subaru Legacy,
- 1990 Subaru Legacy,
- 1991 Subaru Legacy,
- 1992 Subaru Legacy,
- 1993 Subaru Impreza,
- 1993 Subaru Legacy,
- 1994 Subaru Impreza,
- 1994 Subaru Legacy,
- 1994 Subaru Outback,
- 1995 Subaru Impreza,
- 1995 Subaru Legacy,
- 1995 Subaru Outback,
- 1996 Subaru Impreza,
- 1996 Subaru Legacy,
- 1996 Subaru Outback,
- 1997 Subaru Forester,
- 1997 Subaru Impreza,
- 1997 Subaru Legacy,
- 1997 Subaru Outback,
- 1998 Subaru Forester,
- 1998 Subaru Impreza,
- 1998 Subaru Legacy,
- 1998 Subaru Outback,
- 1999 Subaru Forester,
- 1999 Subaru Impreza,
- 1999 Subaru Legacy,
- 1999 Subaru Outback,
- 2000 Subaru Forester,
- 2000 Subaru Impreza,
- 2001 Subaru Forester,
- 2001 Subaru Impreza,
- 2002 Subaru Forester,
- 2002 Subaru Impreza,
- 2002 Subaru WRX,
- 2003 Subaru Forester,
- 2003 Subaru Forester XS,
- 2003 Subaru Impreza,
- 2003 Subaru WRX,
- 2004 Subaru Forester,
- 2004 Subaru Forester XS,
- 2004 Subaru Forester XT,
- 2004 Subaru Impreza,
- 2004 Subaru WRX,
- 2004 Subaru WRX STI,
- 2005 Saab 9-2X,
- 2005 Subaru Forester,
- 2005 Subaru Forester XS,
- 2005 Subaru Forester XT,
- 2005 Subaru Impreza,
- 2005 Subaru WRX,
- 2005 Subaru WRX STI,
- 2006 Saab 9-2X,
- 2006 Subaru Forester,
- 2006 Subaru Forester XT,
- 2006 Subaru Impreza,
- 2006 Subaru WRX,
- 2006 Subaru WRX STI,
- 2007 Subaru Forester,
- 2007 Subaru Forester XT,
- 2007 Subaru Impreza,
- 2007 Subaru WRX,
- 2007 Subaru WRX STI,
- 2008 Subaru Forester,
- 2008 Subaru Forester XT,
- 2009 Subaru Forester,
- 2009 Subaru Forester XT,
- Exhaust Hangers & Mounts,
- flow-backfill,
- In Stock,
- Radium Engineering,
- Saab,
- Subaru
Collections:
Regular price
$598.45
Regular price
$629.95
Sale price
$598.45
Radium Fuel Pump Hanger. Fitment: 2002-2007 Subaru WRX/STI & 1994-1999 Legacy. Available part numbers: 20-0340-00, 2-00.
Features

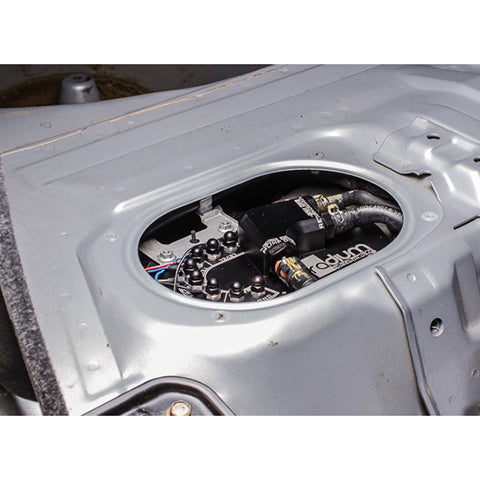

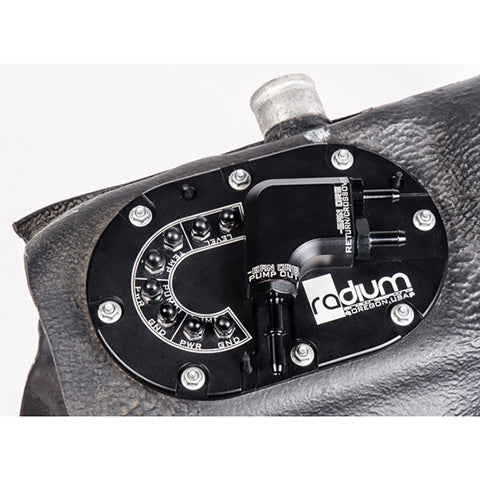

- CNC machined aluminum, laser etched and anodized; drops into the factory tank with the OEM gasket and hardware
- 1 or 2 pumps merging into a single 8AN ORB outlet; 6AN ORB crossover and return ports

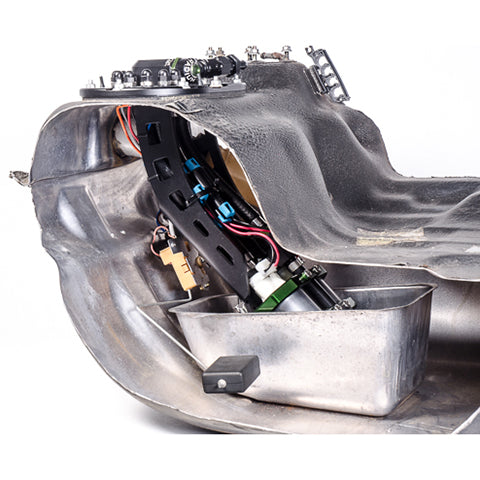

- Streamlined anodized collector box with 355 lph one-way fill valve, optimized to work in ALL compatible gas tanks (unlike the 04-07 STI OEM variation)

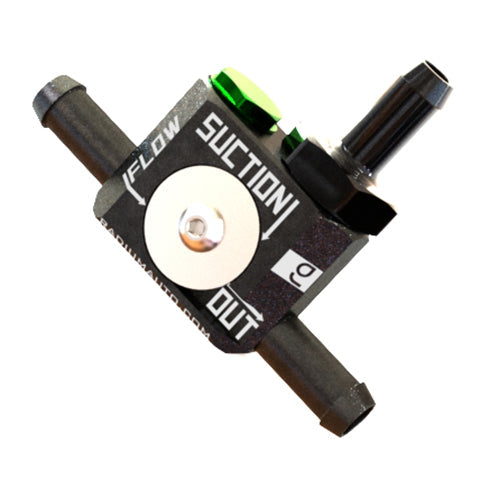

- Venturi jet pump with integrated pressure relief valve, optimized for high flow pumps

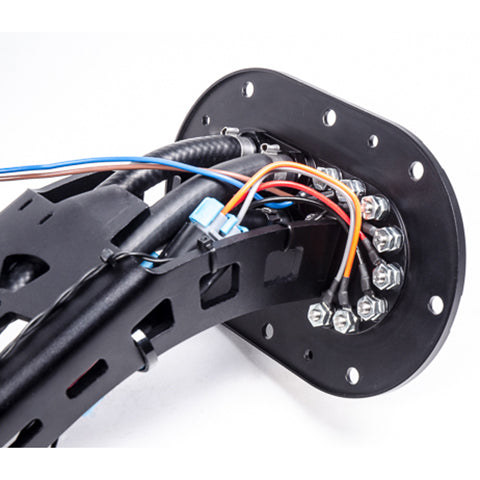

- ETFE insulated in-tank wiring, sealed stainless studs, non-conductive acorn nuts, stainless crimp terminals and heat shrink for external connections
- E85 compatible; OEM hose adapter fittings for all listed model years included

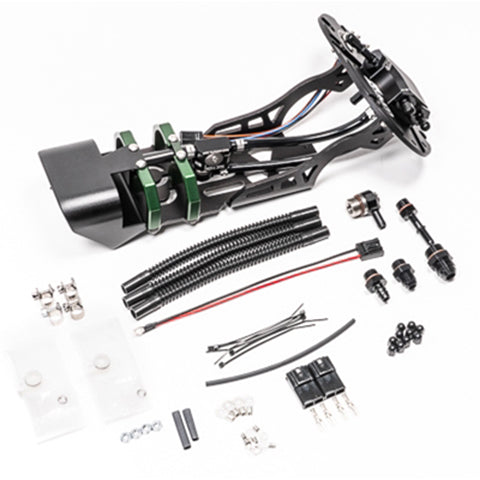

Kit Includes
- 1x Fuel pump hanger with anodized laser etched plate, collector box with check valve, and venturi jet pump with PRV
- OEM hose adapter fittings for all listed model years (barb and SAE quick disconnect styles) plus 6AN male fittings
- Electrical hardware: sealed stainless studs, ETFE wiring, crimp terminals, heat shrink
- Stainless steel hardware; fuel pumps NOT included
Applications
- 1993-2007 Subaru Impreza including 2002-2007 WRX and 2004-2007 STI
- 1997-2008 Subaru Forester, 1989-1999 Legacy, 1994-1999 Outback, 2005-2006 Saab 9-2X

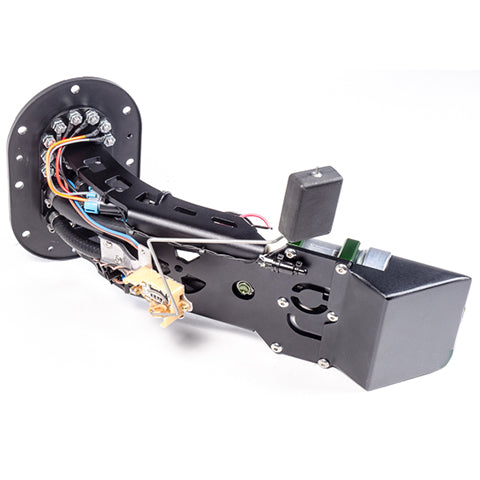

- 20-0340-00: Walbro GSS342, AEM 50-1200 class; 20-0342-00: Walbro F90000267/274/285
- NOT compatible with JDM WRX STI Spec C
